JLG X23J-2 X23J-3 X23JA-2 X700AJ-2 X700AJ-3 Illustrated Parts Manual Compact Crawler Boom Lift 31217111 manuals in PDF

Factory Illustrated Parts Manual For JLG Compact Crawler Boom Lift. Detailed Illustrations And Parts Lists.

Format: PDF
Language: ITA; ENG; FRA; GER; ESP
Pages: 226
Number: 31217111 (October 2019)
Searchable: Yes

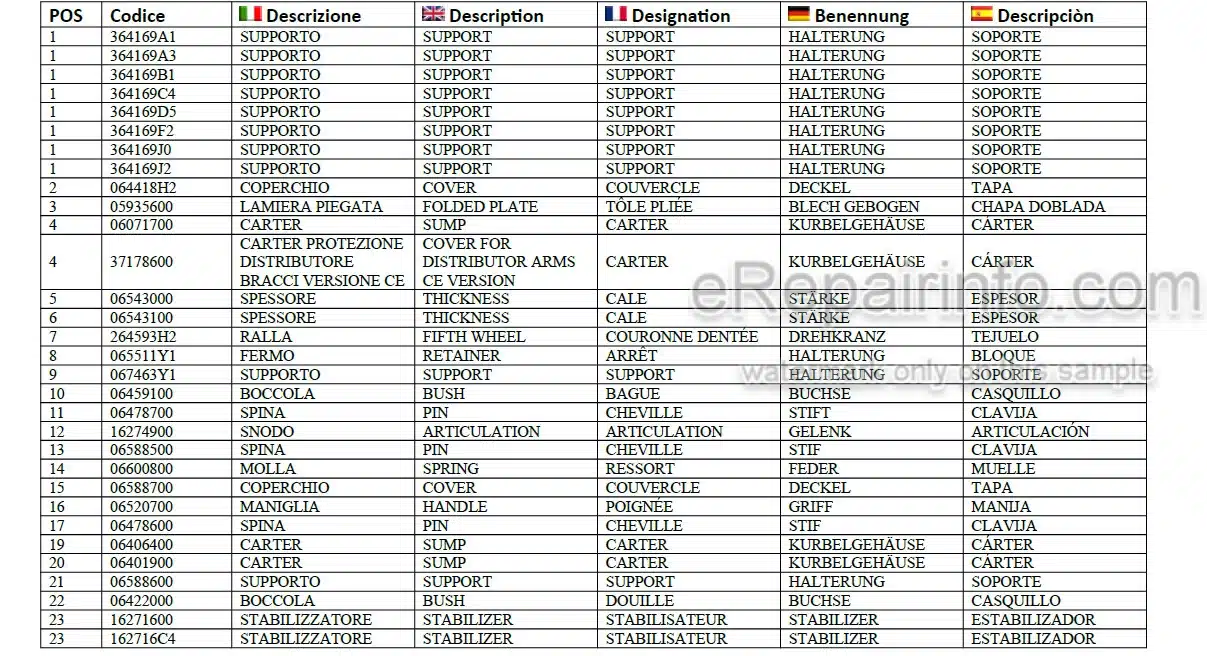

Parts List: Yes

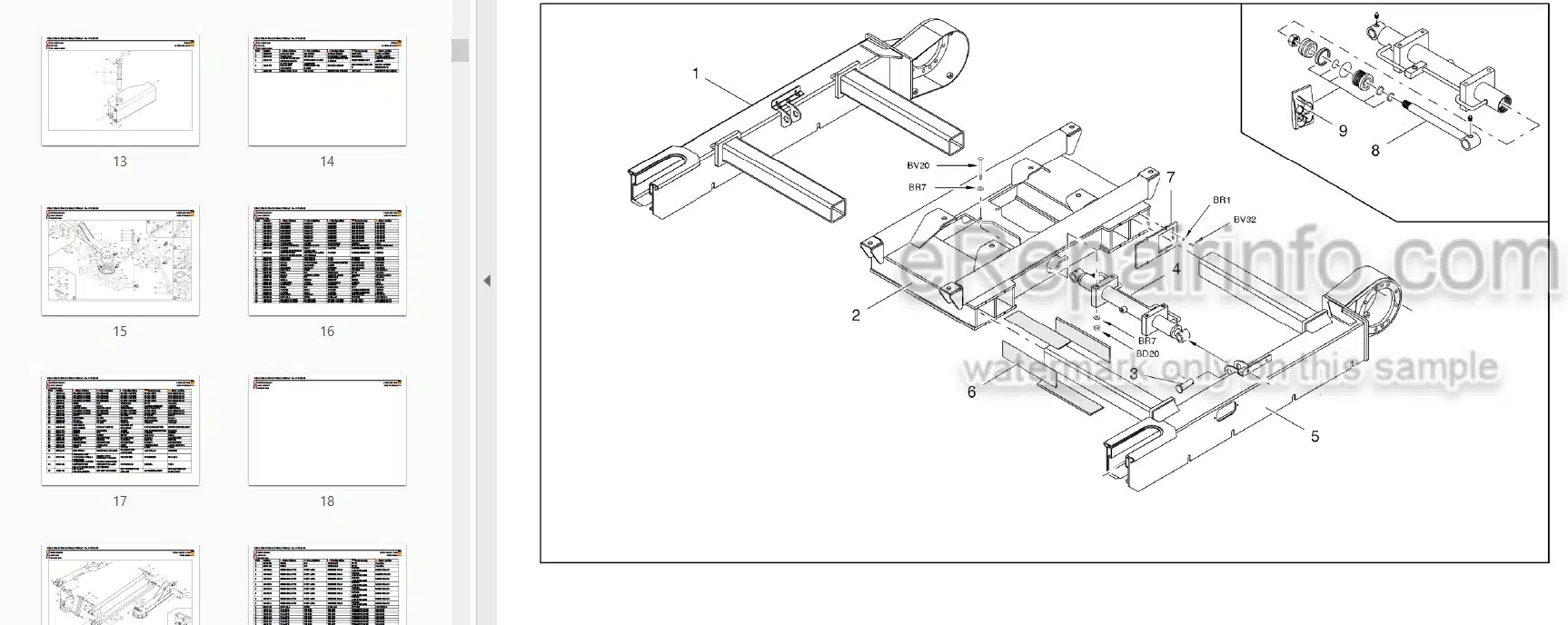

Parts Exploded View: Yes

Model

JLG Compact Crawler Boom Lift
X23J-2
X23J-3
X23JA-2
X700AJ-2
X700AJ-3

Contents

Tracked Undercarriage
Hydraulic Extension
Turret Base
Oil Tank
Arms Support
First Arm
Second Arm
Third Arm
First Extension Arm
Secondo Extension Arm
Arms Support
Engine Coupling – Pump
Engine Spare Parts Diesel
Engine Spare Parts Gasoline
Electric Motor
Supply And Discharge Hydraulic System
Hydraulic Distributors
Hydraulic System For Traction
Hydraulic System Undercarriage Expansion
Stabilizers Cylinders Hydraulic System
1-2 Arms Hydraulic System
3 Arm Hydraulic System
Telescopic Hydraulic System
Jib Hydraulic System
Leveling Cylinders Hydraulic System
Cage Rotation Hydraulic System
Compressed Air Hydraulic System
Cylinders
Electrical System Components
Electrical System Components Lithium
Remote Control
Stickers

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
