John Deere 220A Technical Manual Walk Behind Greensmower TM1680 manuals in PDF

Factory Technical Manual For John Deere Walk Behind Greensmower. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 192
Number: TM1680 (december 1996)
Searchable: Yes
Wiring Diagrams: Yes

Model

John Deere Walk Behind Greensmower
220A
Serial No. 030001—

Contents

SAFETY
-SPECIFICATIONS AND GENERAL INFORMATION

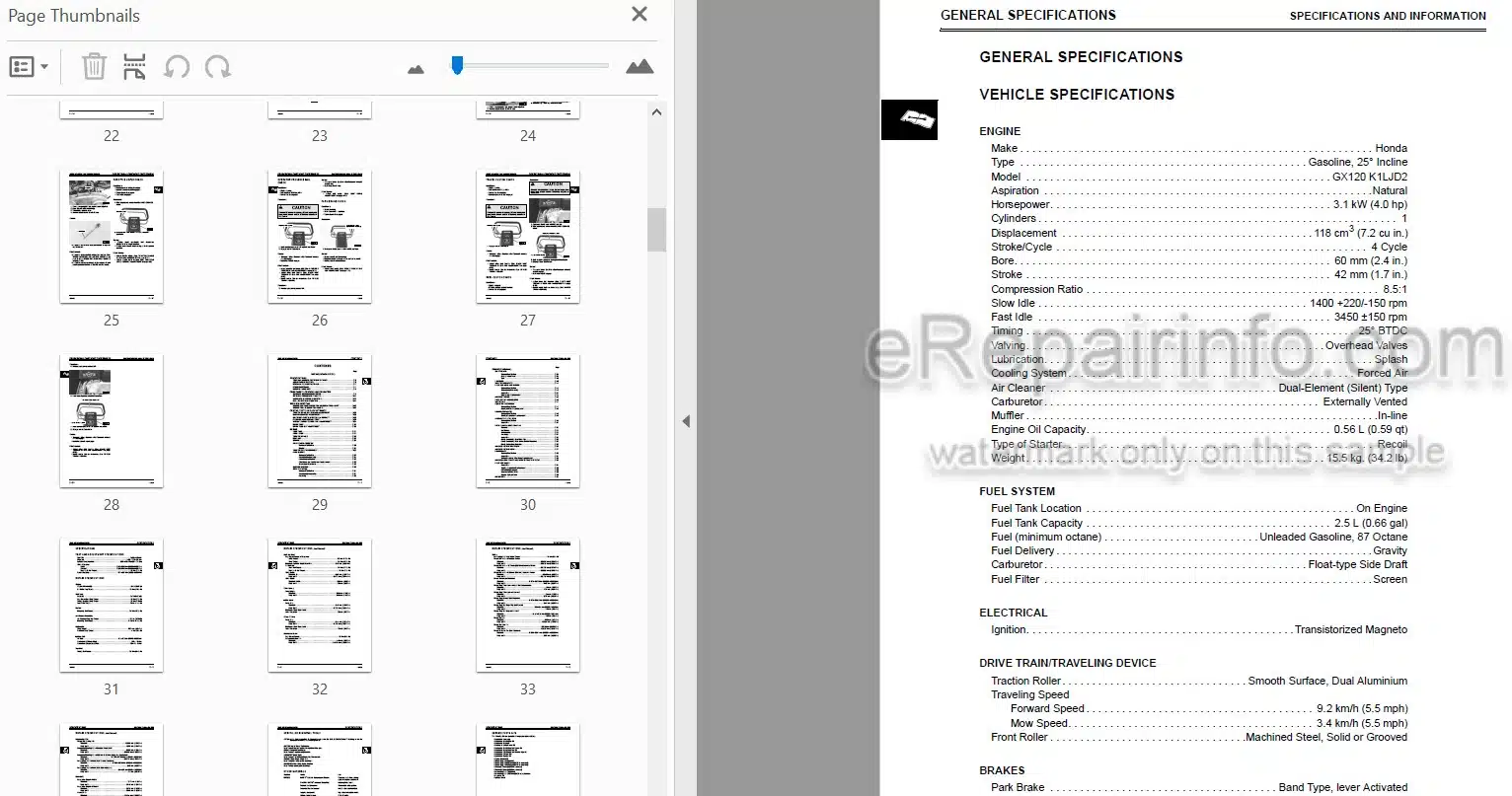

General Specifications
Repair Information
Gasoline
Oils And Lubricants
Serial Number Locations
Operational Checkout Procedures
-ENGINE (HONDA GX120)
Specifications

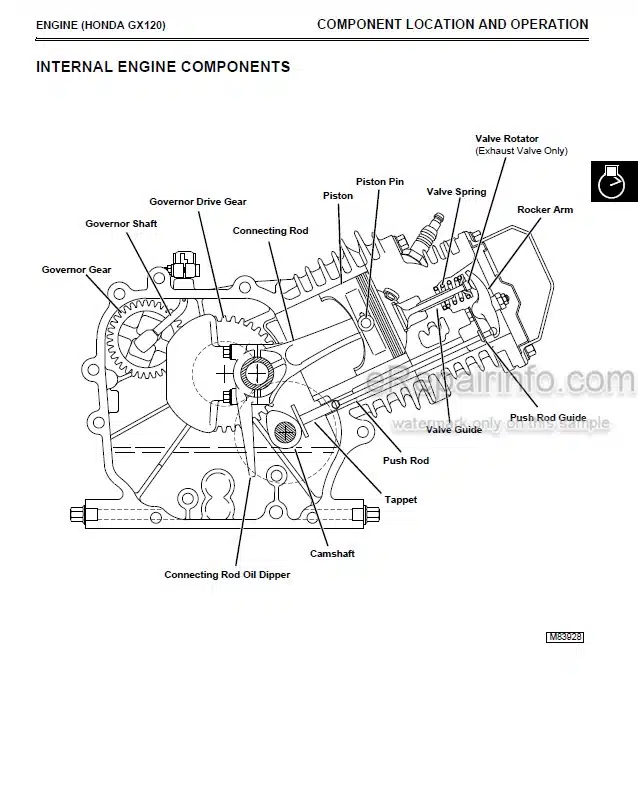

Component Location And Operation
Troubleshooting
Checks, Tests And Adjustments
Repair
-ELECTRICAL
Theory And Diagnostic Information
Component Location

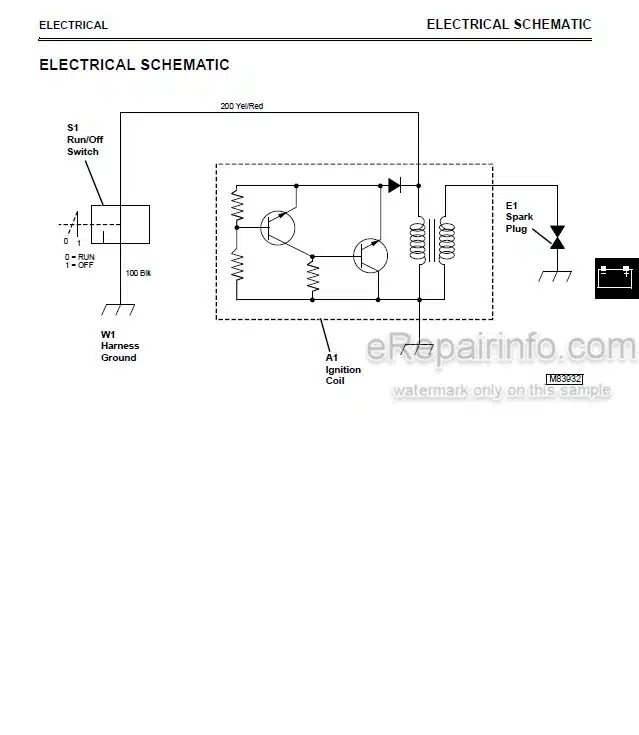

Electrical Schematic
Wiring Harness
Troubleshooting Chart
Circuit Operation And Diagnosis
-POWER TRAIN
Specifications
Component Location And Operation
Troubleshooting
Diagnosis
Checks And Adjustments
Repair
-HANDLEBARS AND CONTROLS
Component Location And Operation
Adjustments
Repair
-BRAKES
Component Location And Operation
Troubleshooting Chart
Diagnosis
Adjustments
Repair
-CUTTING UNIT
Repair
-MISCELLANEOUS
Specifications
Repair
