John Deere 3375 Technical Manual Skid Steer Loader TM1565 manuals in PDF

$19.95

Factory Technical Manual For John Deere Skid Steer Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 8 - John Deere 3375 Technical Manual Skid Steer Loader TM1565
John Deere 3375 Technical Manual Skid Steer Loader TM1565 $19.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Technical Manual For John Deere Skid Steer Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 283
Number: TM1565 (September 1994)
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

John Deere Skid Steer Loader
3375
Serial No. (130001 – )

Contents

SAFETY
-SPECIFICATIONS AND INFORMATION

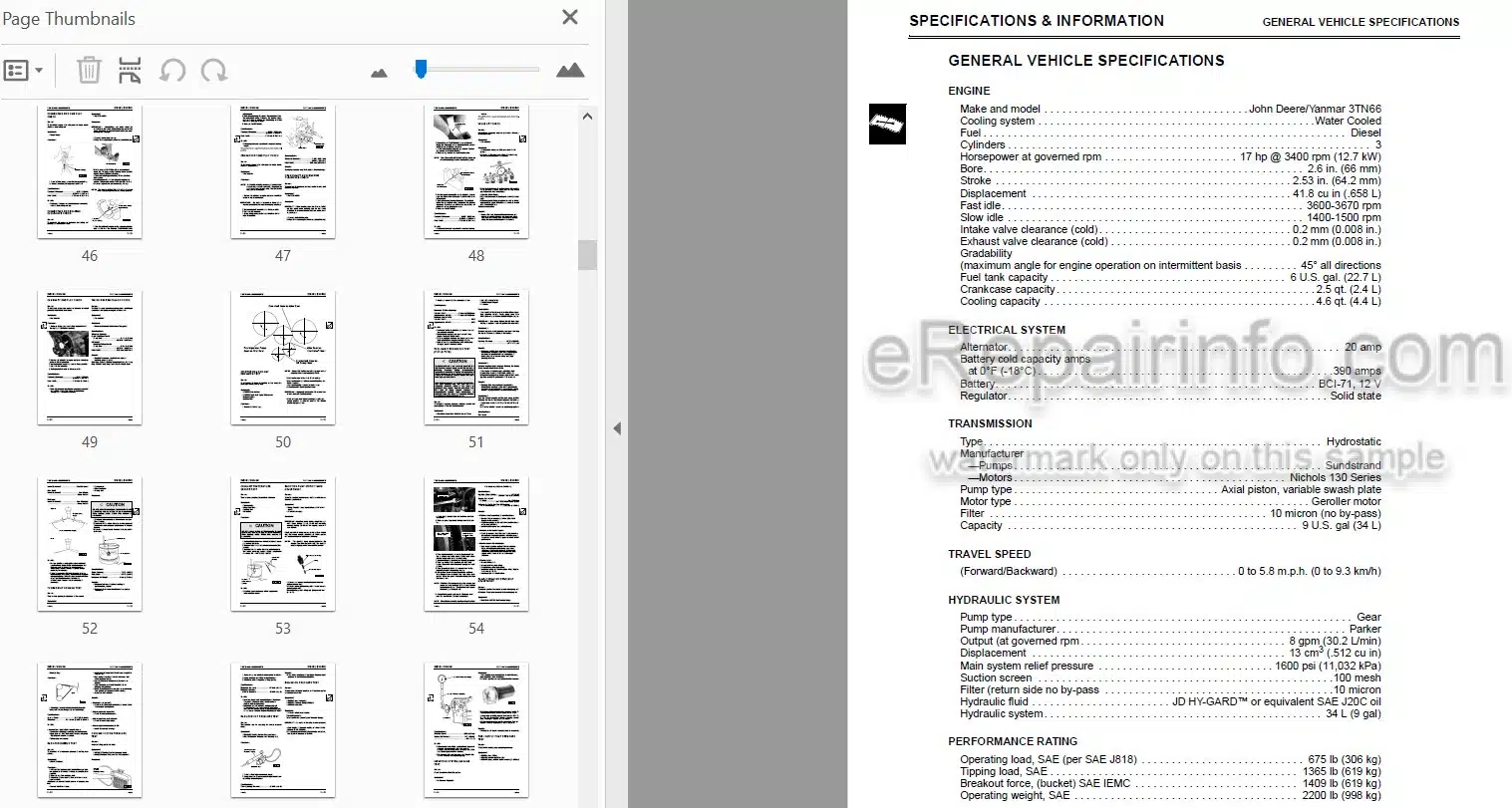

General Vehicle Specifications
Unified Inch Torque Values
Metric Torque Values
Diesel Fuel Specifications
Lubricant Specifications
Serial Number Location
-ENGINE (DIESEL)
Specifications
Component Location
Theory Of Operation
Troubleshooting
Diagnosis
Tests And Adjustments

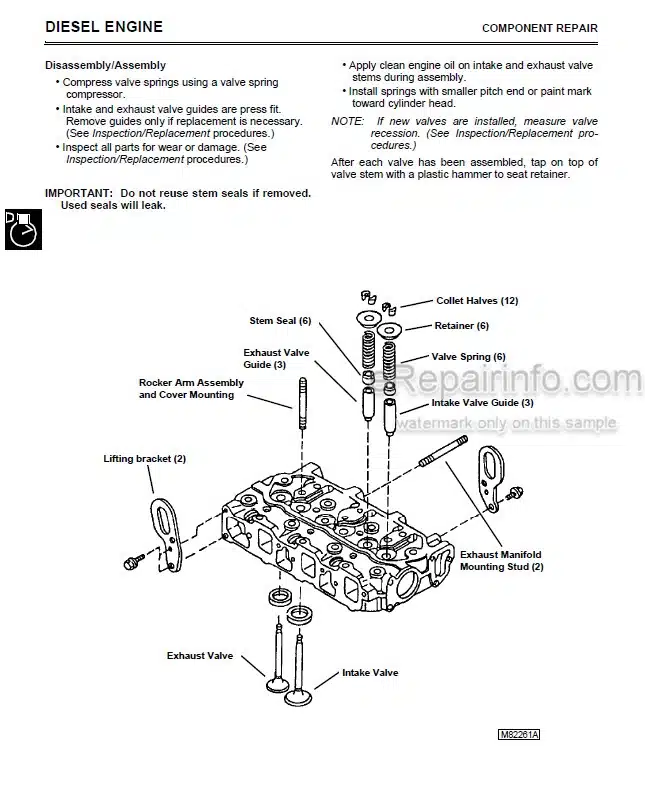

Component Repair
Removal And Installation
-ELECTRICAL
Specifications
Electrical Diagnostic Information
Control Module Operation
Component Location

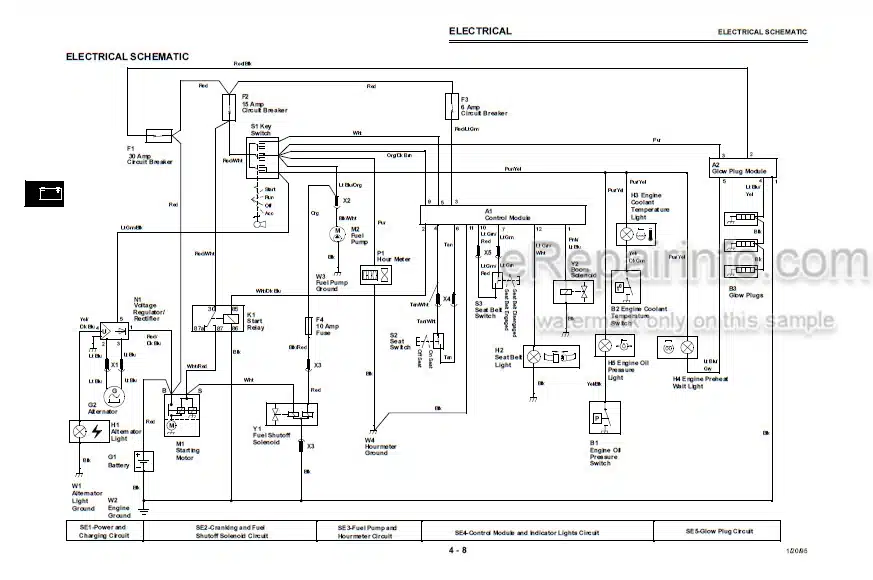

Electrical Schematic
Electrical Schematic – Optional Equipment Harness
Troubleshooting Chart
Wiring Harness
Power Circuit Operation
Circuit Operation And Diagnosis
Tests & Adjustments
-POWER TRAIN
Specifications
Component Location
Theory Of Operation
Troubleshooting
Diagnosis
Repair
-POWER TRAIN-HYDROSTSTIC
Specifications
Component Location – Pump
Component Location – Motor
Theory Of Operation
Troubleshooting
Diagnostics
Tests And Adjustments
Repair
-STEERING
Component Location And Operation-Steering
Troubleshooting
Repair And Adjustment
-BRAKES
Specifications
Component Location-Brakes
Theory Of Operation
Troubleshooting
Test And Adjustment
Repair And Replacement
-HYDRAULICS
Specifications
Theory Of Operation
Component Location
Hydraulic System Schematic
Hydraulic System Components
Troubleshooting
Diagnosis
Tests And Adjustments
Repair
