Factory Technical Manual For John Deere Round Baler. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 104
Number: TM1140 (February 1976)
Model
John Deere Round Baler
500
Contents

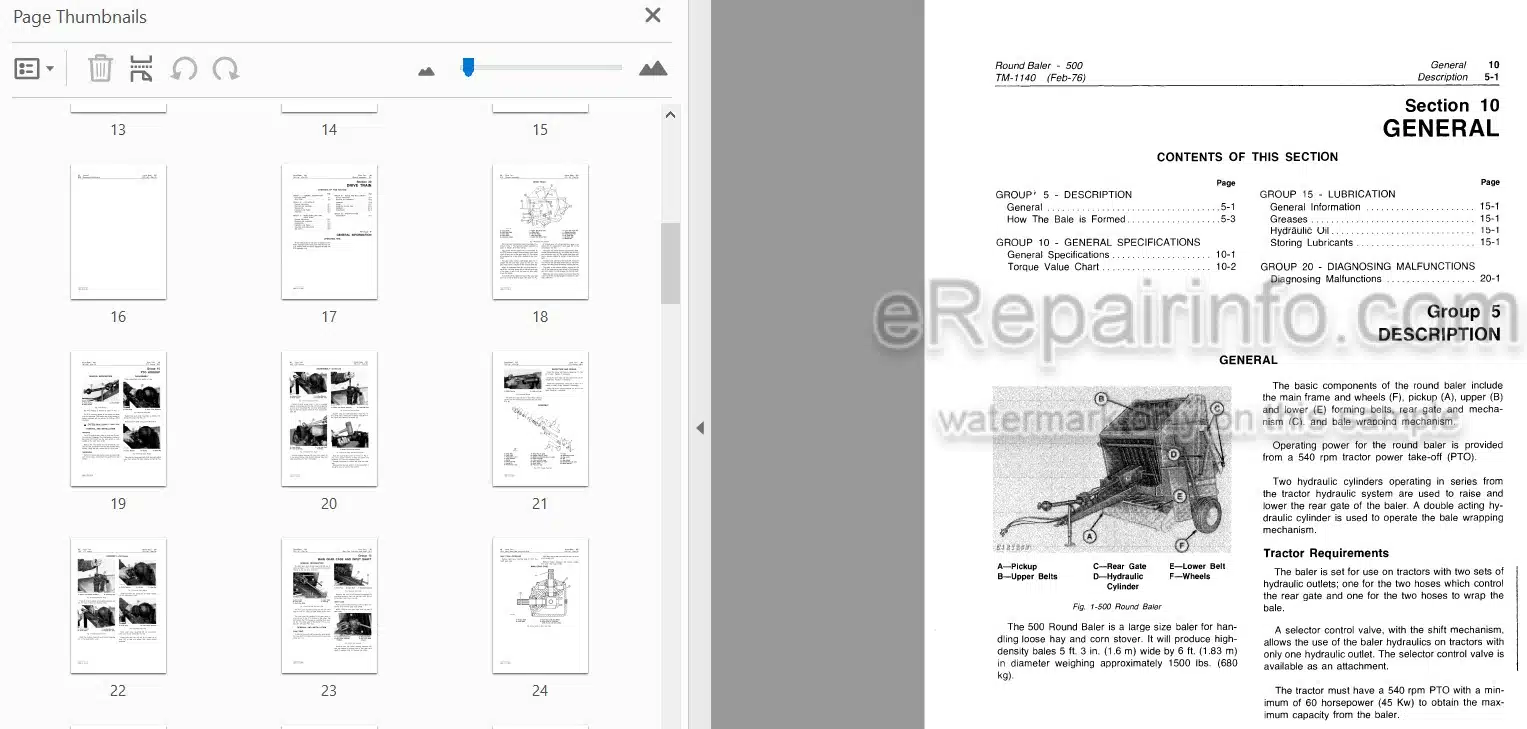

-GENERAL
Description
Specifications
Lubrication
Diagnosing Malfunctions

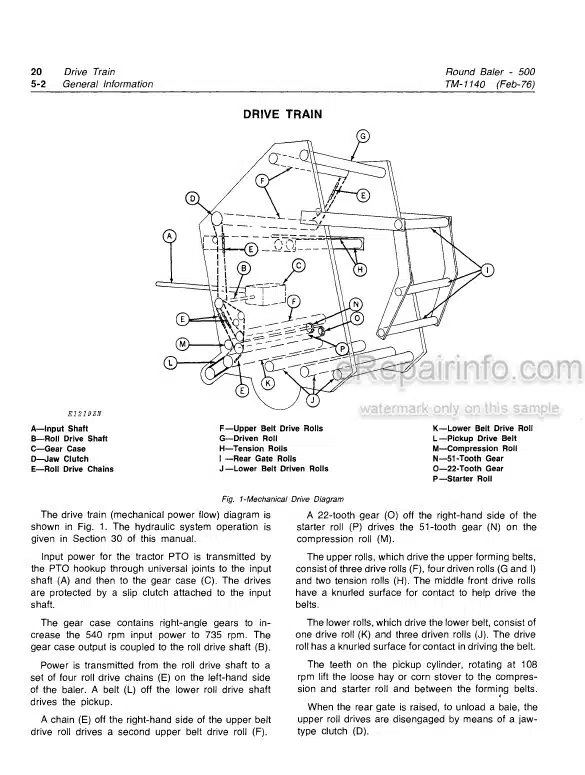

-DRIVE TRAIN
General Information
PTO Hookup
Main Gear Case and Input Shaft

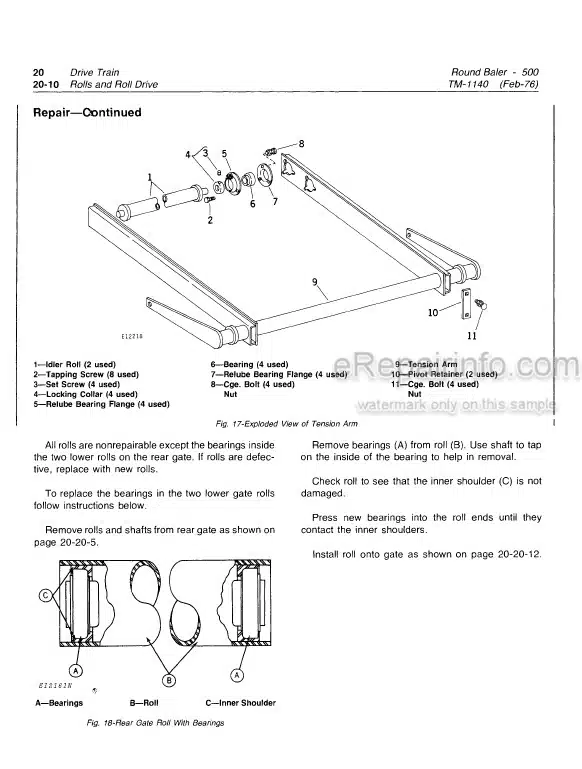

Rolls and Roll Drives
Specifications
-HYDRAULIC SYSTEM
General Information
Rear Gate Lift System
Wrapping System
Selector Control Valve
Specifications
-BELTS
General Information
Upper Belts
Lower Belt
Specifications
-MISCELLANEOUS
Rear Gate
Pickup
Tongue
ALPHABETICAL INDEX
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
