Factory Operation And Tests For John Deere Tractor. Manual Contains Illustrations, Instructions, Diagrams For Systems Diagnosis, Theory Of Operation, Performance Testing, Tests And Adjustments, Operational Check, Unit Locations, Diagnostic Codes, Schematics And A Lot Of Other Useful Information For Service And Repair.
Format: PDF
Language: English
Pages: 558
Number: TM4608 (december 2000)
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
John Deere Tractor
6205
6505
Contents
—SAFETY
Safety Measures
—ENGINE
Dynamometer Test
—FUEL, AIR INTAKE AND COOLING SYSTEMS
System Diagnosis
Tests and Adjustments
Fuel System
Air Intake System

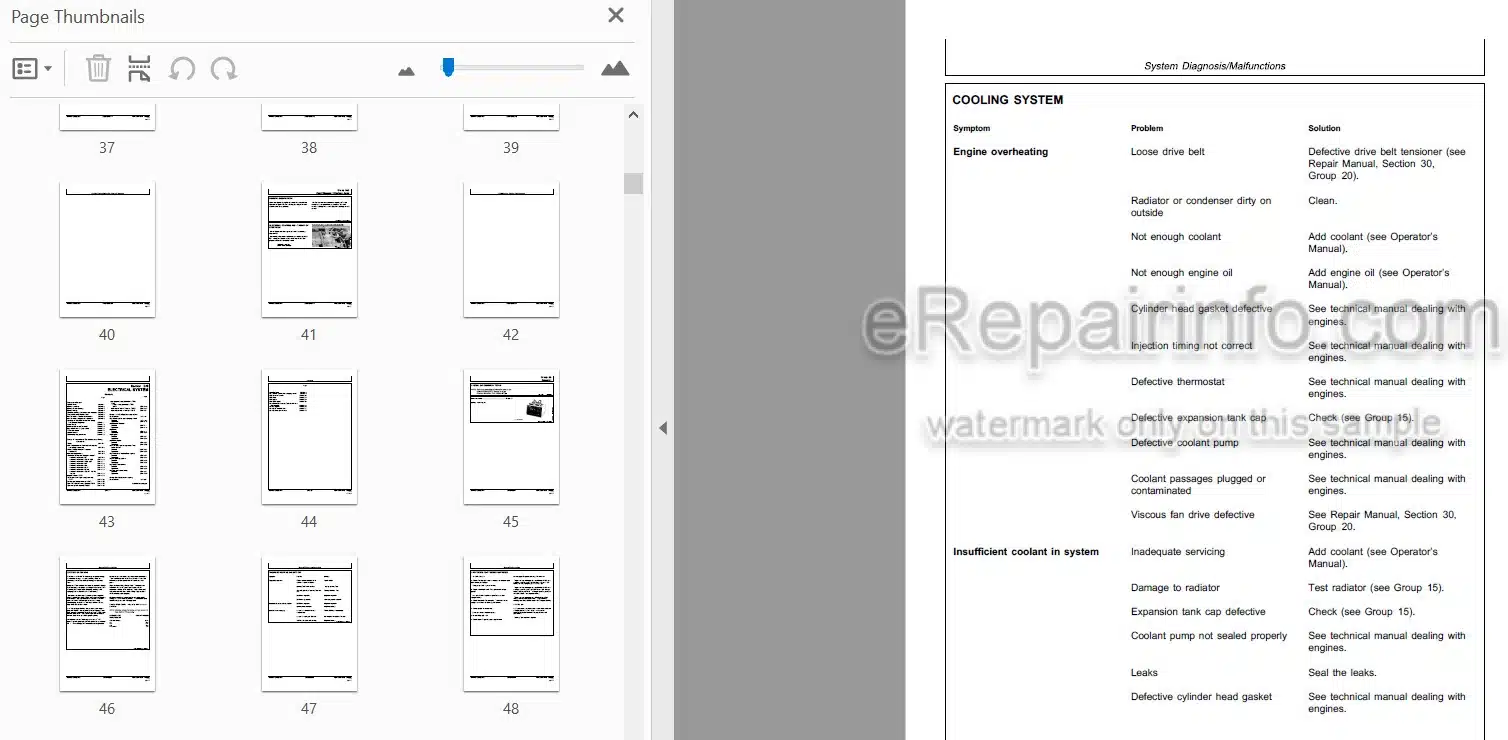

Cooling System
Cold-Weather Starting Aids
—ELECTRICAL SYSTEM
General

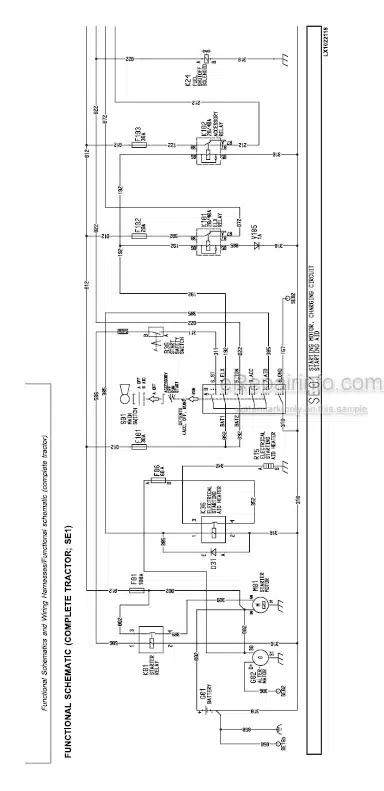

Functional Schematics and Wiring Harnesses
Sub-System Diagnostics
Component Testing
—SYNCROPLUS TRANSMISSION
Operational Checkout
Troubleshooting
System Tests
SyncroPlus Transmission Operation
Perma Clutch II
Gear Transmission
Range Transmission
—POWER REVERSER
Operational Checkout
Troubleshooting
System Tests
Power Reverser Operation
Power Reverser Module
Gear Transmission
—DRIVE SYSTEMS (EXCEPT TRANSMISSION)
Operational Checkout
Troubleshooting
System Tests
Front Wheel Drive Clutch
Differential
Final Drives
Rear PTO Options
—STEERING AND BRAKES
Operational Checks
Troubleshooting
System Tests
Hydrostatic Steering
Hydraulic Brakes
Handbrake
Hydraulic Trailer Brake
—HYDRAULIC SYSTEM
Operational Checkout
Troubleshooting in Hydraulic System
System Tests
Hydraulic System
Hydraulic Pump
Valves, Oil Cooler and Filters
Rockshaft
Selective Control Valves and Couplers
—SPECIAL TOOLS (DEALER-FABRICATED)
Special Tools (Dealer-Fabricated)
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
