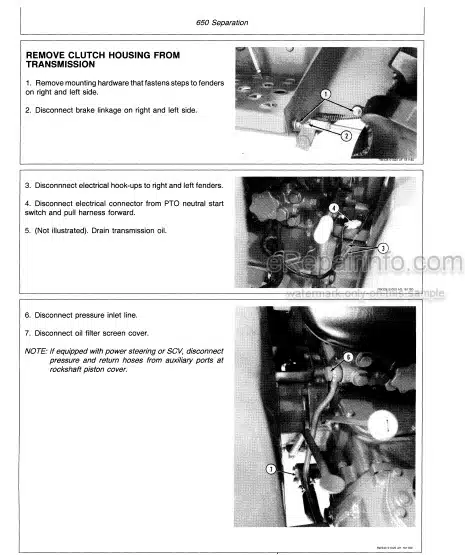

Factory Repair Manual For John Deere 650, 750 Tractors. Illustrations, instructions, diagrams for Systems Diagnosis, Theory of Operation, Performance Testing, Tests and Adjustments, Operational Check, Unit Locations, Diagnostic Codes, Schematics and a lot of other useful information for service and repair remove and install, assembly and disassembly, inspection, troubleshooting, tune-ups.
Format: PDF
Language: English
Pages: 796
Bookmarks: Yes
Searchable: Yes
Number: TM1242
Wiring Diagrams: Yes
Model
John Deere650
750
Contents
-GENERAL
Specifications and Special Tools
Predelivery, Delivery and AfterSale Services
TuneUp
Lubrication
650 Separation
750 Separation
-ENGINE REPAIR
Specifications and Special Tools
Valve Train, Cylinder Head and Camshaft
Pistons, Rods, and Cylinder Blocks Flywheel, Crankshaft, and Main Bearings
Lubrication System
Cooling System
-FUEL AND REPAIR
Specifications and Special Tools
Air Intake System
Diesel Fuel System
Speed Control Linkage
-ELECTRICAL REPAIR
Specifications and Special Tools
General Information
Charging System
Starting Motor
Instruments and Accessory Circuits Lighting Circuits
-650 POWER TRAIN REPAIR
Specifications and Special Tools
Engine Clutch and Linkage
Sliding Gear Transmission
Rear PTO
Differential
Final Drive
Mechanical Front-Wheel Drive
Front PTO
-750 POWER TRAIN REPAIR
Specifications and Special Tools
Engine Clutch and Linkage
Sliding Gear Transmission
Rear PTO
Differential
Final Drive
Mechanical Front-Wheel Drive
Front PTO
-STEERING/BRAKES REPAIR
Specifications and Special Tools
Steering Gear Repair
Power Steering Repair (Field Option)
Brakes Repair
-HYDRAULIC REPAIR
Specifications and Special Tools
Hydraulic Pump Repair R
ockshaft and Implement Hitches
Selective Control Valve Repair
-MISCELLANEOUS REPAIR
Specifications and Special Tools
Front Axle Assembly
Wheels
Operators Station Repair
-ENGINE OPERATION AND TESTS
Specifications and Special Tools
System Operation
System Tests and Diagnosis
—FUEL/AIR OPERATION AND TESTS
Specifications and Special Tools
Air Intake System
Diesel Fuel System
Speed Control Linkage
-ELECTRICAL OPERATION
Specifications and Special Tools
General Information and Diagrams
Charging System
Starling Circuit
Instruments and Accessory Circuits
Lighting Circuits
-650 POWER TRAIN OPERATION AND TESTS
Specifications and Special Tools
Clutch and Transmission Operation
Diagnosing the Clutch, Transmission and Front-Wheel Drive
Differential and Final Drive
Mechanical Front-Wheel Drive Operation
—750 POWER TRAIN OPERATION AND TESTS
Specifications and Special Tools
Clutch and Transmission Operation
Diagnosing the Transmission, and Front-Wheel Drive
Differential and Final Drive
Mechanical Front-Wheel Drive Operation
—STEERING/BRAKES OPERATION AND TEST
Specifications and Special Tools
-Manual Steering
Power Steering
Brakes
—HYDRAULIC OPERATION AND TESTS
Specifications and Special Tools
Hydraulic System Operation
Hydraulic System Tests and Diagnosis
Hydraulic Pump
Rockshaft and Implement
Selective Control Valve
