John Deere 8130 8230 8330 8430 8530 Repair Manual Tractors TM2270 manuals in PDF

$29.00

Factory Repair Manual For John Deere 8130, 8230, 8330, 8430, 8530 Tractors. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.

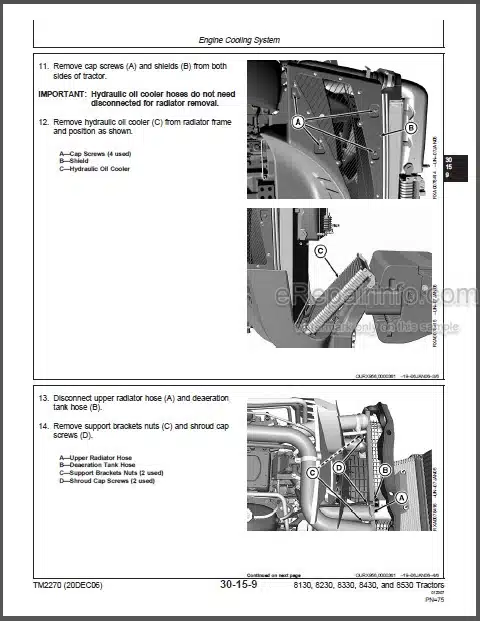

Photo 9 - John Deere 8130 8230 8330 8430 8530 Repair Manual Tractors TM2270
John Deere 8130 8230 8330 8430 8530 Repair Manual Tractors TM2270 $29.00
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Repair Manual For John Deere 8130, 8230, 8330, 8430, 8530 Tractors. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.

Format: PDF
Language: English
Pages: 1618
Bookmarks: Yes
Searchable: Yes
Number: TM2270

Model

John Deere8130
8230
8330
8430
8530

Contents

-GENERAL INFORMATION
Safety
General Information
-ENGINE
Component Removal and Installation
Engine Repair
-FUEL AND COOLING SYSTEMS
Diesel Fuel System
Air Intake System
Engine Cooling System
Coolers and Air Conditioning Condenser
-ELECTRICAL
Connectors
Wiring Harness Routings
Charging Circuit
Starting Circuit
Relays, Fuses, Solenoids, and Switches
Monitoring Systems and Sensors
Armrest Control
Implement and Accessory Connectors
Convenience and Accessory Components
-POWER SHIFT TRANSMISSION
Component Removal and Installation
Miscellaneous Repair
Transmission
-AUTOPOWR/IVT TRANSMISSION
Component Removal and Installation
General Repair Procedures
In Tractor Repairs
Transmission Repair
Assemble Transmission
-DRIVE SYSTEMS
Component Removal and Installation
Rear Differential and Input Quill
Primary and Secondary Brakes
Final Drives
Rear PTO
Hydraulic Pump Drive
MFWD Clutch
Drivelines
-MFWD AXLES
Component Removal and Installation
Final Drives
Axle Housing
Differential
Input Gear Train
Oscillation
-INDEPENDENT LINK SUSPENSION™ AXLE
Component Removal and Installation
Controls
Final Drives
Drive Shafts
Differential
Steering
Suspension
-1500 SERIES MFWD AXLE
Component Removal and Installation
Final Drives
Axle Housing
Differential
Input Gear Train
-STEERING AND BRAKES
Steering Column
Steering Control Assembly
Steering Cylinders
Brake Valve
-HYDRAULICS
Component Removal and Installation
Hydraulic System Repair and Cleanup
Integrated Hydraulic Pump
Hitch Valve, Selective Control Valves, and Couplers
Hitch
Front Hitch
-MISCELLANEOUS
Hood
Front Axle (Two-Wheel Drive)
Wagon And Pick-Up Hitch
Rear Wheels
-OPERATOR STATION
Component Removal and Installation
Heating, Ventilating, and Air Conditioning (HVAC)
Air Conditioning System
Air Suspension Seat
ACTIVE SEAT™
Armrest
Cab Door and Windshield
-DEALER TOOLS
Dealer Fabricated Tools
Essential or Recommended Tools

What you get

You will be given access to the link for downloading high quality PDF Manual (.pdf / .zip file) immediately after you pay.

Reviews

There are no reviews yet
