John Deere 850 900HC 950 1050 Technical Repair Manual Tractor TM1192 manuals in PDF

Factory Technical Manual For John Deere Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 818
Number: TM1192 (august 1986)

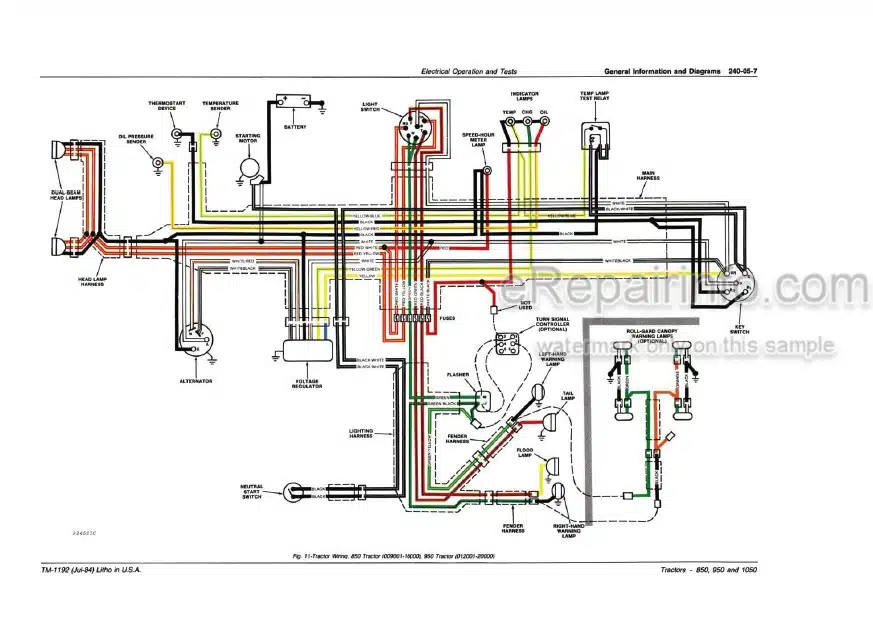

Wiring Diagrams: Yes

Model

John Deere Tractor
850
900HC
950
1050

Contents

-GENERAL

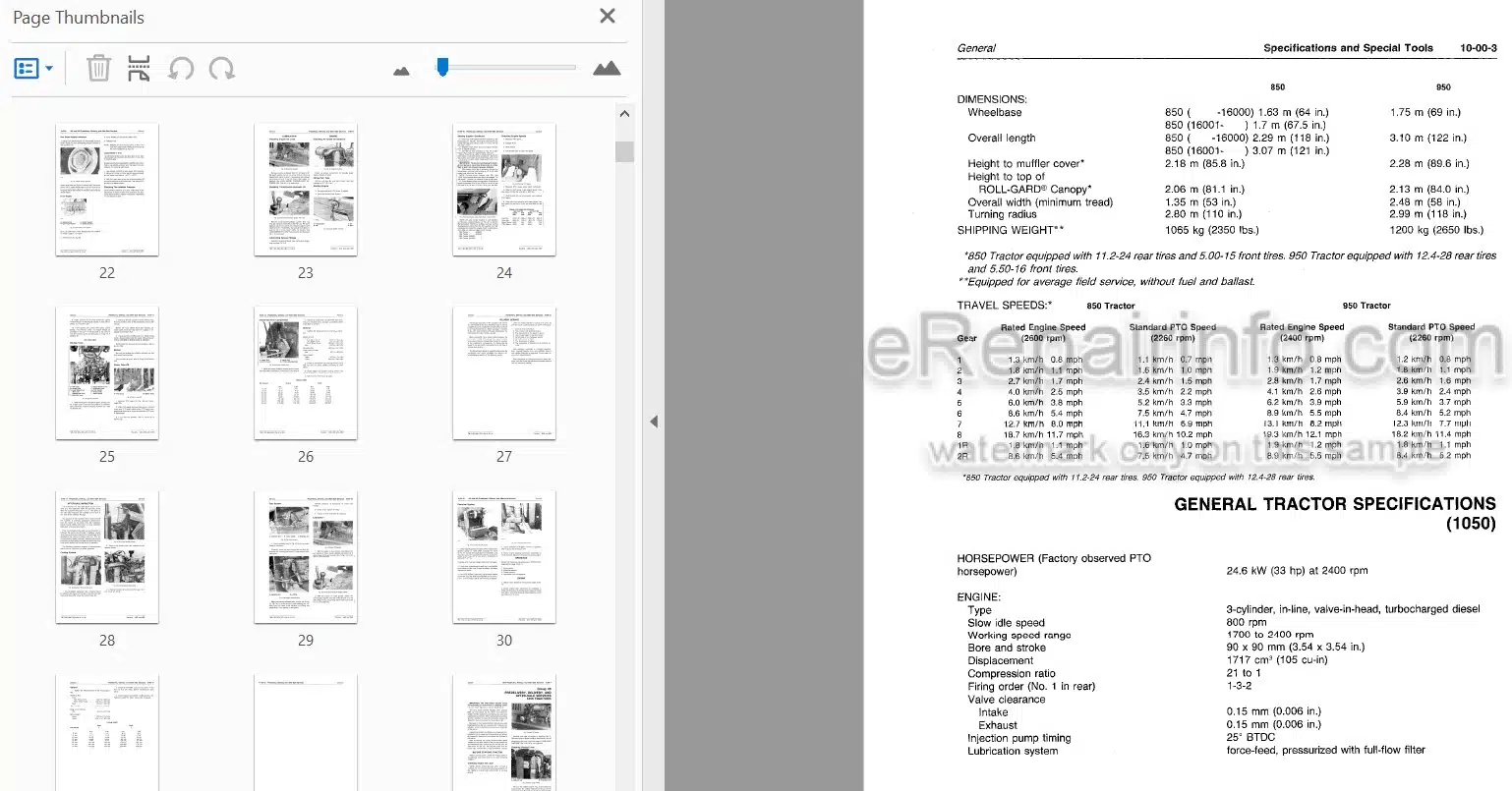

Specifications and Special Tools
Predelivery, Delivery, and After-Sale Services—850 and 950 Tractors
Predelivery, Delivery, and After-Sale Services—1050 Tractor
Tune-Up
Lubrication
Separation
-ENGINE REPAIR
Specifications and Special Tools
Cylinder Head, Valves, and Camshaft—850 and 950 Tractors
Cylinder Head. Valves, and Camshaft—1050 Tractor
Cylinder Block, Liners, Pistons and Rods
Crankshaft, Main Bearings, and Flywheel
Lubrication System
Cooling System—850 and 950 Tractors
Cooling System—850, 950, and 1050 Tractors
-FUEL AND AIR REPAIR
Specifications and Special Tools
850 and 950 Air Intake System
1050 Air Intake System
Diesel Fuel System
850 and 950 Control Linkage
850, 950, and 1050 Control Linkage
-ELECTRICAL REPAIR
Specifications and Special Tools
General Information
Charging System
Starting Circuit
Lighting and Accessory Circuits
-POWER TRAIN REPAIR
Specifications and Special Tools
Engine and Clutch Linkage—850 ( -16000} and 950 ( -20000) Tractors 850 (-009000),950( 850 (009001-).950 (012001-012000))
Engine and Clutch Linkage 850 (16001- ), 950 (20001- ) and 1050 Tractor

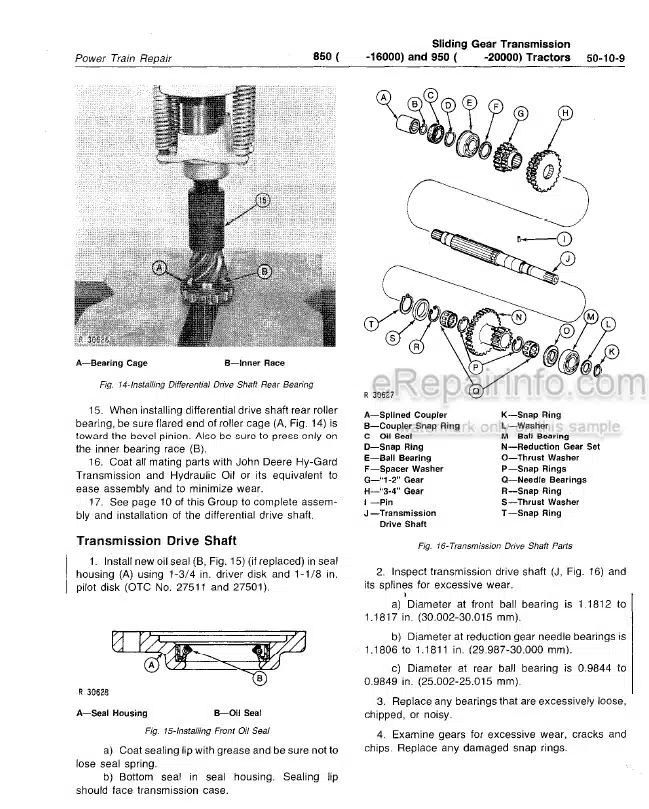

Sliding Gear Transmission 850 ( – 16000) and 950 ( -20000) Tractors
Sliding Gear Transmission 850 (16001- ), 95Q (20001- ) and 1050 Tractor
PTC 850 ( -16000) and 950 ( – 20000) Tractors
PTO 850 (16001 ), 950(20001- ) and 1050 Tractor
Differential 850 ( -16000) and 950 ( – 20000) Tractors
Differential 850 (16001- ), 950 (20001- ) and 1050 Tractor
Final Drive—850-950 Tractors
Final Drive—1050 Tractor
Drop Housings and Final Drives— 900HC Tractor
Mechanical Front-Wheel Drive
-STEERING/BRAKES REPAIR
Specifications and Special Tools
Steering
Power Steering
Brakes
-HYDRAULIC REPAIR
Specifications and Special Tools
Hydraulic Pump and Oil Filters
850/950 Rockshaft and Implement
Hitches
1050 Rockshaft and Implement
Hitches
Selective Control Valve
-MISCELLANEOUS REPAIR
Specifications and Special Tools
Front Axle Assembly
Wheels
-OPERATOR STATION REPAIR
Specifications and Special Tools
Roll-Gard
Canopy
-ENGINE OPERATION AND TESTS
Specifications and Special Tools
System Operation
System Tests and Diagnosis
-FUEL/AIR OPERATION AND TESTS
Specifications and Special Tools
850 and 950 Air Intake System
1050 Air Intake System
Diesel Fuel System
Speed Control Linkage—850 and 950 Tractors
Speed Control Linkage—850, 950, and 1050 Tractors
-ELECTRICAL OPERATION AND TESTS
Specifications and Special Tools
General Information and Diagrams
Charging System Diagnosis
Starting Circuit Diagnosis
Lighting and Accessory Circuits
-POWER TRAIN OPERATION AND TESTS
Specifications and Special Tools
Clutch and Transmission Operation— 850 ( -16000) and 950 ( -20000) Tractors
Clutch and Transmission Operation— 850 (16001- ), 950 (20001- ) and 1050 Tractor
Trouble Shooting the Clutch, Transmission and PTO—850 ( -16000) and 950 ( -20000) Tractors
Trouble Shooting the Clutch. Transmission and PTO—850 (16001- ), 950 (20001- ) and 1050 Tractor
Differential and Final Drive—850 ( – 16000) and 950 ( -20000) Tractors
Differential and Final Drive—850 (16001- ), 950 (20001- ) and 1050 Tractor
Mechanical Front-Wheel Drive 850 (-009000), 950 ( -012000) 850(009001-, 950(012001-)
-STEERING/BRAKES OPERATION AND TESTS
Specifications and Special Tools
Steering
Power Steering
Brakes
-HYDRAULIC OPERATION AND TESTS
Specifications and Special Tools
Hydraulic System Operation
Hydraulic System Tests and Diagnosis
Hydraulic Pump
850/950 Rockshaft and Implement Hitches
1050 Rockshaft and Implement Hitches
Selective Control Valve

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
