John Deere 8560 8760 8960 Operation And Tests Technical Manual Tractor TM1434 manuals in PDF

$34.00

Factory Operation And Tests For John Deere Tractor. Manual Contains Illustrations, Instructions, Diagrams For Systems Diagnosis, Theory Of Operation, Performance Testing, Tests And Adjustments, Operational Check, Unit Locations, Diagnostic Codes, Schematics And A Lot Of Other Useful Information For Service And Repair.

Photo 8 - John Deere 8560 8760 8960 Operation And Tests Technical Manual Tractor TM1434
John Deere 8560 8760 8960 Operation And Tests Technical Manual Tractor TM1434 $34.00
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operation And Tests For John Deere Tractor. Manual Contains Illustrations, Instructions, Diagrams For Systems Diagnosis, Theory Of Operation, Performance Testing, Tests And Adjustments, Operational Check, Unit Locations, Diagnostic Codes, Schematics And A Lot Of Other Useful Information For Service And Repair.

Format: PDF
Language: English
Pages: 974
Number: TM1434 (march 2002)
Searchable: Yes
Wiring Diagrams: Yes

Model

John Deere Tractor
8560
8760
8960

Contents

—GENERAL INFORMATION
Safety
Machine Operational Checks
General Reference Information
Test Equipment Calibration
—ENGINE OPERATION AND TESTS
General Information
System Diagnosis
Theory of Operation
—FUEL AND AIR OPERATION AND TESTS
Air Intake System
Diesel Fuel System
—ELECTRICAL OPERATION AND TESTS
Electrical System Introduction

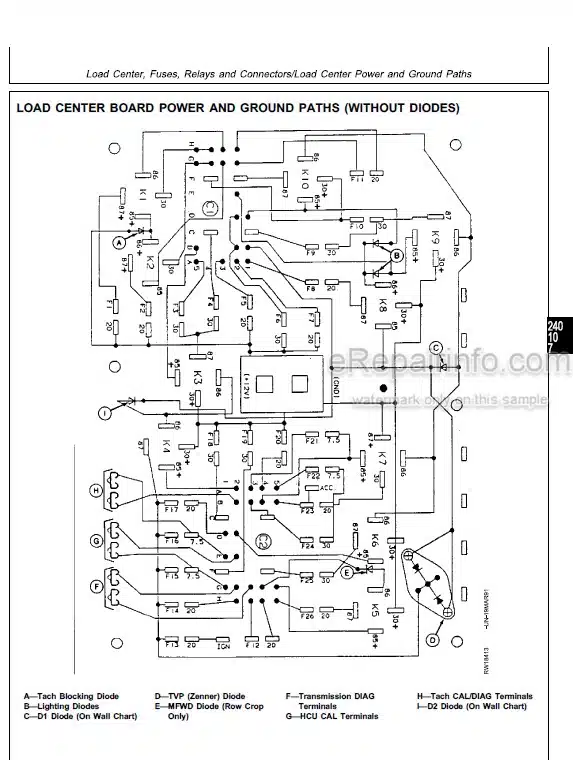

Load Center, Fuses, Relays and
Connectors
Preliminary Checks
Operational Checks
Starting Circuit
Charging Circuit
INTELLITRAK System-Tachometer Module
INTELLITRAK System-Performance Monitor
24-Speed POWRSYNC Transmission
Power Shift Transmission
Electro-Hydraulic Hitch
Lighting Circuit
Accessory Circuits
—12-SPEED SYNCRO & 24-SPEED
POWRSYNC TRANSMISSION
Operational Checks
Transmission System Diagnosis
Theory Of Operation
—POWER SHIFT TRANSMISSION
Operational Checks
Transmission System Diagnosis
POWER SHIFT Theory Of Operation
—PTO, AXLES AND DIFFERENTIALS
Theory Of Operation
—STEERING AND BRAKES
Operational Checks
System Diagnosis
Steering And Brake Tests
Theory Of Operation
—HYDRAULIC SYSTEM
Operational Checks
Hitch Operational Checkout
Hydraulic System Diagnosis
Hitch System Diagnosis
Tests
Hitch System Tests
Theory Of Operation
Hitch System Theory of Operation
—OPERATOR STATION
Air Quality System Operational Checks
Air Quality System Diagnosis
Theory of Operation
—DEALER FABRICATED TOOLS
Fabricated Tools

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
