John Deere E100 E110 E120 E130 E140 E150 E160 E170 E180 Technical Repair Manual
The John Deere E100 E110 E120 E130 E140 E150 E160 E170 E180 Technical Repair Manual (TM151119) is an indispensable resource for owners, operators, and technicians tasked with maintaining and repairing John Deere E100 series lawn tractors. This factory technical manual, formatted as a searchable PDF with detailed bookmarks for easy navigation, spans 518 pages and is available in English. It includes a wealth of illustrations, instructions, and diagrams to facilitate step-by-step procedures for removal, installation, assembly, disassembly, service, inspection, repair, troubleshooting, and tune-ups.
Format and Accessibility
- Format: PDF
- Language: English
- Pages: 518
- Number: TM151119 (October 2019)
- Searchable: Yes
- Wiring Diagrams: Yes
Models Covered
This technical repair manual covers the following John Deere lawn tractor models:
- E100
- E110
- E120
- E130
- E140
- E150
- E160
- E170
- E180
Contents Overview
The manual is meticulously organized into various sections, each dedicated to specific systems and components of the tractors. Here’s a brief overview of what each section entails:
General Information
- Safety guidelines, general specifications, fuel and lubricants, and machine specifications.
Single Cylinder Engine Repair
- Detailed procedures for repairing single cylinder engines, including disassembly, inspection, and reassembly.
V-Twin Engine Repair
- Comprehensive repair instructions for V-twin engines, covering all aspects of maintenance and troubleshooting.
Electrical Repair
- Component location, wiring harnesses, common wiring harnesses for all model years, and detailed electrical repair instructions.
Continuously Variable Transmission (CVT) Repair
- Procedures for CVT repair, including component location and detailed step-by-step instructions.
Hydrostatic Power Train Repair
- Detailed maintenance and repair procedures for the hydrostatic power train system.
Steering and Brake Repair
- Instructions for repairing the steering and brake systems, including component locations and repair procedures.
Attachments Repair
- Maintenance and repair guidelines for various attachments, including their component locations.
Miscellaneous Repair
- Covers additional repair procedures not classified under other specific sections.
Operation, Tests, and Adjustments
The manual also includes extensive sections on the operation, tests, and adjustments of various components and systems:
- Single Cylinder Engine Operation, Tests, and Adjustments
- Diagnostics, tests, and adjustments for single cylinder engines.
- V-Twin Engine Operation, Tests, and Adjustments
- Comprehensive diagnostics, tests, and adjustments for V-twin engines.
- Electrical Operation, Tests, and Adjustments
- Theory of operation, diagnostics, tests, adjustments, schematics, and connector information for the electrical system.
- Continuously Variable Transmission (CVT) Operation
- Theory of operation and diagnostics for CVT systems.
- Hydrostatic Power Train Operation, Tests, and Adjustments
- Theory of operation, diagnostics, and detailed tests and adjustments for the hydrostatic power train.
- Steering and Brake Operation, Tests, and Adjustments
- Steering and brake component locations, tests, and adjustments for optimal performance.
- Attachments Operation, Tests, and Adjustments
- Diagnostics and adjustments for various attachments.
Service Tools and Kits
The manual also provides information on the service tools and kits required for the maintenance and repair tasks, ensuring that technicians have the necessary equipment to perform their duties effectively.
In-Depth Section Highlights
Engine Repair:
- The engine repair sections (single cylinder and V-twin) provide exhaustive coverage of all aspects of engine maintenance and repair. Key highlights include:
- Diagnostics and Testing: Comprehensive guidelines for diagnosing and testing engine performance.
- Detailed Repair Procedures: Step-by-step instructions for disassembling, inspecting, repairing, and reassembling engine components.
Electrical Repair:
- The electrical repair section offers detailed insights into maintaining and repairing the electrical systems. Key components include:

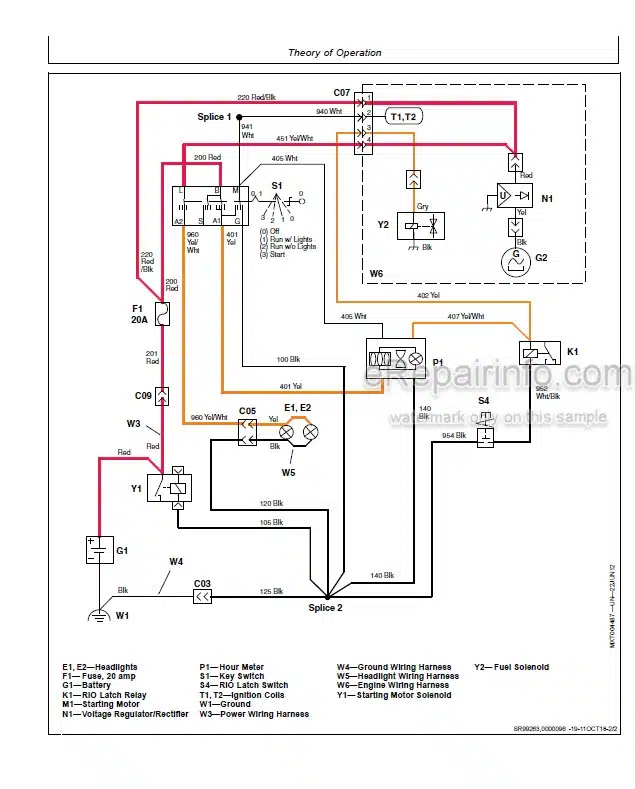

- Wiring Diagrams: Detailed wiring diagrams to facilitate troubleshooting and repair.
- Component Location and Theory of Operation: Essential information for understanding the electrical systems and their components.
Hydrostatic Power Train and CVT Repair:
- These sections provide comprehensive maintenance and repair instructions for the hydrostatic power train and CVT systems, ensuring optimal performance and longevity of the lawn tractors.
Utility and Practicality
The John Deere E100 E110 E120 E130 E140 E150 E160 E170 E180 Technical Repair Manual is designed to be a practical, hands-on guide for technicians and operators. The inclusion of detailed wiring diagrams and a searchable text format ensures quick and efficient access to specific information, enhancing the user experience and efficiency in performing maintenance and repair tasks.
Conclusion
In conclusion, the John Deere E100 E110 E120 E130 E140 E150 E160 E170 E180 Technical Repair Manual (TM151119) is an invaluable tool for anyone involved in the maintenance and repair of these lawn tractors. Its comprehensive coverage, detailed instructions, and user-friendly format make it an essential resource for ensuring that John Deere E100 series lawn tractors remain in optimal working condition. Whether performing routine maintenance or extensive repairs, this manual provides all the necessary information to keep your lawn tractor running smoothly and efficiently.
