John Deere GX355 GX325 GX335 GX345 Technical Manual Garden Tractors TM1973 manuals in PDF

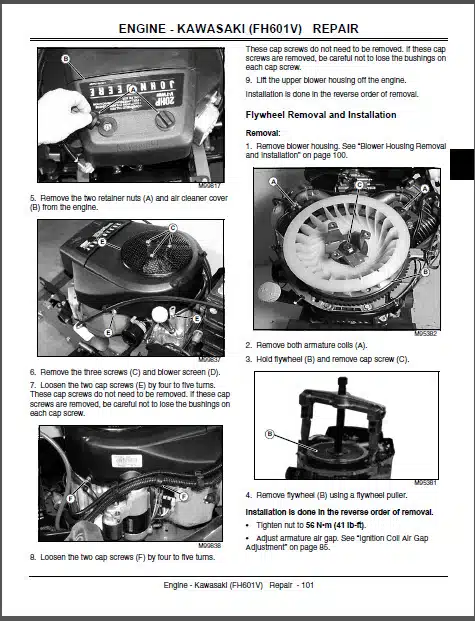

Factory Repair Manual For John Deere GX355, GX325, GX335, GX345 Garden Tractors. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.

Format: PDF
Language: English
Pages: 596
Bookmarks: Yes
Searchable: Yes
Number: TM1973
Wiring Diagrams: Yes

Model

John Deere

GX355
GX325
GX335
GX345

Contents

-INTRODUCTION
-SAFETY
Recognize Safety Information
Understand Signal Words
Replace Safety Signs
Handle Fluids Safely – Avoid Fires
Use Care In Handling and Servicing Batteries
Prevent Battery Explosions
Prevent Acid Burns
Wear Protective Clothing
Use Care Around High-Pressure Fluid Lines
Service Machines Safely
Use Proper Tools
Park Machine Safely
Using 120 Volt Electric Outlet System Safely
Support Machine Properly and Use Proper Lifting Equipment
Work In Clean Area
Using High-Pressure Washers
Illuminate Work Area Safely
Work In Ventilated Area
Warning: California Proposition 65 Warning
Remove Paint Before Welding or Heating
Avoid Harmful Asbestos Dust
Service Tires Safely
Avoid Injury From Rotating Blades, Augers and PTO Shafts
Service Cooling System Safely
Handle Chemical Products Safely
Dispose of Waste Properly
Live With Safety
-SPECIFICATIONS & INFORMATION
Fastener Torques
General Information
Serial Number Locations
-ENGINE – KAWASAKI (FH531V)
Specifications
Tools and Materials
Component Location
Diagnostics
Tests and Adjustments
Repair
-ENGINE – KAWASAKI (FH601V)
Specifications
Tools and Materials
Component Location
Diagnostics
Tests and Adjustments
Repair
-ENGINE – KAWASAKI (FD611V)
Specifications
Tools and Materials
Component Location
Diagnostics
Tests and Adjustments
Repair
-ELECTRICAL
General Information
Specifications
Component Location
Schematics and Harnesses
Operation and Diagnosis – GX255/325/335
Component Location
Schematics and Harnesses GX345
Operation and Diagnosis – GX345
Tests and Adjustments
Repair
-POWER TRAIN – HYDROSTATIC
Specifications
Component Location
Theory of Operation
Diagnostics
Tests and Adjustments
Repair
Transaxle Disassembly and Assembly
-HYDRAULICS
Specifications
Component Location
Theory of Operation
Diagnostics
Tests and Adjustments
Repair
-STEERING
Specifications
Component Location
Theory of Operation
Diagnostics
Tests and Adjustments
Repair
-STEERING GX325
Specifications
Theory of Operation
Diagnostics
Tests and Adjustments
Repair
-STEERING GX3351GX345
Specifications
Component Location
Theory of Operation
Diagnostics
Tests and Adjustments
Repair
-BRAKES
Component Location
Theory of Operation
Diagnostics
Tests and Adjustments
Repair
-ATTACHMENTS
Specifications
Component Location
Diagnostics
Tests and Adjustments
Repair
48-Inch Deck
54-Inch Convertible Deck
-MISCELLANEOUS
Specifications
Component Location
Tests and Adjustments
Repair

What you get

You will be given access to the link for downloading high quality PDF Manual (.pdf / .zip file) immediately after you pay.
