Factory Shop Manual For Kawasaki Wheel Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 695; 117
Number: (93216-00226 (september 2014); 93216-00230 (june 2009)); 93216-00200 (june 2004)
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Kawasaki Wheel Loader
115ZV
Serial No. 11C4-0101~; 11C4-9001~
Serial No. 11C4-5001-
Contents
-GENERAL INFORMATION
How to Use Manual
Outline
-MEASUREMENT FOR PERFORMANCE CHECK
Cautions on Safety
Standard Measurement Values for Performance Check
-FUNCTION & STRUCTURE
Chassis
-CHECK & ADJUSTMENT
Chassis
-FUNCTION & STRUCTURE
Power
-CHECK & ADJUSTMENT
Power
-FUNCTION & STRUCTURE
Torque Converter and Transmission
-CHECK & ADJUSTMENT
Torque Converter and Transmission
-FUNCTION & STRUCTURE
Hydraulic
-CHECK & ADJUSTMENT
Hydraulic
-FUNCTION & STRUCTURE
Brake
-CHECK & ADJUSTMENT
Brake
-FUNCTION & STRUCTURE
Electrical
-CHECK & ADJUSTMENT
Electrical
-FUNCTION & STRUCTURE
Operator Station
-CHECK & ADJUSTMENT
Operator Station
-TROUBLESHOOTING
Cautions Regarding Troubleshooting
How to Use Quick Troubleshooting Table
Safety Precautions
Quick Troubleshooting Table
Torque Converter and Transmission Group
Hydraulic
Brake
Electrical
Operator Station
-MEASUREMENT FOR PERFORMANCE CHECK
Standard Measurement Values for Performance Check
Preparation for Performance Check

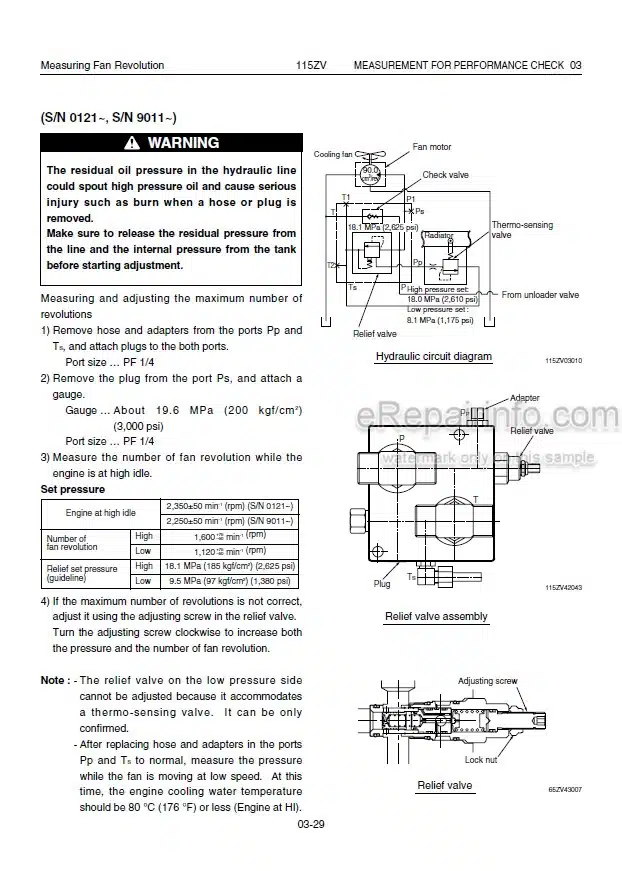

Measuring Engine Speed
Measuring Clutch Oil Pressure and Time Lag
Measuring Cylinder Drift
Measuring Boom Cycle Time
Measuring Full Steering Cycle Time
Measuring Relief Valve Setting Pressures
Measuring Fan Revolution
Checking Brake Performance
Measuring Brake Line Oil Pressure
Measuring Accumulator Circuit Charging Time
Measuring Number of Brake Pedal Applications
Measuring Declutch Engagement
