Kobelco LK850-II Shop Manual Wheel Loader S5RJ0002E manuals in PDF

$19.95

Factory Shop Manual For Kobelco Wheel Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

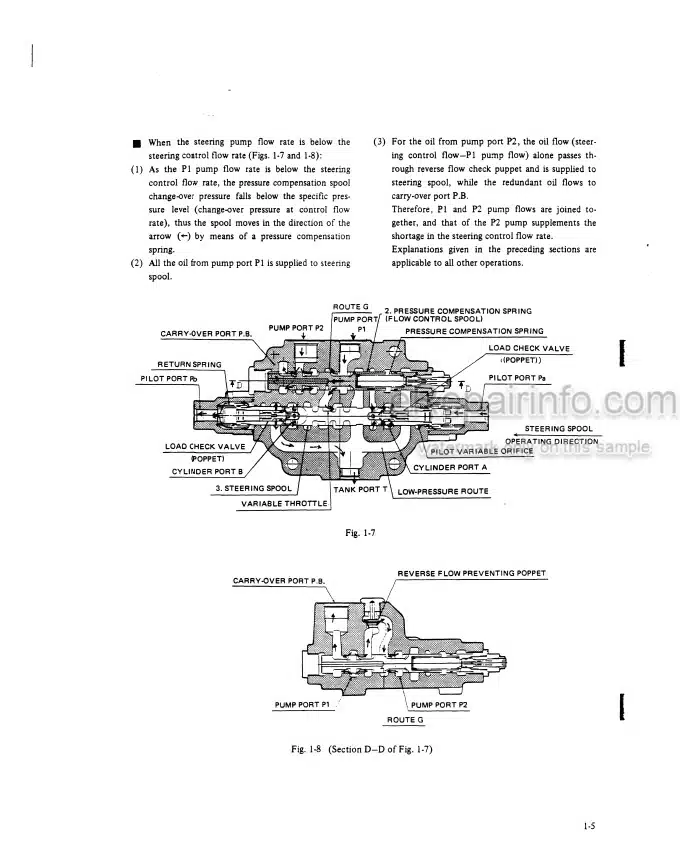

Photo 9 - Kobelco LK850-II Shop Manual Wheel Loader S5RJ0002E
Kobelco LK850-II Shop Manual Wheel Loader S5RJ0002E $19.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Shop Manual For Kobelco Wheel Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 539
Number: SSRJ0002E (July 1988)
Bookmarks: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Kobelco Wheel Loader
LK850-II

Contents

-GENERAL
Specification
Main Component Weight
Maintenance Standards
Working Standard
-SYSTEMS
Drive System
Hydraulic System
Boom Linkage & Pivot Pin
Steering System
Brake System
Electrical System
-COMPONENTS
Hydraulic Pump – Transmission
Control Valve – Orbitrol – Steering Valve – Pilot Valve – Brake Valve
Axle – Stop Valve
Tire
Hydraulic Cylinder – Power Cluster
Air Dryer
