Factory Parts Manual For Kobelco Mark V SK200, Mark V SK200LC Hydraulic Excavator, Mitsubishi 6D34-T Diesel Engine. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 588
Number: S3YN1520 2
Parts List: Yes

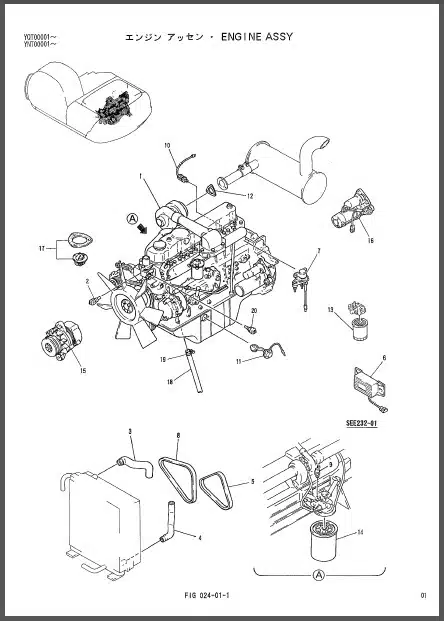

Parts Exploded view: Yes
Model
Kobelco Mark V SK200
Kobelco Mark V SK200LC
Engine
Mitsubishi 6D34-T Diesel Engine
Contents
1. Kobelco Mark V SK200; Mark V 200LC
2. Mitsubishi 6D34-T Diesel Engine
1. Kobelco Mark V SK200; Mark V 200LC
Absorber, Shock
Accumulator
Accelerator
Amplifier (Air-Con)
Arm
Arm Cylinder
Arm Extension
Battery
Block (Solenoid)
Block Manifold
Bonnet
Boom
Boom Cylinder
Box Fuse
Breather
Bucket
Cab
Cleaner Air Element
Compressor (Air-Con)
Condenser (Air-Con)
Conditioner Air
Control Box
Control, Lever
Controller
Counterweight
Cover Under
Cutter Side
Cylinder (Bucket)
Damper
Element Kit (Hyd)
Element Filter (Hyd)-
Engine
Filter
Filter.Fuel
Filter Oil
Flasher Unit
Frame Low
Frame.Upp
Gauge.Level (Tank.Hyd)
Grille
Grip (Att Boost Switch)
Grip (Horn Switch)
Grip (Travel Speed Select)
Guard Fan
Handle (Seat)
Harness (Attachments)
Harness (Controller)
Harness (Engine)
Harness (Upp)
Heater Relay
Horn
Hose Radiator
Hub Coupling
Idler
Idler Adjust
Indicator
Joint St. Ievel
Lamp
Level Sensor
Lever (Control Box)
Lever.Propel
Light
Mat.Floor
Meter.Hour
Mirror.Back
Motor.Propel
Muffler
Pedal
Plate.Floor
Potentiometer
Press Switch
Pulley
Pump
Radiator
Relay (Key Switch)
Relay.Battery
Ring.Slewing
Roller.Track
Roller.Upp
Seal.Dust
Seat
Sending Unit
Sending Unit.Thermo
Sensor Press
Sprocket
Starter Safety Relay
Strainer
Strainer.Suction
Spring Gas
Switch (Mode Release)
Switch (Parking Brak Release)
Switch, Key
Switch, Level (Tank.Hyd)
Switch, Limit
Tank (Washer)
Tank (Water, Sub)
Tank, Fuel
Tank.Hyd
Thermostat
Tooth
Tool
Track Link
V-Belt
Valve.Check
Valve Control
Valve Pilot
Valve Solenoid
-HYDRAULIC COMPONENTS
Valve, Control
Motor (Swing. Propelling)
Pump
Cylinder
Other
2. Mitsubishi 6D34-T Diesel Engine
-ENGINE
Service Cylinder Head Assy
Service Cylinder Block Assy
Liner & Piston Kit
Service Crankshaft Assy
Engine Overhaul Gasket Kit
Rocker Cover & Breather
Cylinder Head
Cylinder Block
Oil Pan, Filler & Gauge
Flywheel & Housing
Piston, Conrod & Crankshaft
Camshaft & Valve
Timing Gear
Attaching Parts
-LUBRICATION
Oil Pump & Strainer
Oil Filter
Oil Cooler
Oil Line
-FUEL
Fuel Filter & Hose
Fuel Injection Pump General
Injection Pump
Governor
Fuel Feed Pump
Coupling
Injection Pipe & Nozzle
Fuel Return Hose
-COOLING
Water Pump & Fan
Water Pipe & Thermostat
-INTAKE & EXHAUST
Inlet Manifold
Exhaust Manifold
Turbocharger
-ENGINE ELECTRICAL
Starter
Alternator & Regulator
-STEERING
Power Steering Oil Pump
-CAB & BODY
Plate & Label
-CHASSIS ELECTRICAL
Fuse & Relay Box
Chassis Harness Equipment
