Factory Parts Manual For Kobelco Mark VI 350LC-6E Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 201
Number: S3LC04105ZE03
Bookmarks: Yes
Parts List: Yes

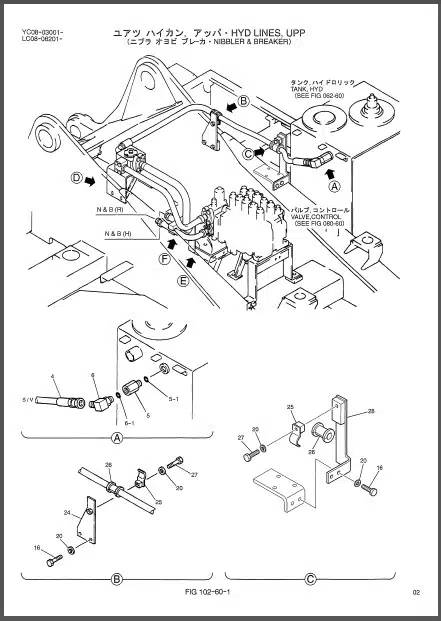

Parts Exploded view: Yes
Model
Kobelco Mark VI SK350LC-6E
Attachment
3-Piece Demolition Att.
Contents
-UPPER GROUP
Frame Assy.Upp
Counter Weight Assy
Guard Install
Valve Install
Hyd Lines Upp
Control Lines Remote
Plate Group Floor
Cab & Guard Assy
Cab Assy
Guard Install
Cover Assy Under
Panel Assy Instrument
Controller Group
Harness Assy Upp
Harness Assy
Harness Assy Cab
Harness Assy.Upp
Cover Assy.Under
-ATTACHMENT GROUP
Boom. Main 3.33M
Boom.Insert 2.65M
Boom. Front
Boom. Inter 2.3M
Boom. Main Group
Boom.Insert Group
Boom.Front Group
Boom.Inter Group
Hyd Lines. Boom 3.33M
Hyd Lines. Boom Insert
Hyd Lines. Boom Front
Hyd Lines.Boom Inter
Hyd Lines.Cylinder
Cylinder Install
Light Install Boom
Arm Assy 5.85M
Hyd Lines Arm 5.85M
Harness Assy Boom
Harness Assy Boom Main
Harness Assy Boom Insert
Harness Assy Boom Front
Harness Assy Boom Inter
Harness Assy.Arm
Sensor Angle
Lub Lines Upp
Switch Install
Sensor Angle
Plug Assy
Connector Assy
Bucket Install
Water Lines.Nibbler
-NAME PLATE
Name Plate Install
