Factory Parts Manual For Kobelco Mark VI SK200V, Mark VI SK200LCV Hydraulic Excavator, Mitsubishi 6D31-T, 6D34-T Diesel Engine . Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 730
Number: S3YN1521
Parts List: Yes

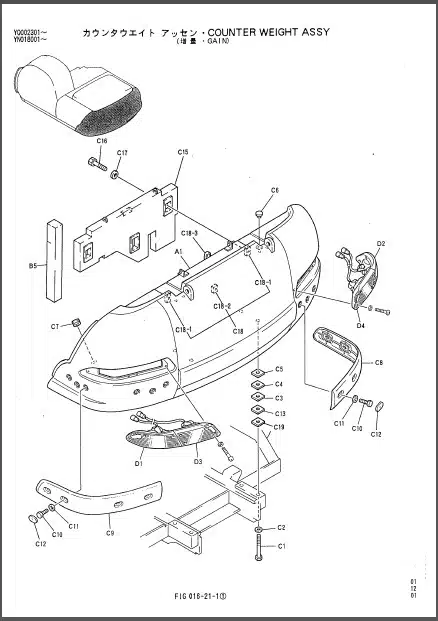

Parts Exploded view: Yes
Model
Kobelco Mark VI SK200V
Kobelco Mark VI SK200LCV
Engine
Mitsubishi 6D31-T, 6D34-T Diesel Engine
Contents
1.Kobelco Mark VI SK200V, Mark VI SK200LCV Hydraulic Excavator
2.Mitsubishi 6D31-T, 6D34-T Diesel Engine
1.Kobelco Mark VI SK200V, Mark VI SK200LCV Hydraulic Excavator
Absorber Shock
Accumulator
Accelerator
Amplifier (Air-Con)
Arm
Arm Cylinder
Arm Extension
Arm Short
Arm Long
Battery
Block (Solenoid)
Block Manifold
Bonnet
Boom
Boom Cylinder (
Boxfuse
Breather
Bucket
Bumper
Cab
Cleaner Air Element
Compressor (Air-Con)
Condenser (Air-Con)
Conditioner Air 1
Control Box
Control Lever
Counterweight
Coverunder
Cutter Side
Cylinder (Bucket)
Damper
Element Kit (Hyd)
Element Filter (Hyd)
Engine
Filter (Breather)
Filter Fuel
Filter Oil
Flasher Unit
Frame Low
Frame, Upp
Gauge, Cluster
Gauge level (Tankhyd)
Grill
Grip
Guard Fan
Handle (Seat)
Harness (Attachments)
Harness (Engine)
Harness (Upp)
Heater
Heater Relay
Horn
Hoseraoiator
Hubcoupling
Idler
Idler Adjust
Indicator
Joint, Swivel
Lamp
Level Sensor, Oil
Lever (Control Box)
Lever Propel
Lever Throttle
Light
Mat, Floor
Meter Hour
Mirror Back
Motor Propel
Motor Suing
Muffler
Panel (Air-Con)
Pedal
Platefloor
Potentiometer
Press Switch Oil
Pulley
Pump
Pump gear
Radiator
Relay (Key Switch)
Relaybattery
Ring Slewing
Ripper
Roller Track
Roller Upp
Sealdust
Seat
Sending Unit
Sending Unit Thermo
Sensorpress
Sprocket
Starter Safety Relay
Strainer
Strainer Suction
Spring gas
Sun Shade
Switch (Heater)
Switch (Mode Release)
Switch Key
Switch Level (Tankhyd)
Switch Limit
Tank (Washer)
Tank (Water Su8)
Tank Fuel
Tank Hyd
Thermostat
Tooth
Tool
Track Link
V-Belt
Valve Check
Valve Control
Valve Pilot
Valve Pilot (Propel)
Valve Selector
Valve Solenoid
-HYDRAULIC COMPONENTS
Valve, Control
Motor
Pump
Cylinder
Other
2.Mitsubishi 6D31-T, 6D34-T Diesel Engine
-ENGINE
Short Engine Assy
Service Cylinder Head Assy
Service Cylinder Block Assy
Liner S Piston Kit
Service Crankshaft Assy
Oil Seal Kit
Engine Overhaul Gasket Kit
Rocker Cover & Breather
Cylinder Head
Cylinder Block
Oil Pan, Filler & Gauge
Flywheel & Housing
Piston, & Crankshaft
Camshaft & Valve
Timing Gear
Attaching Parts
-LUBRICATION
Oil Pump & Strainer
Oil Filter
Oil Cooler
Oil Line
-FUEL
Fuel Filter & Hose
Fuel Injection Pump General
Injection Pump
Governor
Automatic Timer
Fuel Feed Pump
Injection Pipe & Nozzle
Fuel Return Hose
-COOLING
Water Pump & Fan
Water Pipe & Thermostat
-INTAKE & EXHAUST
Inlet Manifold
Exhaust Manifold
Turbocharger
-ENGINE ELECTRICAL
Starter
Alternator & Regulator
-STEERING
Power Steering Oil Pump
-CAB & BODY
Plate & Label
-CHASSIS ELECTRICAL
Fuse & Relay Box
Chassis Harness Equipment
