Kobelco Mark VI SK450 450LC 480 480LC Parts Manual Hydraulic Excavator Breaker Nibbler & Breaker S3LS01602ZE01 manuals in PDF

Factory Parts Manual For Kobelco SK450, SK450LC, SK480, SK480LC Hydraulic Excavator Attachments-Breaker, Nibbler & Breaker. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 78
Number: S3LS01602ZE01
Parts List: Yes

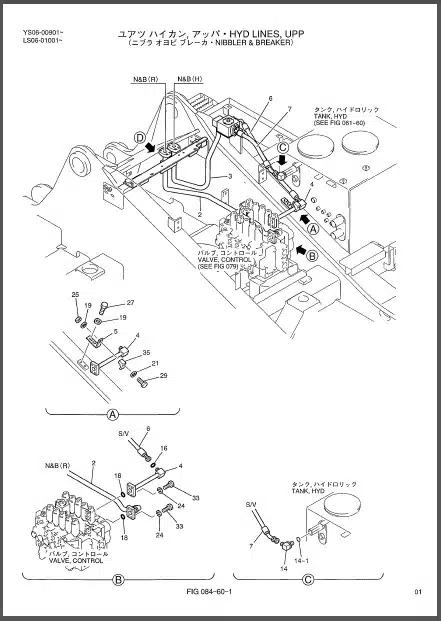

Parts Exploded view: Yes

Model

Kobelco SK450
Kobelco SK450LC
Kobelco SK480
Kobelco SK480LC

Attachments

Breaker
Nibbler & Breaker

Contents

-UPPER GROUP
Frame Assy Upp
Tank Assy Hyd
Valve Instal
Hyd Lines Upp
Hyd LinesUpp
Hyd Lines Upp
Control LinesRemote
Control Lines.Remote
Plate Group.Floor
-ATTACHMENT GROUP
Boom Hoe 7. Om
Hyd Lines Boom 7 On
Arm Assy 3.45M
Arm Assy, 3.45M
Hyd Lines Arm 345M
Connector Assy
Name Plate
Name Plate Instal
