Kobelco SK115SR-1E SK115SR-1ES SK135SR-1E To SK135SRLC-1ES Parts Manual Hydraulic Excavator Attachments manuals in PDF

Factory Parts Manual For Kobelco SK115SR-1E, SK115SR-1ES, SK135SR-1ES, SK135SRLC-1E, SK135SRLC-1ES Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 222
Number: S3YV01804ZE01
Parts List: Yes

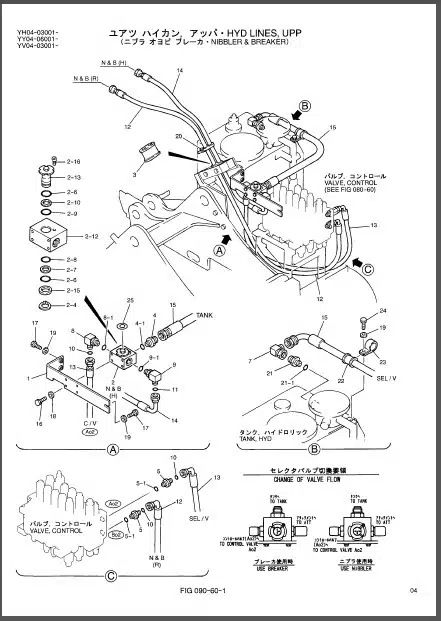

Parts Exploded view: Yes

Model

Kobelco SK115SR-1E
Kobelco SK115SR-1ES
Kobelco SK135SR-1ES
Kobelco SK135SRLC-1E
Kobelco SK135SRLC-1ES

Attachments

Breaker
Nibbler & Breaker
Extra
Extra & Breaker
Extra & Nibbler & Breaker

Contents

-UPPER GROUP
Frame. Upp
Valve Install
Hyd Lines. Upp
Hyd Lines.Return
Control Lines.Remote
Plate Group.Floor
Guard Install
-ATTACHMENT GROUP
Boom.Hoe 4.26M
Boom.Hoe 4.6M
Hyd Lines. Boom 4.26M
Hyd Lines. Boom 4.6M
Arm Group
Arm Group.Long 2.7M
Arm Group.Long 2.95M
Arm 2.2M
Arm 2.45M
Arm.Short 1.9M
Arm.Long 2.7M
Arm.Long 2.95M
Hyd Lines.Arm 2.2M
Hyd Lines.Arm 2.45M
Hyd Lines. Arm 1.9M
Hyd Lines.Arm 2.2M
Hyd Lines.Arm 2.45M
Hyd Lines. Arm 2.7M
Hyd Lines. Arm 2.95M
-NAME PLATE
Name Plate Install

What you get

You will be given access to the link for downloading high quality PDF Manual (.pdf / .zip file) immediately after you pay.
