Kobelco SK200SR SK200SRLC Parts Manual Hydraulic Excavator Attachment Dozer S3YB03402ZE02 manuals in PDF

Factory Parts Manual For Kobelco SK200SR, SK200SRLC Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 88
Number: S3YB03402ZE02
Parts List: Yes

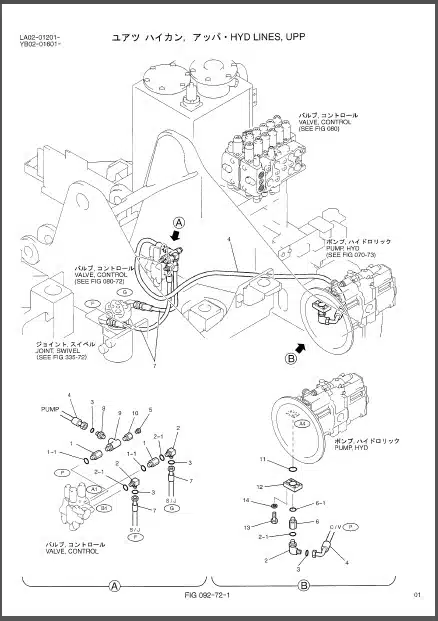

Parts Exploded view: Yes

Model

Kobelco SK200SR
Kobelco SK200SRLC

Attachment
Dozer

Contents

-UPPER GROUP
Frame. Upp
Power Take-Off Assy
Valve Install
Hyd Lines.Upp
-LOW GROUP
Frame. Low
Joint Install. Swivel
Hyd Lines. Low
Dozer Assy
Dozer Group
Dozer Install
Cylinder Install
Hyd Lines.Cylinder
-HYDRAULIC COMPONENTS
Cylinder Assy. Dozer
Joint. Swivel
