Factory Parts Manual For Kobelco SK200SR, SK200SRLC Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 110
Number: S3YB01801ZE01
Parts List: Yes

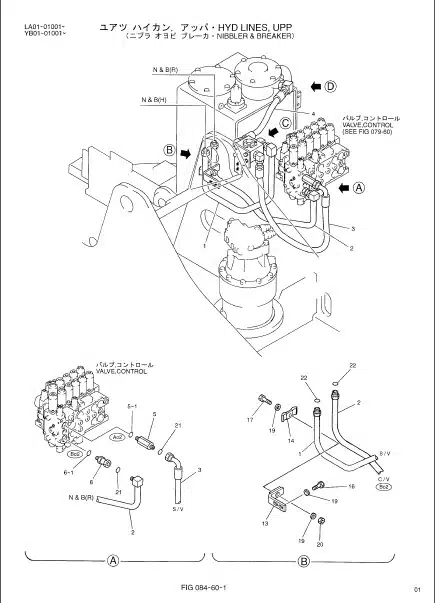

Parts Exploded view: Yes
Model
Kobelco SK200SR
Kobelco SK200SR LC
Attachments
Extra
Extra & Breaker
Extra & Nibbler & Breaker
Breaker
Nibbler & Breaker
Contents
-UPPER GROUP
Frame, Upp
Tank Assy, Hyd
Power Take-Off Assy
Valve Instal
Hyd Lines, Upp
Control Lines, Remote
Lock Assy
Plate Group, Floor
Panel Assy, Instrument
-ATTACHMENT GROUP
Boom, Hoe 5.05M
Hyd Lines, Boom 5.05M
Arm Group
Arm.2.6M
Hyd Lines, Arm 2.6M
Connector Assy
-NAME PLATE
Name Plate Instal
