Factory Parts Manual For Kobelco SK210-6ES, SK210LC-6ES Hydraulic Excavator; Mitsubishi 6D34-TLE2A, 6D34-TLU2D. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 654
Number: S3YN00015ZE02
Parts List: Yes

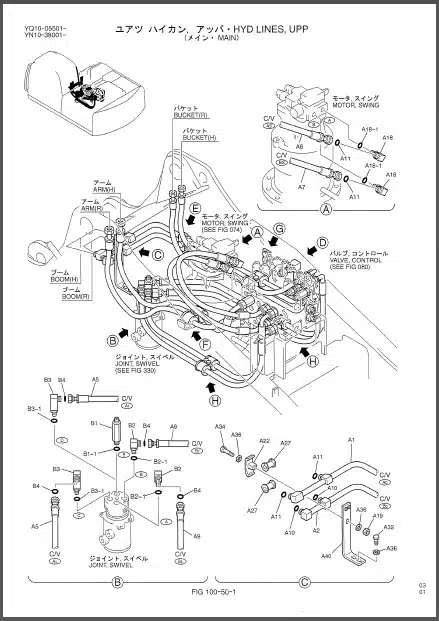

Parts Exploded view: Yes
Model
Kobelco Sk210-6ES
Kobelco SK210LC-6ES
Engine
Mitsubishi 6D34-TLE2A, 6D34-TLU2D Diesel Engine
Contents
1.Kobelco Sk210-6ES, SK210LC-6ES
2.Mitsubishi 6D34-TLE2A, 6D34-TLU2D
1.Kobelco Sk210-6ES, SK210LC-6ES
Actuator
Adhesive
Adiabatic
Adjuster
Adjuster Seat
Air-Cleaner.Element (Outer)
Air-Con Filter
Alternator
Amplifier
Antenna
Arm.Long
Arm Long
Arm Short
Arm Std
Arm.Wiper
Back-Mirror
Battery
Belt Seat
Blade Hipper
Blower Motor
Bonnet
Boom Std (5.65M)
Boot
Breather
Bucket
By-Pass Valve
Cab
Case
Catch
Catch, Door
Cigarette.Lighter
Clamp Half
Cleaner Air
Compressor.Air
Condenser
Conditioner
Conditioner Air
Control Box
Control Engine
Controller
Converter
Cooler Oil
Core.Heater
Counterweight
Coupling
Cover Under
Cylinder Arm
Cylinder.Boom
Cylinder Bucket
Damper
Dipstick
Door Cab
Drier.Air
Driver
Ouct
Element
Element Filter
Eleot Fuel
Element Kit
Element Oil
Engine
Evaporator
Extinguisher
Fastener
Filter-Element
Fuel Filter-Element.Hyd
Filter-Element Hyd
Filter Element Oil
Filter Inline
Filter List
Float
Form Seat
Frame Low
Frame Upp
Gauge
Gauge Cluster
Gauge, Level
Gear Ring
Glow Relay
Grille
Grip
Grip (L.H)
Grip (R.H)
Guard
Guide, Track
Gutter Rain
Hammer
Handle
Handle (L.H)
Handle (R.H)
Handle Ratchet
Harness
Harness Boom
Harness.Cab
Harness.Engine
Harness Upp
Harness Upp (Plate Floor)
Horn
Hose.Radiator
Idler
Idler Adjust
Idler Crawler
Indicator
Intercooler
Joint Swivel
Key
Lamp
Lamp.Flasher
Level Sensor.Oil
Lever
Light
Light Boom
Light.Room
Link Bucket
Lock
Nat Floor
Mirror
Motor Elec
Motor.Governor
Motor Propel
Motor Propelling
Motor Swing
Mount Rubber
Muffler
Nut (Left-Hand)
Panel Instrument
Pedal(L.H)
Pedal (R.H)
Pilot Filter
Plate Floor
Potentiometer
Power Take-Off
Press Switch.Oil
Protector
Pulley
Pump
Pump.Fuel
Radiator
Receiver
Reduction, Swing
Relay
Relay Battery
Relay Flasher
Resistor
Ring Slewing
Roller Track
Roller Track Low
Roller Upp
Roof
Seal Oust
Seal Floating
Seat
Sending Unit Fuel
Sensor
Sensor.Level
Sensor Press (H.P)
Sensor Press (L.P)
Sensor Speed
Sensor Thermo
Separator Water
Shoe
Shoe Flat
Shoe Pad
Shoe Rubber-Pad
Shoe Triangle
Speaker
Spring Gas
Sprocket
Starter
Starter Safety Relay
Starter Safety Relay (Inp)
Step
Strainer
Sun Visor
Switch
Switch (Auto Idle Stop)
Switch (Cab Working Light)
Switch (Heavy Lift)
Switch (Overload Cut)
Switch (Rotary Light)
Switch (Swing Flasher)
Switch (Swing Parking Release)
Switch Key
Switch Limit
Switch Press Oil
Tank Fuel
Tank Hyd
Tank Water
Tank Water Sub
Thermistor
Timer
Tool
Track Link
Tray Ash
Valve
Valve Check
Valve, Control
Valve Holding
Valve.Pilot
Valve Stop
V-Belt
W Element
Window Fr
Wiper
-COMPONENT PARTS
Electrical Components
Hydraulic Components
Pneumatic Components
2.Mitsubishi 6D34-TLE2A, 6D34-TLU2D
-ENGINE
Service Cylinder Head Assy
Service Cylinder Block Assy
Liner & Piston Kit
Service Crankshaft Assy
Engine Overhaul Gasket Kit
Rocker Cover & Breather
Cylinder Head
Cylinder Block
Oil Pan, Filler 6 Gauge
Flywheel & Housing
Piston, Conrod & Crankshaft
Camshaft & Valve
Timing Gear
Attaching Parts
-LUBRICATION
Oil Pump & Strainer
Oil Filter
Oil Cooler
Oil Line
-FUEL
Fuel Lins & Water Separator
Fuel Filter & Hcse
Fuel Injection Pump General
Injection Pump
Governor
Automatic Timer
Fuel Feed Pump
Injection Pipe & Nozzle
Fuel Return Hose
-COOLING
Water Pump & Fan
Water Pipe & Thermostat
-INTAKE & EXHAUST
Inter Cooler
Inlet Manifold
Exhaust Manifold
Turbocharger
-ENGINE ELECTRICAL
Starter
Alternator & Regulator
-STEERING
Power Steering Oil Pump
-CAB & BODY
Plate & Label
-CHASSIS ELECTRICAL
Fuse & Relay Box
Chassis Harness Equipment
