Factory Parts Manual For Kobelco SK210, SK210LC Hydraulic Excavator, Mitsubishi 6D34-TE1 Diesel Engine. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 740
Number: S3YN00003ZE
Parts List: Yes

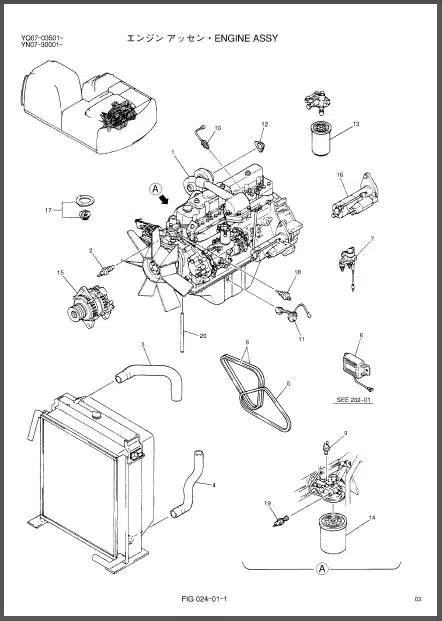

Parts Exploded view: Yes
Model
Kobelco SK210
Kobelco SK210LS
Engine
Mitsubishi 6D34-TE1 Diesel Engine
Contents
1.Kobelco SK210, SK210LS
2.Mitsubishi 6D34-TE1
1.Kobelco SK210, SK210LS
Air-Cleaner Element
Accumulator
Actuator
Alternator
Antenna
Arm
Back Mirror
Battery
Belt.Seat
Blower.Motor
Bonnet
Boom
Box.Fuse
Breather.Filter
Bucket
Cab
Catch
Cooler Oil
Compressor (Air-Con)
Condenser (Air-Con)
Conditioner.Air
Control.Engine
Control Box
Controller (Air-Con)
Controller (Mecha-Tro)
Core Heater
Counterweight
Coupling
Cover Under
Cutter.Side
Cylinder (Arm)
Cylinder (Boom)
Cylinder (Bucket)
Dipstick
Door
Drier Air
Duct
Element Filter
Element Kit
Engine
Evaporator
Extinguisher
Fan Guard
Filter(Air-Con)
Filter Fuel
Filter Oil
Frame.Low
Frame Upp
Gauge.Cluster
Gauge.Level (Hyd, Tank)
Glow, Relay
Grille
Grip (Horn)
Grip (Poier Boost)
Grip (Travel Speed Select)
Guard
Guide
Handle (Door)
Harness
Harness (Air-Con)
Harness (Attachment)
Harness (Controller)
Harness (Engine)
Harness (Upp)
Hose.Radiator
Horn
Hub.Coupling
Idler
Idler Adjust
Indicator
Intercooler
Joint Swivel
Lamp Flasher
Lever.Control
Lever.Propel
Light
Lighter, Cigarette
Light Room
Link, Bucket
Lock
Manifold
Mat.Floor
Meter.Hour
Motor.Governor Motor
Propel
Motor.Shing
Muffler
Oil Level Sensor
Oil Press Sw
Panel (Air-Con)
Panel Instrument
Pedal
Pilot Filter
Plate, Floor
Potentiometer
Pulley
Pump
Pump.Fuel
Radiator
Receiver (Air-Com)
Reduction (Suing)
Relay
Relay, Battery
Relay, Safety (Starter)
Repair Kit
Resistor
Ring, Slewing
Roller Track
Roller Upp
Seat
Sending Unit
Sensor
Sensor Press
Sensor, Thermo
Shoe
Speaker
Spring Gas
Sprocket
Starter
Step
Strainer
Strainer Suction
Sb Itch (Kpss Release)
Switch (Sung Parking Release)
Switch (Warm-Up)
Sb Itch (Work Light)
Switch Key
Switch Limit
Switch Thermo
Tank Fuel
Tank.Hyd
Tank.Water.Sub
Thermistor
Thermostat
Tool
Track Link
Tuner
V-Belt
Valve Bypass
Valve.Control
Valve Hold I Ng
Valve.Pilot (Remote Control)-
Valve Pilot (Travel)
Valve Selector
Valve Solenoid
Washer Tank.Window
Washer Window
Water Separator
Wiper
-COMPONENT PARTS
Electrical Components
Hydraulic Components
Pneumatic Components
2.Mitsubishi 6D34-TE1
-ENGINE
Service Cylinder Head Assy
Service Cylinder Block Assy
Liner & Piston Kit
Service Crankshaft Assy
Engine Overhaul Gasket Kit
Rocker Cover & Breather
Cylinder Head
Cylinder Block
Oil Pan, Filler & Gauge
Flywheel & Housing
Piston, Conn Rod & Crankshaft
Camshaft & Valve
Timing Gear
Attaching Parts
-LUBRICATION
Oil Pump & Strainer
Oil Filter
Cil Cooler
Oil Line
-FUEL
Fuel Filter & Hose
Fuel Injection Pump General
Injection Pipe & Nozzle
Fuel Return Hose
-COOLING
Water Pump & Fan
Water Pipe & Thermostat
-INTAKE & EXHAUST
Inlet Manifold
Exhaust Manifold
Turbocharger
-ENGINE ELECTRICAL
Starter
Alternator & Regulator
-STEERING
Power Steering Oil Pump
-CAB & BODY
Plate & Label
-CHASSIS ELECTRICAL
Fuse & Relay Box
Chassis Harness Equipment
