Kobelco SK235SR-1E SK235SRLC-1E SK235SRLC-1ES Parts Manual Hydraulic Excavator S3YF00005ZE01 manuals in PDF

$14.95

Factory Parts Manual For Kobelco SK235SR-1E, SK235SRLC-1E, SK235SRLC-1ES Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.

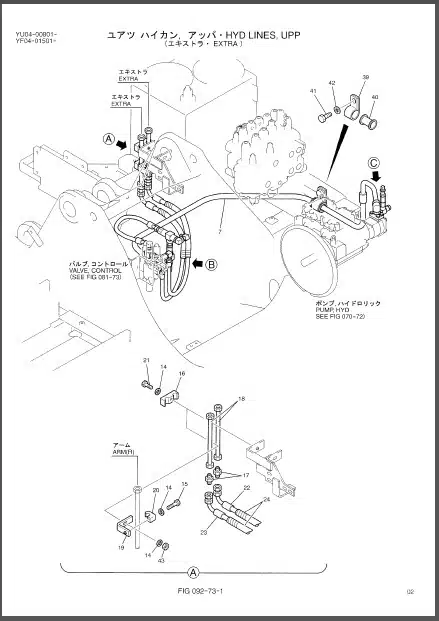

Photo 7 - Kobelco SK235SR-1E SK235SRLC-1E SK235SRLC-1ES Parts Manual Hydraulic Excavator S3YF00005ZE01
Kobelco SK235SR-1E SK235SRLC-1E SK235SRLC-1ES Parts Manual Hydraulic Excavator S3YF00005ZE01 $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Parts Manual For Kobelco SK235SR-1E, SK235SRLC-1E, SK235SRLC-1ES Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 110
Number: S3YF01803ZE01
Parts List: Yes
Parts Exploded view: Yes

Model

Kobelco SK235SR-1E
Kobelco SK235SR LC-1E
Kobelco SK235SR LC-1ES

Attachments

Extra
Extra & Breaker
Extra & Nibbler & Breaker
Breaker
Nibbler & Breaker

Contents

-UPPER GROUP
Power Take-Off Assy
Valve Install
Hyd Lines. Pump
Hyd Lines. Upp
Hyd Lines. Return
Control Lines.Remote
Control Lines. Valve
Lock Assy
Plate Group.Floor
Panel Assy.Instrument
Controller Group
-ATTACHMENT GROUP
Boom. Hoe 5.65M
Hyd Lines. Boom 5. 65M
Arm 2.94M
Arm Long 3 33M
Arm Group
Hyd Lines Arm 2.94M
Hyd Lines Arm 3.33M
Connector Assy
-NAME PLATE
Name Plate Install
