Kobelco SK235SR-1E SK235SRNLC-1E SK235SRNLC-1ES Parts Manual Hydraulic Excavator S3YF03405ZE01 manuals in PDF

$14.95

Factory Parts Manual For Kobelco SK235SR-1E, SK235SRNLC-1, E SK235SRNLC-1ES Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.

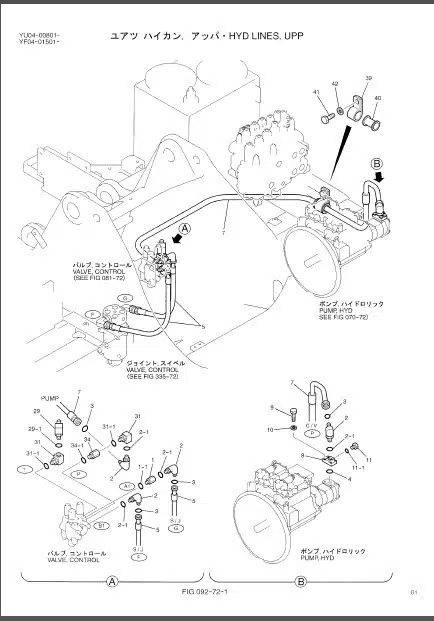

Photo 7 - Kobelco SK235SR-1E SK235SRNLC-1E SK235SRNLC-1ES Parts Manual Hydraulic Excavator S3YF03405ZE01
Kobelco SK235SR-1E SK235SRNLC-1E SK235SRNLC-1ES Parts Manual Hydraulic Excavator S3YF03405ZE01 $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Parts Manual For Kobelco SK235SR-1E, SK235SRNLC-1, E SK235SRNLC-1ES Hydraulic Excavator Attachments. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 46
Number: S3YF03405ZE01
Parts List: Yes
Parts Exploded view: Yes

Model

Kobelco SK235SR-1E
Kobelco SK235SR NLC-1E
Kobelco SK235SR NLC-1ES

Attachment
Dozer

Contents

-UPPER GROUP
Power Take-Off Assy
Valve Instal
Hyd Lines Pump
Hyd Lines Upp
Hyd Lines Swivel
Hyd LinesReturn
Control LinesRemote
-LOW GROUP
Frame Low
Frame Low
Joint Instal Swivel
Hyd Lines Low
Dozer Assy
Dozer Group
Dozer Instal
Cylinder Instal
Hyd Lines.Cylinder
-NAME PLATE
Name Plate Instal
-HYDRAULIC COMPONENTS
Cylinder Assy.Dozer (R.H)
Cylinder Assy. Dozer (L.H)
Joint.Swivel
