Factory Parts Manual For Kobelco SK250LC-6E, SK250NLC-6E Hydraulic Excavator; Mitsubishi 6D34-TLEE, 6D34-TLE2A, 6D34-TLU2B, 6D34-TLU2F Diesel Engine. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 696
Number: S3LQ00006ZE06
Parts List: Yes

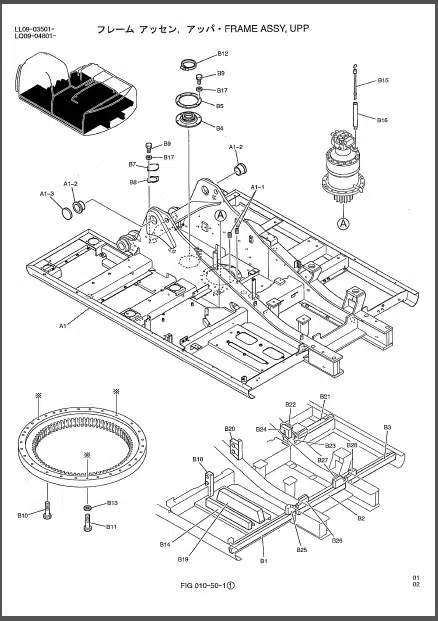

Parts Exploded view: Yes
Model
Kobelco SK250LC-6E
Kobelco SK250NLC-6E
Engine
Mitsubishi 6D34-TLEE, 6D34-TLE2A, 6D34-TLU2B, 6D34-TLU2F Diesel Engine
Contents
1.Kobelco SK250LC-6E, SK250NLC-6E
2.Mitsubishi 6D34-TLEE, 6D34-TLE2A, 6D34-TLU2B, 6D34-TLU2F
1.Kobelco SK250LC-6E, SK250NLC-6E
Actuator
Adhesive
Adiabatic
Adjuster
Air-Cleaner, Element (Outer)
Air-Ccn Filter
Alternator
Amplifier
Antenna
Arm.Long
Arm Long
Arm Short
Arm Std
Back Mirror
Battery
Belt Seat
Blade Wiper
Blower Motor
Bonnet
Boom Std
Boot
Breather
Bucket
Bulb
By-Pass Valve
Cab
Case
Catch
Catch Door
Cigarette Lighter
Clamp Half
Cleaner Air
Compressor
Compressor Air
Condenser
Conditioner
Conditioner Air
Control Box
Control Engine
Controller
Converter
Cooler Oil
Core, Heater
Counterweight
Coupling
Cover Under
Cylinder Arm
Cylinder.Boom
Cylinder Bucket
Damper
Dipstick
Drier Air
Elec Upp
Element
Element Filter
Element Filter (Inner)
Element Fuel
Element Kit
Element Oil
Engine
Evaporator
Fastener
Filter
Filter Element Fuel
Filter-Element
Filter Element Oil
Filter Inline
Float
Form Seat
Frame Low
Frame Upp
Gauge
Gauge Cluster
Gauge, Level
Gear Ring
Glon Relay
Grille
Grip
Grip (L.H)
Grip (R.H)
Guard
Guide Track
Gutter Rain
Hanner
Handle
Handle Ratchet
Harness
Harness Boom
Harness Cab
Harness Engine
Harness Upp
Horn
Hose Radiator
Idler
Idler Adjust
Idler, Crawler Indicator
Intercooler
Joint Swivel
Key
Lamp
Lamp Flasher
Level Sensor.Oil
Lever
Light
Light.Book
Light.Room
Link Bucket
Mat Floor
Meter, Hour
Mirror
Motor, Elec
Moior Governor
Motor Propel
Motor Propelling
Motor Swing
Mount, Rubber
Muffler
Nipple
Panel Instrument
Pedal
Pilot Filter
Plate Floor
Potentiometer
Power Take-Off
Press Switch Oil
Pulley
Pump
Radiator
Receiver
Reduction Swing
Relay
Relay Battery
Relay Flasher
Resistor
Ring Slewing
Roller Track
Roller Track.Low
Roller Upp
Roof
Safety Relay
Seal Dust
Seal Floating
Seat
Sensor
Sensor Fuel Level
Sensor Level
Sensor Press (H.P)
Sensor Press (L.P)
Sensor.Speed
Sensor.Thermo
Separator Water
Shoe
Shoe Flat
Speaker
Spring Gas
Sprocket
Starter
Starter Safety Relay
Step
Strainer
Strainer, Suction
Sun Visor
Switch
Switch (Auto Idle Stop)
Switch (Cab Working Light)
Switch (Heavy Lift)
Switch (Over Load Cut)
Switch (Rotary Light)
Switch
Switch.Key
Switch.Limit
Switch Press Oil
Switch Therm
Tank Fuel
Wk. Hyd
Wk. Water
Tank.Water.Sub
Thermistor
Timer
Tool
Track Link
Tray
Valve
Valve Bypass
Valve Check
Valve Control
Valve Holding
Valve.Pilot
Valve.Solenoid
Valve Stop
V-Belt
Window, Fr
Wiper
-COMPONENT PARTS
Electrical Components
Hydraulic Components
Pneumatic Components
2.Mitsubishi 6D34-TLEE, 6D34-TLE2A, 6D34-TLU2B, 6D34-TLU2F
-ENGINE
Service Cylinder Head Assy
Service Cylinder Block Assy
Liner & Piston Kit
Service Crankshaft Assy
Engine Overhaul Gasket Kit
Rocker Cover & Breather
Cylinder Head
Cylinder Block
Oil Pan, Piller & Gauge
Flywheel & Housing
Piston, Conrod & Crankshaft
Camshaft & Valve
Timing Gear
Attaching Parts
-LUBRICATION
Oil Pump & Strainer
Oil Filter
Oil Cooler
Oil Line
-FUEL
Fuel Line & Water Separator
Fuel Filter & Hose
Fuel Injection Pump General
Injection Pump
Automatic Timer
Fuel Feed Pump
Injection Pipe & Nozzle
Fuel Return Hose
-COOLING
Water Pump & Fan
Water Pipe & Thermostat
-INTAKE & EXHAUST
Inter Cooler
Inlet Manifold
Exhaust Manifold
Turbocharger
-ENGINE ELECTRICAL
Starter
Alternator & Regulator
-STEERING
Power Steering Oil Pump
-CAB & BODY
Plate & Label
-CHASSIS ELECTRICAL
Fuse & Relay Box
Chassis Harness Equipment
