Factory Parts Manual For Kobelco SK430-3, SK430LC-3 Hydraulic Excavator; Mitsubishi 6D24-TE1, 6D24-TCE1 Diesel Engine. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 804
Number: S3LS1012
Parts List: Yes

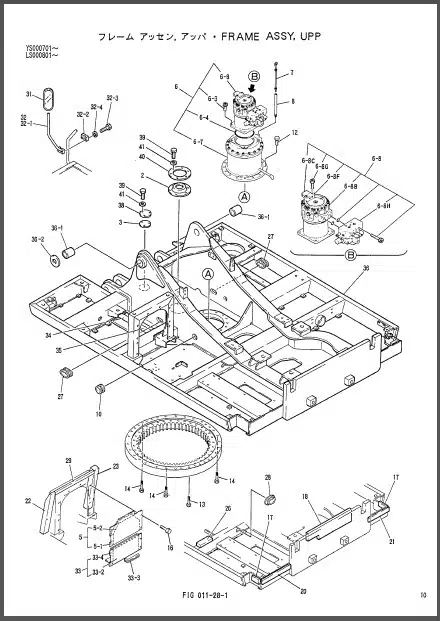

Parts Exploded view: Yes
Model
Kobelco SK430-3
Kobelco SK430LC-3
Engine
Mitsubishi 6D24-TE1, 6D24-TCE1 Diesel Engine
Contents
1.Kobelco SK430-3 SK430LC-3
2.Mitsubishi 6D24-TE1, 6D24-TCE1
1.Kobelco SK430-3 SK430LC-3
-UPPER GROUP
Frame Assy, Upp
Counterweight Assy
Reduction Unit
Tank Assy, Hyd
Tank Assy, Fuel
-CAB & GUARD GROUP
Cab Instal
Cab Assy
Platb Assy, Floor
Seat Assy
Guard Assy
Cover Assy
Cover Assy, Under
-CONTROL GROUP
Controls, Operators
Control Box Assy
Control Lines, Remote
Lever Assy, Propel
-HYD LINES GROUP
Hyd Lines, Upp
-POWER PLANT GROUP
Power Plant
Engine Assy
Engine Install
Power Take-Off Assy
Cleaner Assy, Air
Radiator Assy
Filter Assy
Control Assy, Engine
Panel Assy, Instrument
Controller Assy
Auge, Cluster
Conditioner, Air
Conditioner, Air (Cooler)
Conditioner Install
Conditioner Install (Cooler)
Conditioner Assy, Air
Drier Assy, Air
Conditioner, Air
Conditioner, Air (Cooler)
-ELECTRIC GROUP
Harness Assy
Harness Assy (Inst-Panel)
Harness Assy (Controller)
Battery Assy
Lamp Assy
Light Assy
Light Assy Working
-LOWER GROUP
Low Assy
Low Assy (For Long Crawler)
Idler Assy
Roller Assy Track
Roller Assy Upp
Idler Adjust Assy
Reduction Unit
Hyd Lines Low
Hyd Lines Low (For Long Crawler)
Shoe Assy
Shoe Assy (For Long Crawler)
-ATTACHMENT GROUP
Boom Assy
Arm Assy 3.45M
Bucket Assy
-OPTIONAL PARTS (BODY)
Valve Install
-NAME PLATE & TOOL
Name Plate Install
Label Assy
Tool Assy
Element Kit
-HYDRAULIC COMPONENTS
Valve, Control
Motor (Swing, Propelling)
Pump
Cylinder
Other
2.Mitsubishi 6D24-TE1, 6D24-TCE1
-ENGINE
Short Engine Assy
Service Cylinder Head Assy
Service Cylinder Block Assy
Liner & Piston Kit
Service Crankshaft Assy
Engine Overhaul Gasket Kit
Rocker Cover & Breather
Cylinder Head
Cylinder Block
Oil Pan, Filler & Gauge
Flywheel & Housing
Piston, Conrod & Crankshaft
Camshaft & Valve
Timing Gear
Air Compressor
Attaching Parts
-LUBRICATION
Oil Pump & Strainer
Oil Filter
Oil Cooler
Oil Line
-FUEL
Fuel Filter & Hose
Fuel Injection Pump General
Injection Pump
Governor
Automatic Timer
Fuel Feed Pump
Coupling
Injection Pipe & Nozzle
Fuel Return Hose
-COOLING
Water Pump & Fan
Water Pipe & Thermostat
-INTAKE & EXHAUST
Inter Cooler
Inlet Manifold
Exhaust Manifold
Turbocharger
Exhaust Pipe
Tail Pipe & Muffler
-ENGINE ELECTRICAL
Starter
Alternator & Regulator
-CLUTCH
Clutch
-MANUAL TRANSMISSION
M/T Case
-CAB & BODY
Plate & Label
-CHASSIS ELECTRICAL
Fuse & Relay Box
Chassis Harness Equipment
