Factory Parts Manual For Kobelco SK70SR-1E Hydraulic Excavator Attachments 2-Piece Boom. Detailed Illustrations and Parts Lists.

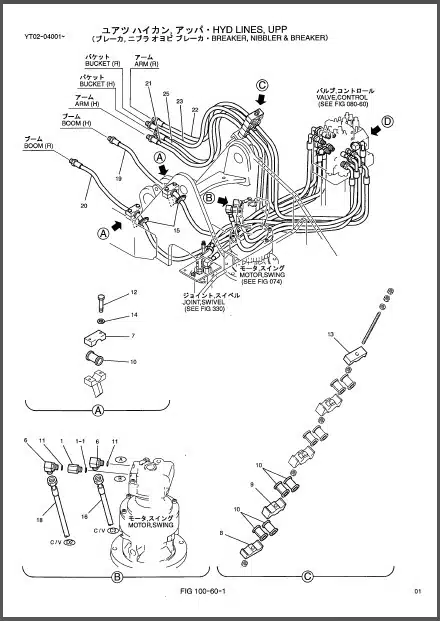

Photo 7 - Kobelco SK70SR-1E Parts Manual Hydraulic Excavator Attachments 2-Piece Boom SYT03203ZE01
Kobelco SK70SR-1E Parts Manual Hydraulic Excavator Attachments 2-Piece Boom SYT03203ZE01 $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Parts Manual For Kobelco SK70SR-1E Hydraulic Excavator Attachments 2-Piece Boom. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 58
Number: S3YT03203ZE01
Parts List: Yes
Parts Exploded view: Yes

Model

Kobelco SK70SR-1E

Attachment
2-Piece Boom

Contents

-UPPER GROUP
Frame. Upp
Valve Install
Hyd Lines.Upp
Control Lines.Remote
Control Lines.Main
-ATTACHMENT GROUP
Boom. Main 2.03M
Boom Front 2.475M
Boom Front 2.475M
Boom Front Install
Boom Main Group
Boom Front Group
Hyd Lines. Boom Main
Hyd Lines. Boom Front
Cylinder Install. Boom
Cylinder Install. Jib
Hyd Lines. Cylinder Boom
Hyd Lines. Cylinder Jib
Hyd Lines. Cylinder Arm
Light Install
-NAME PLATE
Name Plate Install
