Factory Parts Manual For Kobelco SK70SR-1E, SK70SR-1ES Hydraulic Excavator Attachments Dozer. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 86
Number: S3YT03405ZE01
Parts List: Yes

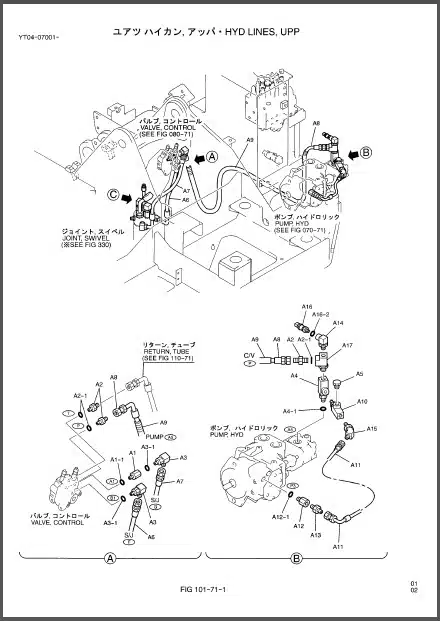

Parts Exploded view: Yes
Model
Kobelco SK70SR-1E
Kobelco SK70SR-1ES
Attachment
Dozer
Contents
-UPPER GROUP
Frame Assy. Upp
Install. Hyd
Power Take-Off
Assy-Valve Install
Hyd Lines. Upp.
Hyd Lines.Return
Controls. Operators
Control Assy.Dozer
Control Lines.Remote
Control Lines. Pump
Plate Group. Floor
Seat Group
Harness Assy
-LOW GROUP
Low Group
Valve Install
Hyd Lines, Low
Dozer Assy
Cover Assy, Under
-NAME PLATE
Name Plate Install
