Kobelco SK70SR Shop And Parts Manual Hydraulic Excavator manuals in PDF

$14.95

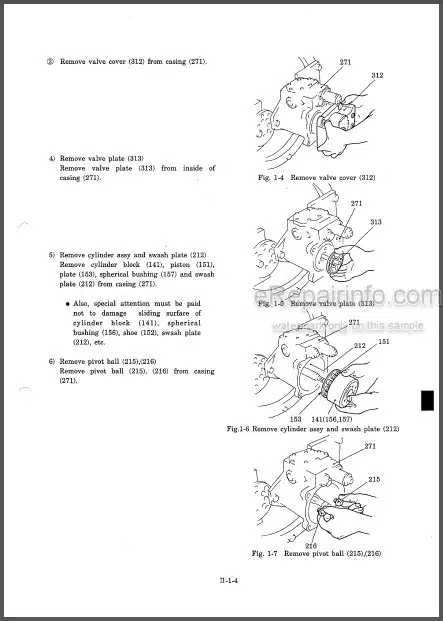

Factory Shop And Parts Manual For Kobelco SK70SR Hydraulic Excavator, Isuzu 4JB1 Industrial Diesel Engine. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups. Detailed Illustrations and Parts Lists.

Photo 8 - Kobelco SK70SR Shop And Parts Manual Hydraulic Excavator
Kobelco SK70SR Shop And Parts Manual Hydraulic Excavator $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Shop And Parts Manual For Kobelco SK70SR Hydraulic Excavator, Isuzu 4JB1 Industrial Diesel Engine. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Quantity of Manuals: 6
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Parts List: Yes
Parts Exploded view: Yes

Model

Kobelco SK70SR

Engine

Isuzu 4JB1 Industrial Diesel Engine

Contents

1. Kobelco SK70SR Optional Attachments Parts Manual Dozer
2. Kobelco SK70SR Shop Manual

1. Kobelco SK70SR Optional Attachments Parts Manual Dozer

-UPPER GROUP
Frame Assy Upp
Tank Install Hyd
Power Take-Off Assy
Valve Install
Hyd Lines Upp
Controls Operators
Control Lines. Remote
Plate Group. Floor
Cover Assy. Under
Harness Assy
-LOW GROUP
Low Group
Valve Install
Hyd Lines
Dozer Assy

2. Kobelco SK70SR Shop Manual

-SPECIFICATION
Outline
Specification
Attachment Dimension
-MAINTENANCE
Tools
Standard Maintenance Time Schedule
Maintenance Standard And Test Procedure
-SYSTEM
Mechatro Control System
Hydraulic System
Electrical System
Components System
Air-Conditioner System
-DISASSEMBLY
Disassembling And Assembling
Attachment
Upper Swing Body
Travel Frame
-TROUBLESHOOTING
Mechatro Control
Hydraulic
Electrical
Engine
-ENGINE
General Information
Maintenance
Engine Assembly I (Disassembly)
Engine Assembly Ii (Inspection & Repair)
Engine Assembly Iii (Reassembly)
Lubricating System
Cooling System
Fuel System
Engine Electricals
Troubleshooting
Special Tool List
-INSTALLATION PROCEDURES FOR OPTIONAL ATTACHMENT

What you get

You will be given access to the link for downloading high quality PDF Manual (.pdf / .zip file) immediately after you pay.
