Komatsu 50E 60E 70E Repair Manual Wheel Loader Transmission G426 2974989M1 manuals in PDF

$14.95

Factory Repair Manual For Komatsu Wheel Loader Transmission. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 8 - Komatsu 50E 60E 70E Repair Manual Wheel Loader Transmission G426 2974989M1
Komatsu 50E 60E 70E Repair Manual Wheel Loader Transmission G426 2974989M1 $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Repair Manual For Komatsu Wheel Loader Transmission. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: EN; DE
Pages: 142
Number: 2974989M1
Hydraulic Diagrams: Yes

Model

Komatsu Transmission For 50E, 60E, 70E Wheel Loaders Transmission
G423

Contents

-STRUCTURE
General Description

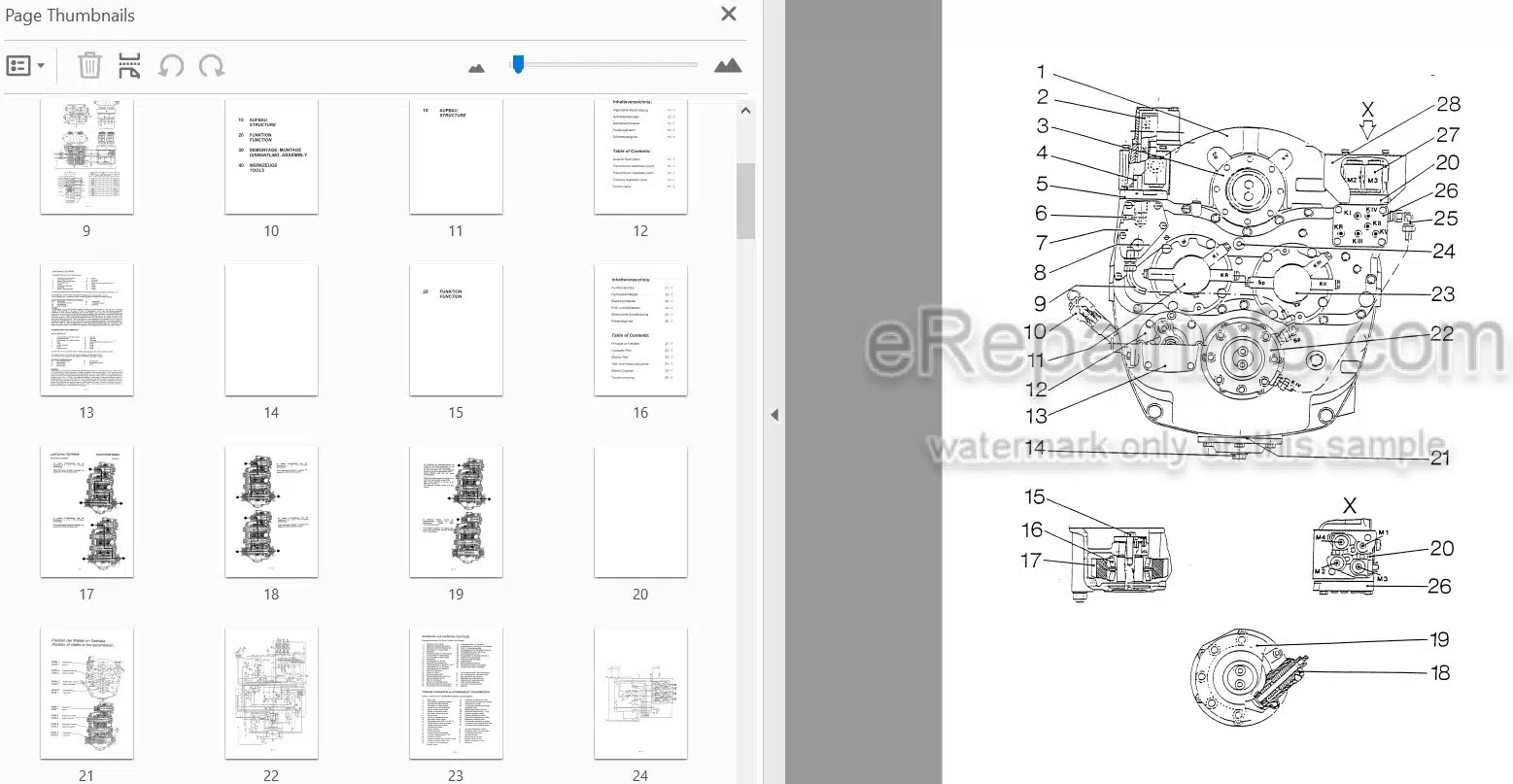

Transmission Attachment Parts
Transmission Installation Parts
Pressure Regulating Valve
Control Valve
-FUNCTION
Principle Of Function

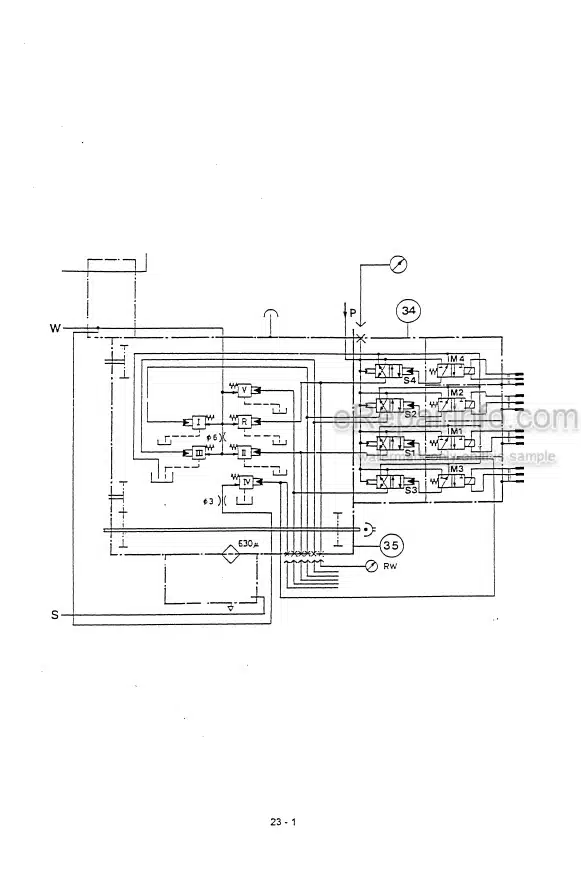

Hydraulic Plan
Electric Plan
Test- And Measuring Points
Electric Diagram
Trouble Shooting
-DISMANTLING /ASSEMBLY
Transmission:
Clutch Pack Housing
Shaft 1
Shaft 2
Shaft 3
Shaft 4
Pressure Regulating Valve

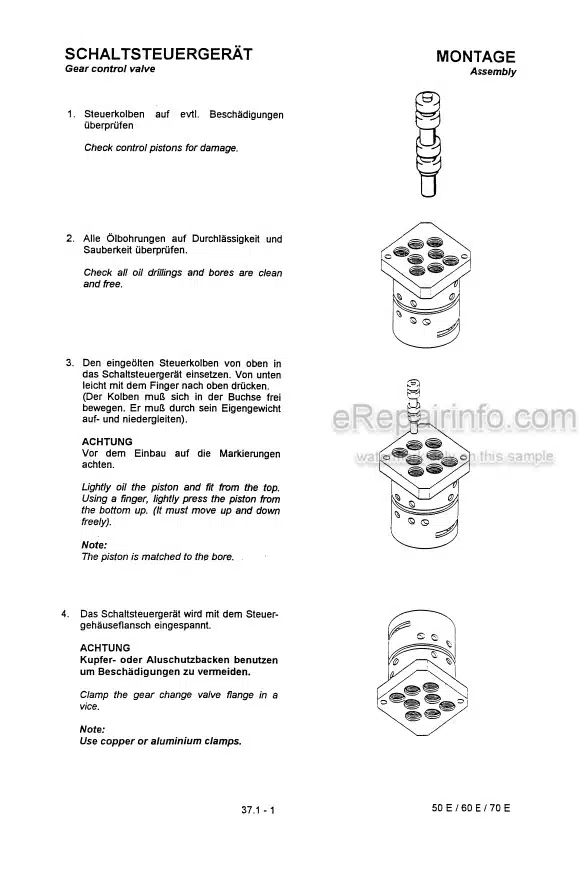

Control Valve
-TOOLS
Special Tools
APPENDIX

What you get
