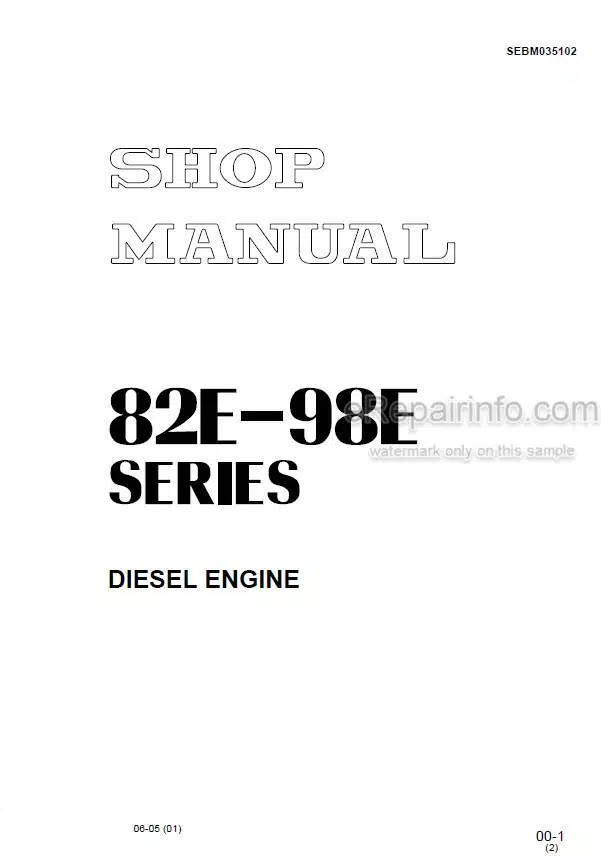

Factory Shop Manual For Komatsu Diesel Engine. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 206
Number: SEBM035102 (june 2005)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Model
Komatsu 82E, 98E Series Diesel Engine
3D82AE
3D84E
S3D84E
3D88E
4D84E
S4D84E
4D88E
4D94LE
4D98E
S4D98E
Contents
-GENERAL
Specifications
Engine External Views
Structural Description
-INSPECTION AND ADJUSTMENT
Periodic Maintenance Schedule
Periodic Inspection And Maintenance Procedure
Adjusting The No-Load Maximum Or Minimum Speed
Sensor Inspection
Oil Pressure Switch
Thermo Switch
Water Leak Check In Cooling Water System
Radiator Cap Inspection
Thermostat Inspection
Adjusting Operation
Long Storage
-TROUBLESHOOTING
Preparation Before Troubleshooting
Quick Reference Table for Troubleshooting
Troubleshooting by Measuring Compression Pressure
-DISASSEMBLY, INSPECTION AND REASSEMBLY OF ENGINES
Complete Disassembly and Reassembly
Cylinder Head: Disassembly, Inspection and Reassembly
Gear Train and Camshaft
Cylinder Block
-LUBRICATION SYSTEM
Lubrication System Diagram
Trochoid Pump Components
Disassembly (Reverse The Procedure Below For Assembly)
Servicing Points
Parts Inspection And Measurement
-COOLING SYSTEM

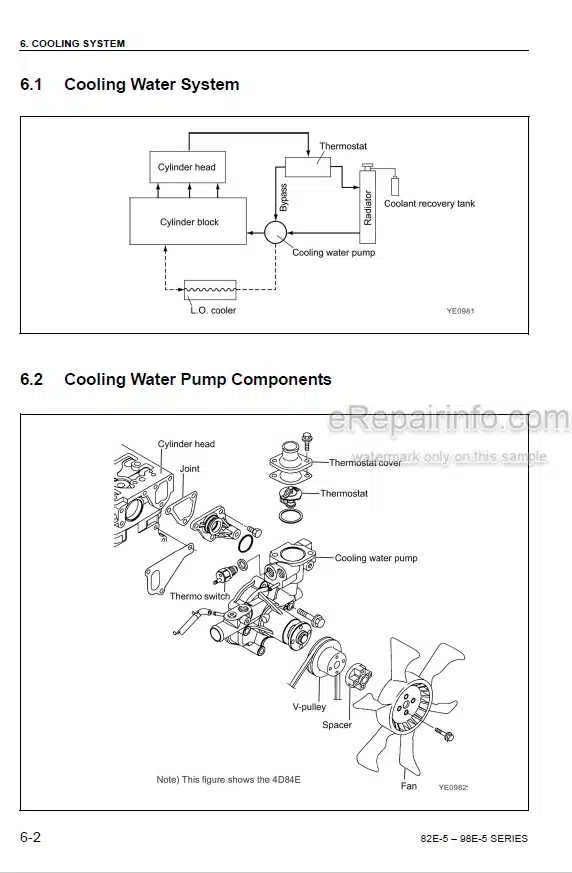

Cooling Water System
Cooling Water Pump Components
Disassembly (Reverse The Procedure Below For Assembly)
Servicing Points
-FUEL INJECTION PUMP/GOVERNOR
Introduction
Fuel Injection Pump
-TURBOCHARGER
Structure and Functions
Service Standards and Tightening Torque
Periodic Inspection Procedure
Disassembly Procedure
Washing and Inspection Procedure
Reassembly Procedure
Handling after Disassembly and Reassembly
Troubleshooting
-STARTING MOTOR
For 4D94LE/(S)4D98E
-ALTERNATOR
The 40A Alternator for 3D84E and Other Models
-ELECTRIC WIRING

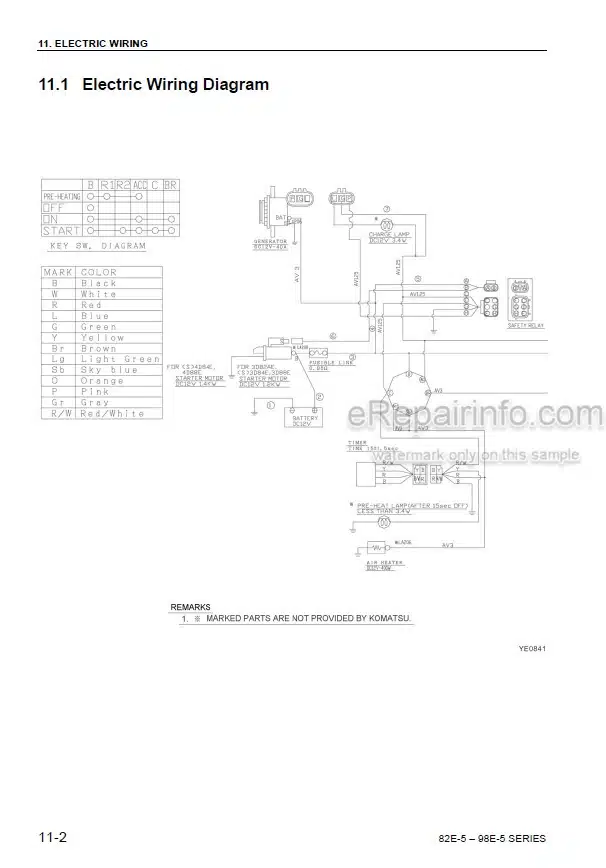

Electric Wiring Diagram
Precaution on Electric Wiring
-SERVICE STANDARDS
Engine Tuning
Engine Body
Lubricating Oil System (Trochoid Pump)
-TIGHTENING TORQUE FOR BOLTS AND NUTS
Tightening Torques for Main Bolts and Nuts
Tightening Torques for Standard Bolts and Nuts
