Factory Shop Manual For Komatsu Diesel Engine For Komatsu Forklift. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 261
Number: SM009
Model
Komatsu 95 Series Diesel Engine.
4D95S
For FD20-10; FD25-10; FD30-10; FD20S-5; FD25S-5; FD30S-5 Forklifts.
4D95L
For FD20H-8; FD25H-8; FD30H-8 Forklifts.
6D95L
For FD35Z-4; FD40Z-4; FD35-4; FD40-4; FD45-4; FD33S-4; FD35S-4; FD40S-4; FD45S-4; FD50H-4;
FD60H-4; FD70N-4; FD50-4; FD60-4; FD50E-5; FD60E-5; FD70E-5; FD50-5; FD60-5; FD70-5; SD23-3; SD25-3 Forklifts.
S6D95L
For FD60H-5; FD70H-5; FD80H-5 Forklifts.
Contents
-GENERAL

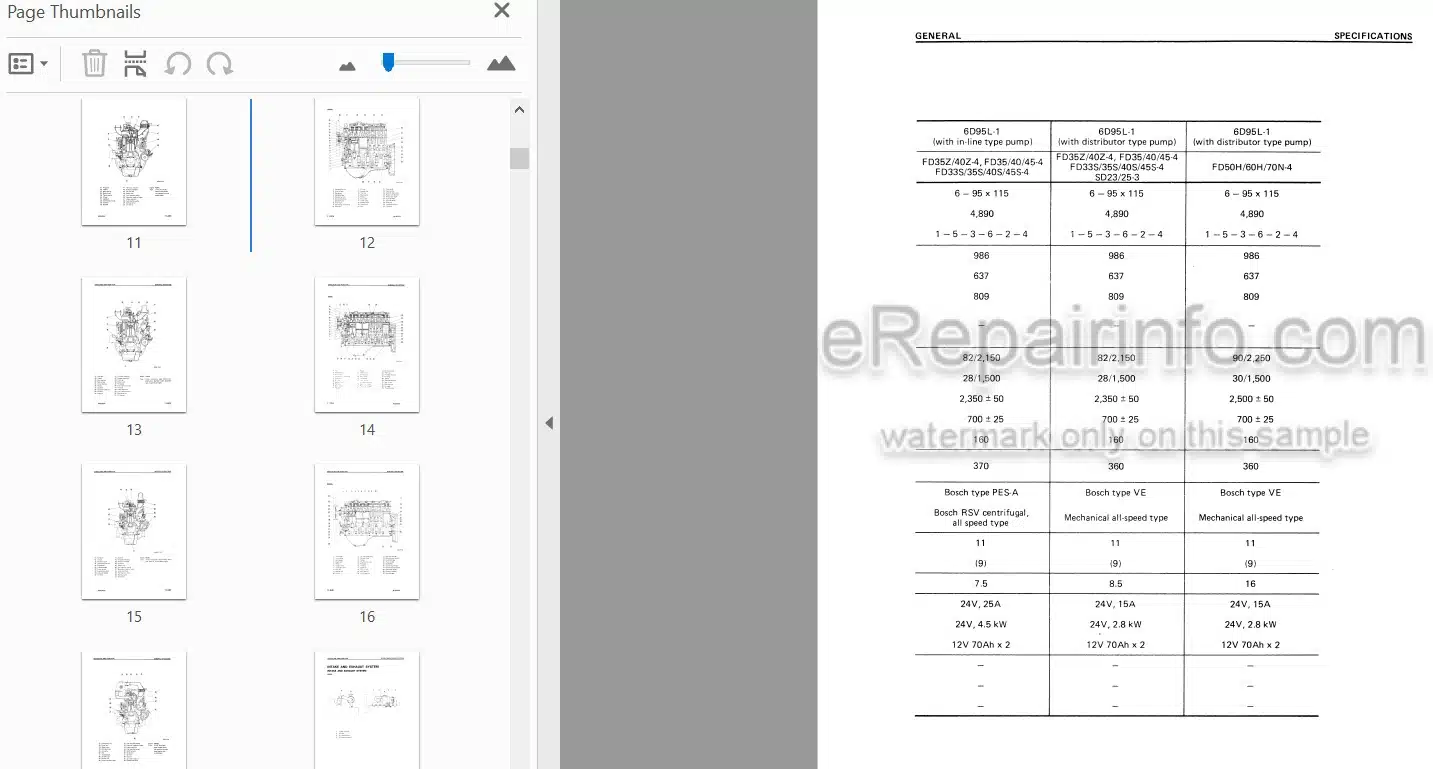

Specifications
Weight Table
-STRUCTURE AND FUNCTION

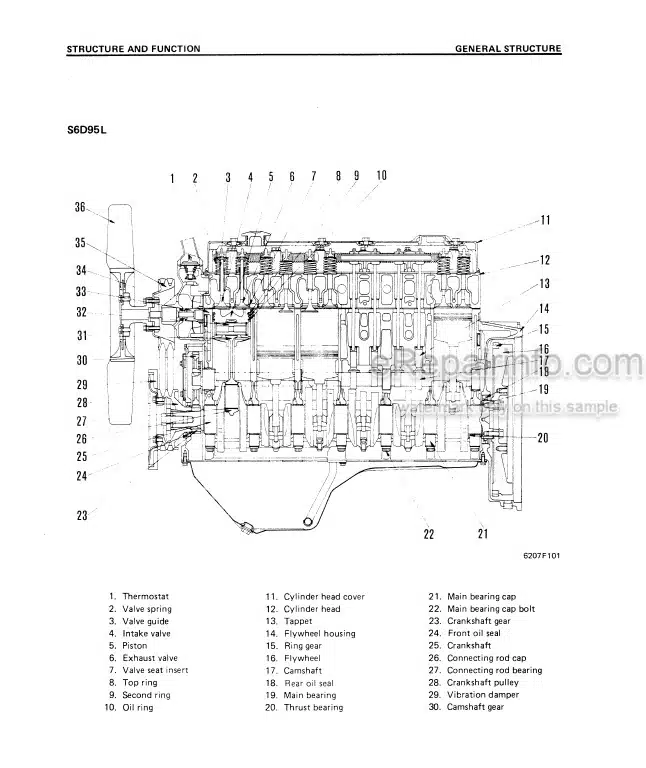

General Structure
Intake And Exhaust System
Engine Body
Lubrication System
Fuel System
Cooling System
Electrical System
-TESTING AND ADJUSTING
Intake And Exhaust System
Engine Body
Fuel System
Lubrication System
Cooling System
Performance Test
Troubleshooting

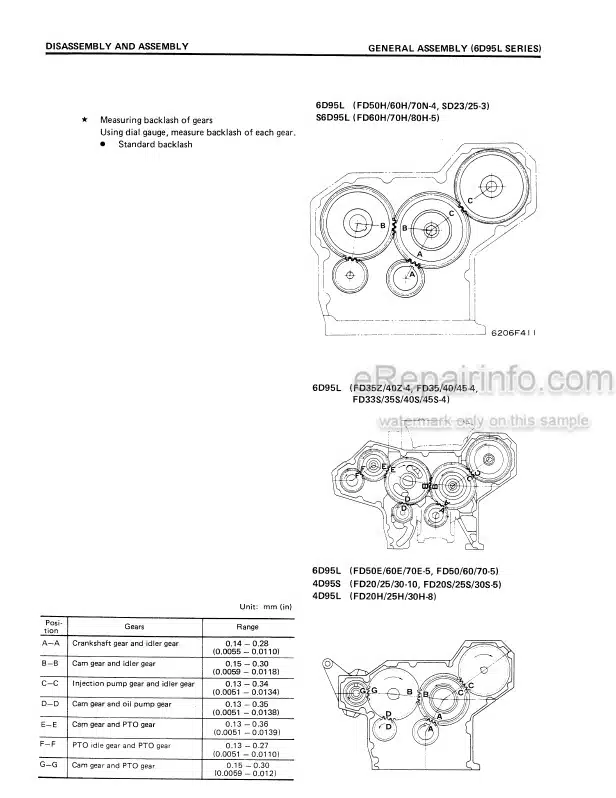

-DISASSEMBLY AND ASSEMBLY
4D95 Series
6D95L Series
-MAINTENANCE STANDARD
Turbocharger
Cylinder Head
Valve And Valve Guide
Rocker Arm Shaft, Push Rod And Tappet
Cylinder Block
Crankshaft
Camshaft
Timing Gear
Piston, Piston Ring And Piston Pin
Connecting Rod
Flywheel And Flywheel Housing
Oil Pump
Regulator Valve
Water Pump And Thermostat
-SERVICE INFORMATION
Procedure For Selection And Installation Of Pistons On 4D95S (L) And (S) 6D95L
