Factory Parts Manual For Komatsu Forklift Truck. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 1226
Number: PM240 (July 2008)
Searchable: Yes

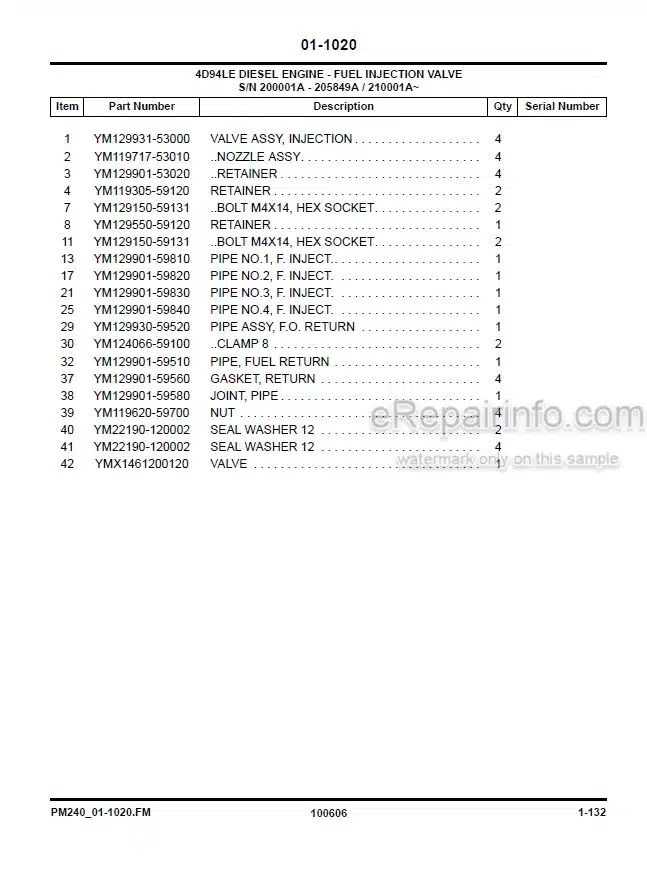

Parts List: Yes
Parts Exploded View: Yes
Model
Komatsu Forklift Truck
BX50
FG20ST-16
FG20STLS-16
FG20SHT-16
FG20SHTLS-16
FG20T-16
FG20TUS-16
FG20TLS-16
FG20HT-16
FG20HTUS-16
FG20HTLS-16
FG25ST-16
FG25STLS-16
FG25SHT-16
FG25SHTLS-16
FG25T-16
FG25TUS-16
FG25TLS-16
FG25HT-16
FG25HTUS-16
FG25HTLS-16
FG28SHT-16
FG28SHTLS-16
FG28HT-16
FG28HTUS-16
FG28HTLS-16
FG30SHT-16
FG30SHTLS-16
FG30HT-16
FG30HTUS-16
FG30HTLS-16
FG32SHT-16
FG32SHTLS-16
FG32HT-16
FG32HTUS-16
FG32HTLS-16
FG35AHT-16
FG35AHTUS-16
FG35AHTLS-16
FD20T-16
FD20TUS-16
FD25T-16
FD25TUS-16
FD28T-16
FD28TUS-16
FD30T-16
FD30TUS-16
FD32T-16
FD32TUS-16
FD35AT-16
FD35ATUS-16
EPA Tier 1 (2004-2006) SN 200001A – 205849A
EPA Tier 2 (2007) SN 210001A And Up

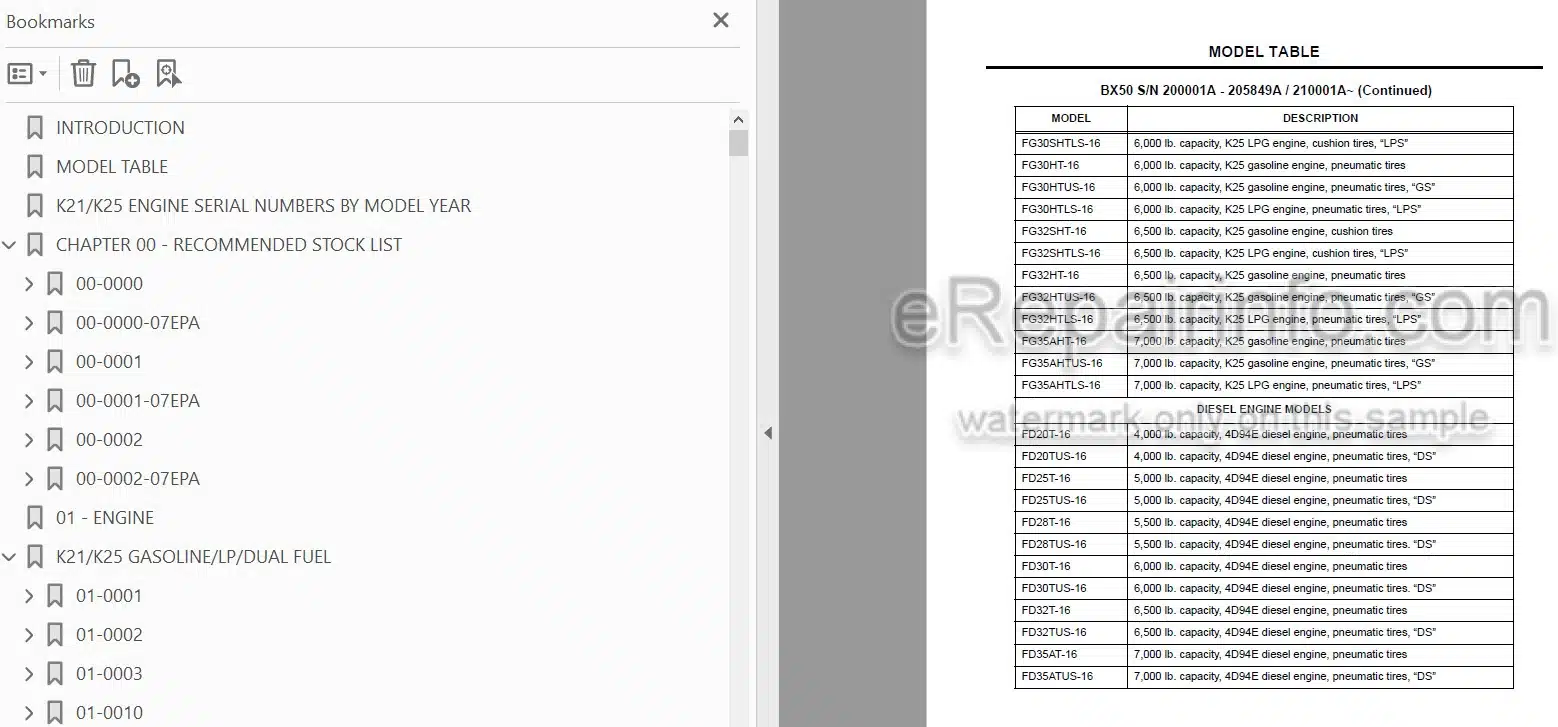

Contents
INTRODUCTION
MODEL TABLE
K21/K25 ENGINE SERIAL NUMBERS BY MODEL YEAR
-RECOMMENDED STOCK LIST
Fast Moving Stock List (FMSL) – EPA 2004
EPA BX50 Fast Moving Stock List (FMSL) – EPA 2007
Full Recommended Stock List (FRSL) – EPA 2004
EPA BX50 Full Recommended Stock List (FRSL) – EPA 200
EPA Related Stock List (EPASL) – EPA 2004
EPA Bx50 EPA Related Stock List (EPASL) – EPA 2007
-ENGINE-K21/K25 GASOLINE/LP/DUAL FUEL
Complete Assembly
Transmission-To-Engine Mounting Parts
Mounting Parts
Air Cleaner Assy
Bare & Short Block Assembly
Cylinder Block & Oil Pan
Cylinder Head & Rocker Cover
Crankcase Ventilation
Piston, Crankshaft & Flywheel
Camshaft & Valve Mechanism
Front Cover & Fittings
Manifold Assembly
Lubricating System
Throttle Chamber Assy
Fuel Injector Assy – Epa 2004
Injector Holder Assy
Injector And Holder Assy
Air Cleaner
Water Pump, Cooling Fan & Thermostat Assy
Ignition System-Coil Assy
Ignition System – Distributor
Vacuum Piping
Alternator
Engine Control Module
Starter Motor
Gasket Kit
Fuel Pump Block-Off
LPG Vaporizer
LPG/Dual Fuel Caution Plate & Label
-ENGINE-4D94LE DIESEL
Mounting Parts
Air Cleaner Assy
Cylinder Block
Gear Housing
Flywheel Hsg & Oil Sump
Cylinder Head & Bonnet
Intake Manifold
Exhaust Manifold
Camshaft & Driving Gear
Cooling Water System
Fuel Injection Pump
Fuel Injection Valve
Fuel Filter
Starting Motor
Alternator (STD)
Alternator (UL-DS)
Gasket Set
-ENGINE-4D98E DIESEL
Mounting Parts
Ur Cleaner Assy
Cylinder Block
Gear Housing
Flywheel Housing And Oil Pan
Cylinder Head And Head Cover
Intake And Exhaust Manifolds
Camshaft And Driving Gear
Crankshaft And Piston
Lubricating Oil System
Water Cooling System – Standard Models
Cooling Water System – UL-DS Models
Fuel Injection Pump
Fuel Injection Nozzle And Piping
Fuel Filter
Starting Motor
Alternator – Standard Models
Alternator – UL-DS Models
Gasket Set
-EXHAUST SYSTEM
K21/K25 Gasoline/LP/Dual Fuel – Pneumatic
K21/K25 Gasoline/LP/Dual Fuel – Cushion
Diesel Models
-COOLING SYSTEM
Radiator
Shroud & Hoses
Radiator Back Cover – All Engines
Reserve Tank
Torcon Cooler
-FUEL SYSTEM – GASOLINE/DIESEL
Tank
Tank Unit
-FUEL SYSTEM – LPG/DUAL FUEL
Overview
Clips & Clamps
LPG Gas Hose Assy
LPG Tank Bracket – STD
Swing-Out Fold-Down Tank Bracket
-TORQUE CONVERTER
Mounting & Inner Parts
Converter & Pump Detail – All Models Except Export
Converter & Pump Detail – Export Models
-TORQFLOW TRANSMISSION
Unit Assy & Case
Input & Idler Assy
Valve Assy
Valve Assy Detail
Solenoid Valve Parts
External Case Parts
Universal Joint
-DRIVE AXLE
Drive Axle Assembly
Differential Gear
-STEER AXLE
Steering Axle Assembly
Steering Axle – Stabilizer Assy
-DRIVE WHEELS AND TIRES (FRONT)
Cushion
Pneumatic
-BRAKE SYSTEM
Brakes – Service – Pneumatic
Brakes – Service – Cushion
Brakes – Service – Cushion – Wheel Cylinder
Brakes – Service – Master Cyl & Piping (Front)
Brakes – Power – Booster Assy & Piping (Front)
Brakes – Master Cylinder
Brakes – Booster Assy
Parking Brake Lever Assembly W/ Alarm
-STEERING WHEEL
Steering Wheel
-STEERING COLUMN
Steering Column – Power Steering Valve
-BRAKE/INCHING PEDALS
Inching Pedal/Brake Pedal Assembly
Inching Pedal/Brake Pedal Sub-Assembly
-ACCELERATOR PEDAL
Accelerator Pedal
-FRAME AND CHASSIS
Frame Assy
Frame
-COUNTERWEIGHTS AND SUBWEIGHTS
Counterweights
Sub-Weights
-SEATS, OPERATOR COMPARTMENT, OVERHEAD GUARD, OUTER PANEL
Operator’S Seat – Standard
Operator’S Seat – Optional Delux
Operator’S Seat – Optional
Insulator Assembly – Frame
Insulator Assembly – Step, Sub-Bonnet, Radiator
Operator’S Compartment – Dashboard
Dashboard & Step – Covers/External
Operator’S Compartment – Overhead Guard
Operator’S Compartment – Overhead Guard – Mounts
Operator’S Compartment-Bonnet
Operator’S Compartment – Sub-Bonnet
-ELECTRICAL SYSTEM
Gas Engine
Bonnet Sub-Assy
Head Light
Head Lamp And Front/Rear Combination Light
Rear Led Combination Lamp
Operator Presence System Controller
Diesel Engine
-METER PANEL
Meter Panel Assy & Combination Switch
Combination Switch
Meter Panel – Inner Parts
Meter Panel Display
Meter Panel – Bulbs & Detail – Front & Rear
-HYDRAULIC PUMP
Gas/LPG/Dual Models
Models W/ K21 Engine – Detail
Diesel Models
Detail
-HYDRAULIC CONTROL VALVE
Hydraulic Control Valve And Conversion Kit
3-Spool – Inner Parts
4-Spool – Inner Parts – All Models
Lever Assy
Piping – 3-Way Valve
-TILT CYCLINDER
Pneumatic Models
Cushion Models
Boot Assy
-POWER STEERING CYLINDER
Pneumatic Models
Cushion Models
-HYDRAULIC SYSTEM
Power Steering Cylinder Piping
Power Steering Pump Return
Tank Cover
Return Piping
Hyd Pump Piping
Control Valve Piping
Lift Piping At Control Valve & Optional Accumulator
Tilt Piping
Power Brake Piping
-MASTS
E50-MD Dual Mast
E50-MS 2-Stage Mast
E50-MT 3-Stage Mast
E60-MS 2-Stage Mast
E60-MT 3-Stage Mast
E65-MS 2-Stage Mast
E65-MT 3-Stage Mast
45D-MQ 4-Stage Quad Mast
55D-MQ 4-Stage Quad Mast
KU 2-STAGE FREE VIEW MAST – 35T/7000LB MODELS
KU 3-STAGE FULL FREE VIEW MAST – 35T/7000LB MODELS
55E HANG-ON SIDESHIFTER – 45D/55D-MQ, E50-MD/MS/MT, ES30/40-MS/MT Masts
60E HANG-ON SIDESHIFTER – E60-MS/MT, E65-MS/MT Masts
65E HANG-ON SIDESHIFTER – E60-MS/MT, E65-MS/MT Masts
INTEGRAL SIDESHIFTER – E50-MS/MT, E60-MT Masts
INTEGRAL SIDESHIFTER – E50-MD/MS/MT, E60-MS/MT, E65-MT Masts
INTEGRAL SIDESHIFTER – 45D/55D-MQ Masts
FORK POSITIONER – INTEGRAL SIDESHIFTER WITH 37” or 41” Carriage
-OPTIONS
Strobe Light
Back-Up Buzzer/Travel Alarm
Under-Carriage Protector Assy
Skid Plate Assy – All Models
Engine Shutdown System – Low Oil Pressure (Lop) – Gas Models
Engine Protection System (EPS) – Diesel Models
Block Heater Assy-Diesel Models
Misc
-FORKS
Forks
-NAME PLATES AND DECALS
Top & Side Views
Misc Locations
-PAINT
Paint
INDEX
