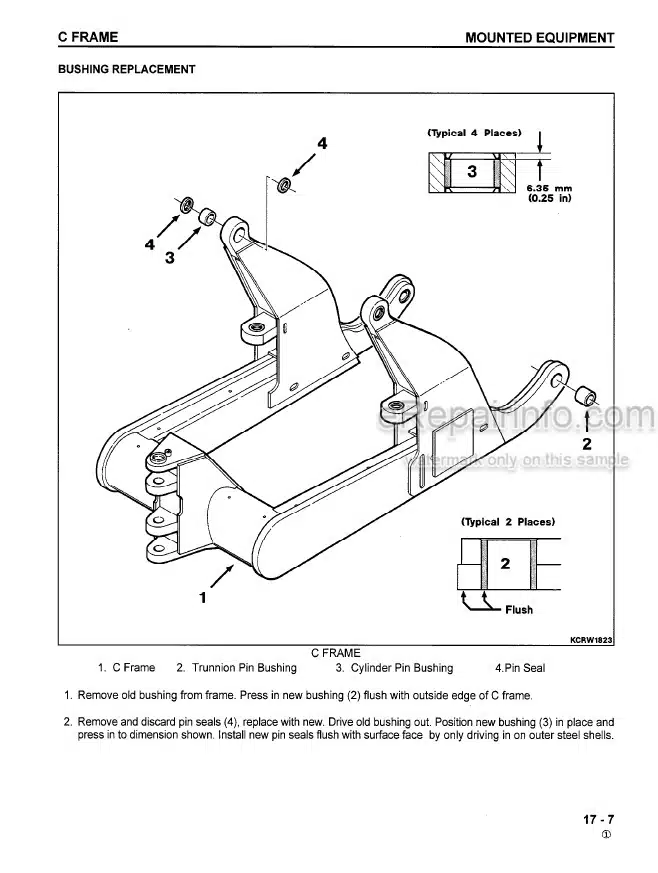

Factory Shop Manual For Komatsu Bulldozer. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 629
Number: CEBM000301 (march 1997)
Bookmarks: Yes
Searchable: Yes

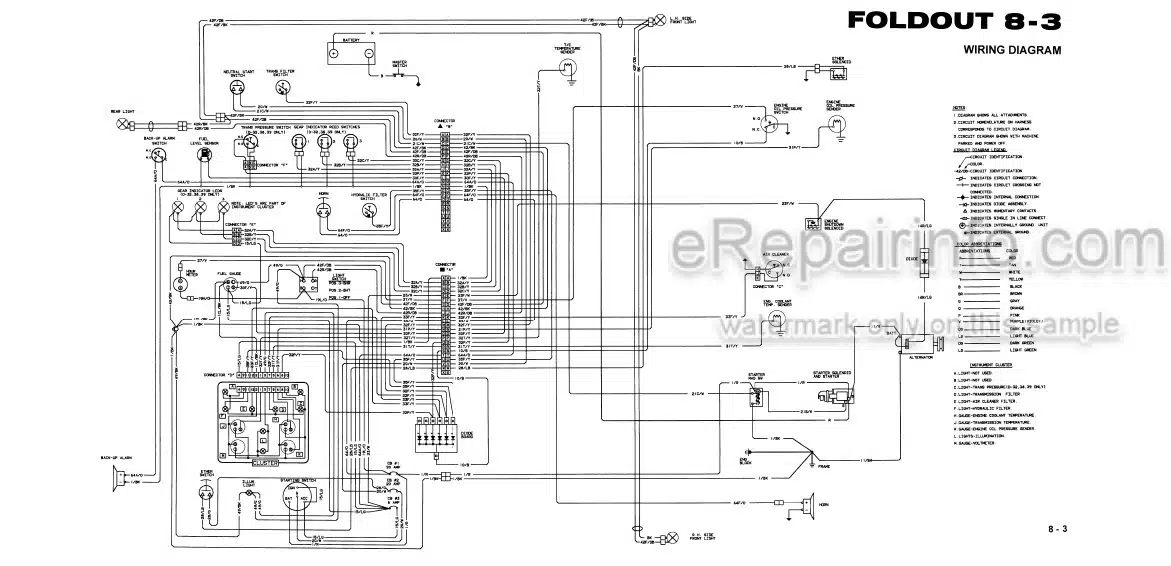

Wiring Diagrams: Yes
Model
Komatsu Bulldozer
D32E-1
SN P075501 And Up
D32P-1
SN P075501 And Up
D38E-1
SN P085501 And Up
D38P-1
SN P085501 And Up
D39E-1
SN P095501 And Up
D39P-1
SN P095501 And Up
Contents
-NTRODUCTION
Safety Precautions
Service Information
Loctite Usage
-MISCELLANEOUS
Dimensions
Specifications
Capacities And Lubes
Special Torques
Standard Torques
-COOLING
General
Service Diagnosis
Radiator
-DRIVE TRAIN
General
-TORQUE CONVERTER
General
Removal
Disassembly
Reassembly
Installation
-TRANSMISSION
General
Removal
Complete Assembly
Directional (Input) Shaft
Countershaft
Range (Output) Shaft
Reverse Idler Shaft
Main Regulator Valve
Range Selector Valve
Rate Of Rise Valve
Installation
Trans/Steering Valve
Drive Shaft
-STEERING DRIVE
General
Removal
Disassembly
Brake Cylinder
Steering Cylinder
Mounting Plate
Brake/Steering Shoes
Bearing Carrier
Planet Gear Carrier
Reassembly
Installation
Brake Adjustment
Brake Cylinder Valve
-FINAL DRIVE
General
Removal
Disassembly
Reassembly
Metal Type Face Seals
Installation
-ELECTRICAL
General
Wiring Diagram
-HYDRAULICS
General
-PUMP AND MOTORS
Charge And Scavenge Pump
Equipment Pump
-CONTROL VALVE
Removal
Complete Assembly
System Relief Valve
Blade Lift Section
Blade Tilt Section
Blade Angle Or Ripper Section
Installation
-CYLINDERS
Blade
Ripper
-SUSPENSION
General
Service Diagnosis
Wear Limit Checks
Front Idler
Track Adjuster
Top Idler
Track Roller
Metal Type Face Seals
Track Frame
Track Spring
Front Crossbar
Rear Rigid Bar
Track Frame Alignment
-TRACK CHAIN
Split Link Type Chains
-MOUNTED EQUIPMENT
C Frame Pin
C Frame Rub Bars
Angling Frame
C Frame
Blade Bushings
