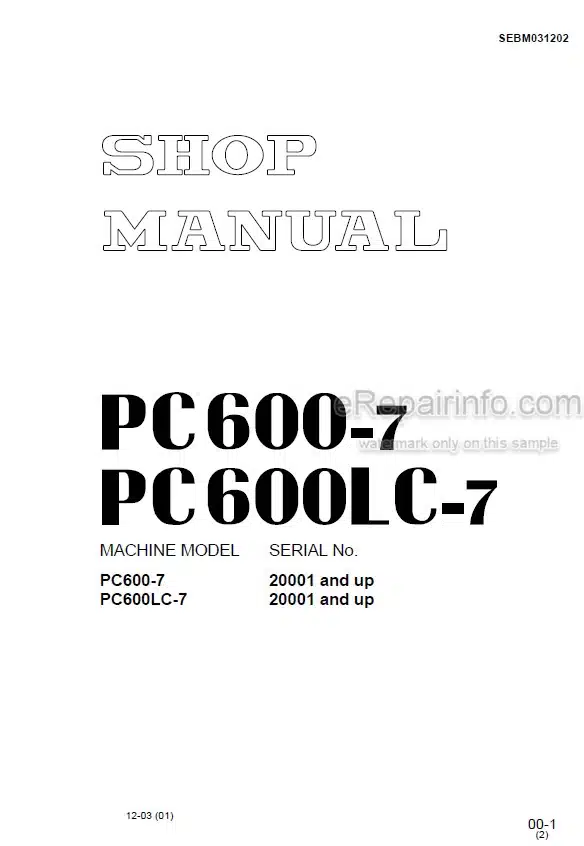

Factory Shop Manual For Komatsu Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 836
Number: SEBM031202 (december 2003)

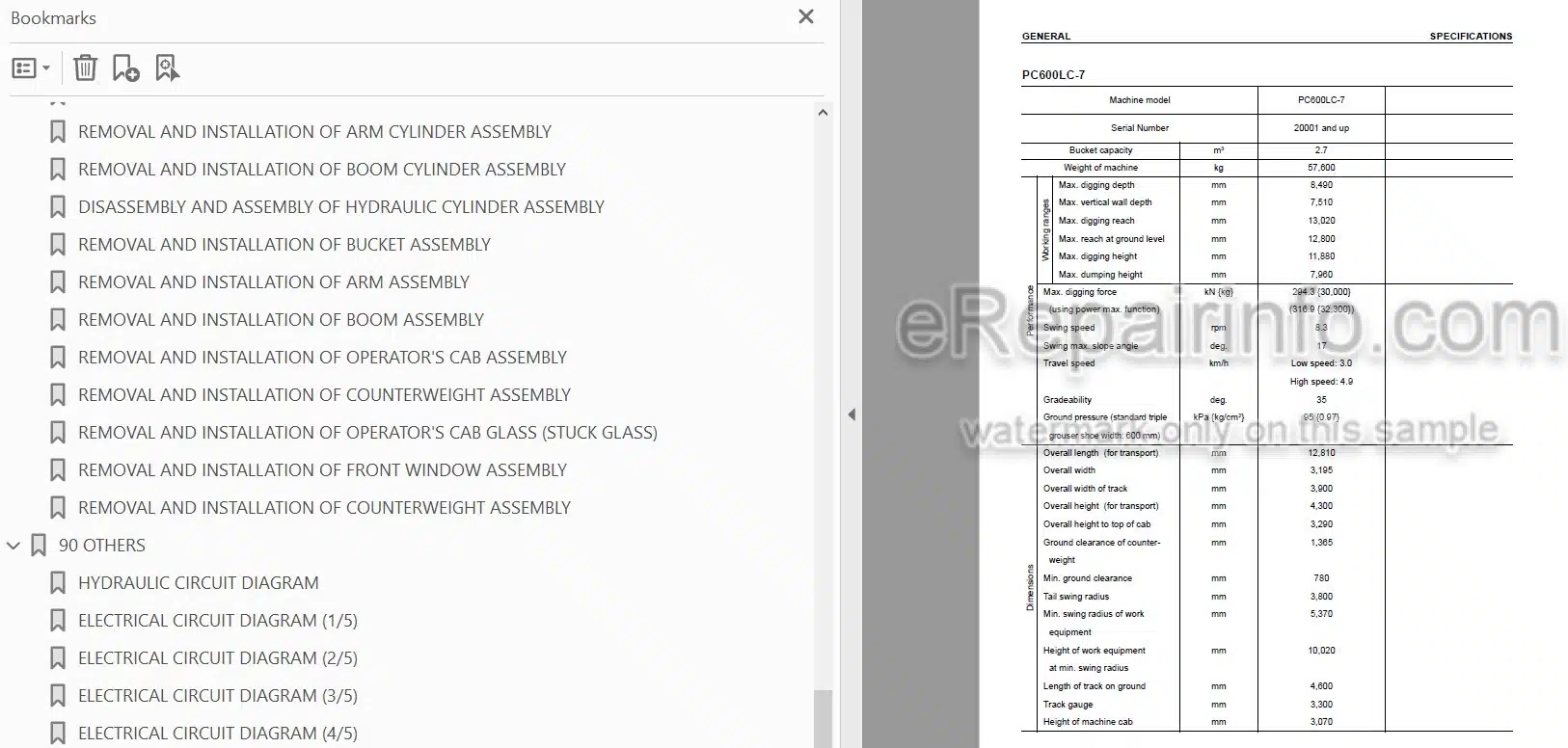

Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Komatsu Excavator
PC600-7
PC600LC-7
Serial No.20001 and up
Contents
-GENERAL
Specification Drawings
Specifications
Weight Table
Fuel, Coolant And Lubricants
-STRUCTURE, FUNCTION AND MAINTENANCE STANDARD
Parts Related To Engine
PTO
Control And PTO Lubrication Pump
Radiator, Oil Cooler
Power Train
Final Drive
Swing Circle
Swing Machinery
Track Frame, Recoil Spring
Idler
Carrier Roller
Track Roller
Track Shoe
Hydraulic Piping Drawing
Hydraulic Tank, Hydraulic Filter
Hydraulic Pump (Piston Pump)
Line Oil Filter
Control Valve
Swing Motor
Center Swivel Joint
Travel Motor
Valve Control
Work Equipment, Swing PPC Valve
Travel PPC Valve
Service PPC Valve
PPC Accumulator
PPC Shuttle Valve
Solenoid Valve
Boom Holding Valve
Boom Lower Regeneration Valve
Hydraulic Cylinder
Work Equipment
Dimensions Of Work Equipment
Air Conditioner
Engine Control
Machine Control System
Monitor System
Sensors
-TESTING AND ADJUSTING
Standard Value Table For Engine
Standard Value Table For Chassis
Testing And Adjusting
Troubleshooting
-DISASSEMBLY AND ASSEMBLY
Method Of Using Manual
Precautions When Carrying Out Operation
Special Tool List
Removal And Installation Of Radiator, Hydraulic Cooler Assembly
Removal And Installation Of Engine, PTO, Hydraulic Pump Assembly
Removal And Installation Of PTO Assembly
Disassembly And Assembly Of PTO Assembly
Removal And Installation Of Fuel Tank Assembly
Disassembly And Assembly Of Final Drive Assembly

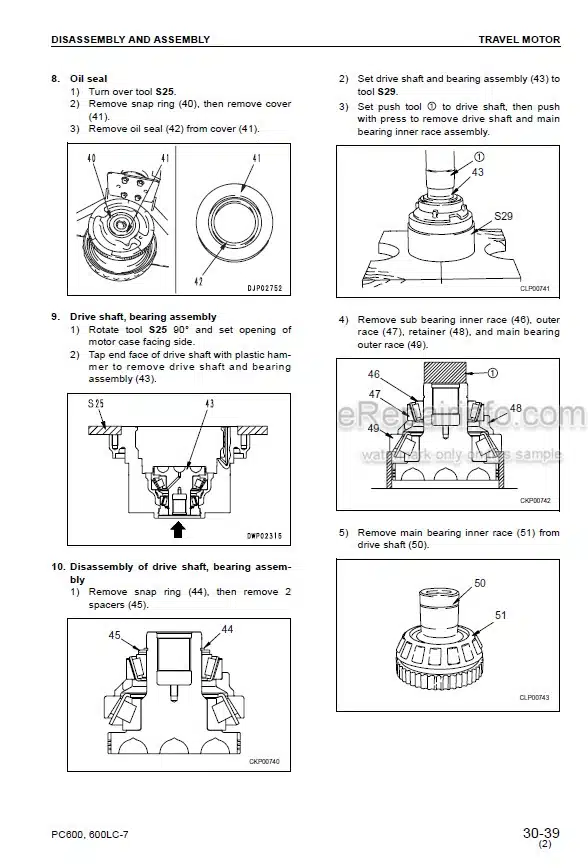

Disassembly And Assembly Of Travel Motor Assembly
Removal And Installation Of Revolving Frame Assembly
Removal And Installation Of Swing Motor Assembly
Disassembly And Assembly Of Swing Motor Assembly
Removal And Installation Of Swing Machinery Assembly
Disassembly And Assembly Of Swing Machinery Assembly
Removal And Installation Of Swing Circle Assembly
Removal And Installation Of Track Shoe Assembly
Disassembly And Assembly Of One Link In Field
Removal And Installation Of Idler, Recoil Spring Assembly
Disassembly And Assembly Of Idler Assembly
Disassembly And Assembly Of Recoil Spring Assembly
Removal And Installation Of Track Roller Assembly
Disassembly And Assembly Of Track Roller Assembly
Removal And Installation Of Carrier Roller Assembly
Disassembly And Assembly Of Carrier Roller Assembly
Removal And Installation Of Hydraulic Tank Assembly
Disassembly And Assembly Of Main Relief Valve Assembly
Removal And Installation Of Main Control Valve, Solenoid Valve Assembly
Disassembly And Assembly Of Main Control Valve Assembly
Removal And Installation Of No. 1 And No. 2 Pump Assembly
Disassembly And Assembly Of Hydraulic Pump Assembly
Removal And Installation Of Control, PTO Lubrication Pump Assembly
Removal And Installation Of Center Swivel Joint Assembly
Disassembly And Assembly Of Center Swivel Joint Assembly
Disassembly And Assembly Of Work Equipment PPC Valve Assembly
Disassembly And Assembly Of Travel PPC Valve Assembly
Removal And Installation Of Bucket Cylinder Assembly
Removal And Installation Of Arm Cylinder Assembly
Removal And Installation Of Boom Cylinder Assembly
Disassembly And Assembly Of Hydraulic Cylinder Assembly
Removal And Installation Of Bucket Assembly
Removal And Installation Of Arm Assembly
Removal And Installation Of Boom Assembly
Removal And Installation Of Operator’s Cab Assembly
Removal And Installation Of Counterweight Assembly
Removal And Installation Of Operator’s Cab Glass (Stuck Glass)
Removal And Installation Of Front Window Assembly
Removal And Installation Of Counterweight Assembly
-OTHERS
Hydraulic Circuit Diagram

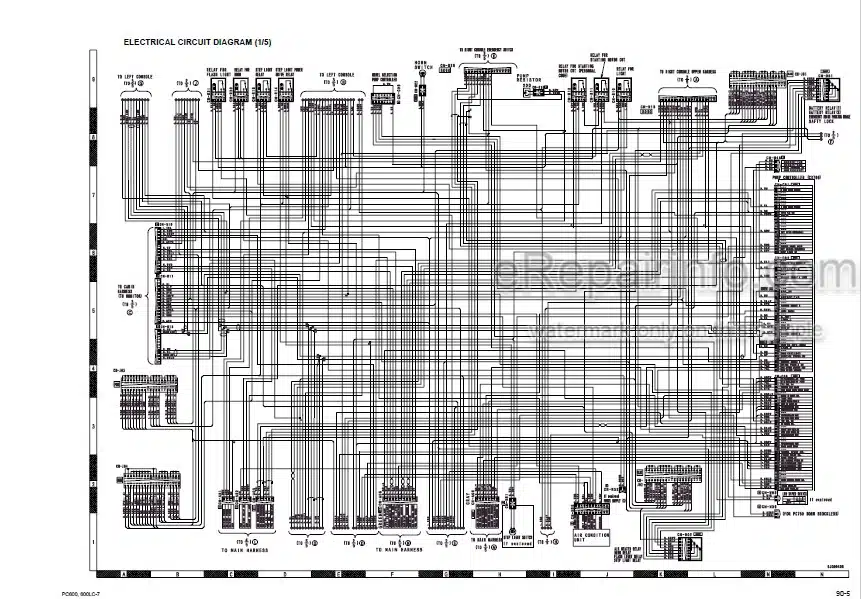

Electrical Circuit Diagram
Electrical Circuit For Air Conditioner
