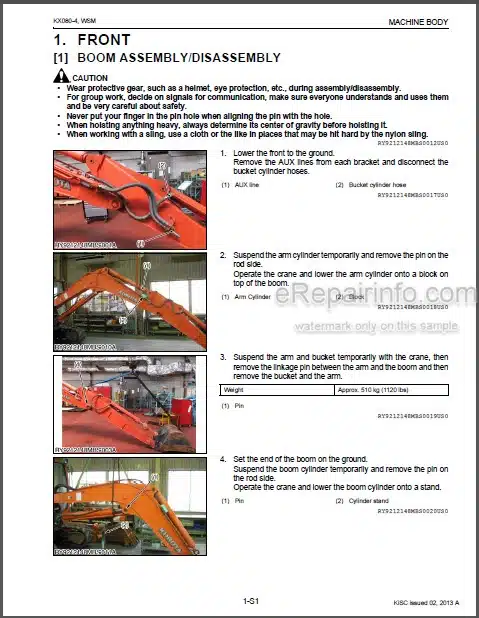

Factory Workshop Manual for Kubota KX080-4 Excavator. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.
Format: PDF
Language: English
Pages: 490
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Kubota KX080-4
Contents
-INFORMATION
Safety First
In The Interest Of Work Safety
Labels Displayed To Promote Work Safety
Main Specifications
Dimensions
-GENERAL
Checking Excavator Identification
Engine Identification
Muffler Full Assembly Identification
General Precautions
Handling Precautions For Electrical Parts And Wiring
Tightening Torques
Oil And Water Capacity Table
Maintenance Intervals
-MACHINE BODY
Front
Swivel Frame
Track Frame
Measuring Machine Performance
Swivel Gear Backlash Performance
-ENGINE
Specifications
Dimensions
Performance Curves
Fan Drive
-HYDRAULIC SYSTEM
Diagram Of Hydraulic Circuit
Hydraulic Device Layout
Pump
Control Valve
Swivel Motor
Travel Motor
Hydraulic Cylinder
Pilot Valve
Shockless Valves
Solenoid Valve
Pump
Control Valve
Swivel Motor
Swivel Joint
Travel Motor
Cylinder
Pilot Valve
Shockless Valves
Swivel Shuttle Valve
Solenoid Valve
Routing Of Hydraulic Hoses
Measuring Hydraulic Device Performance
Hydraulic Device Performance Standards
Troubleshooting
-ELECTRICAL SYSTEM
Layout Of Electrical Devices And Wiring Routing
Meter Panel Operation
Inspections
Troubleshooting (StartUp Equipment Version)
Methods For Diagnosing Errors
Troubleshooting (Meter Panel Version)
-CABIN
Air Conditioning System
Wiper
Troubleshooting
Maintenance And Service Related SpecificationsS
Torque
Precautions When Repairing The Refrigerant System
Inspecting And Charging The Refrigerant System
Inspection And Disassembly
Window Washer
Removal And Installation Of Glass
Front Window

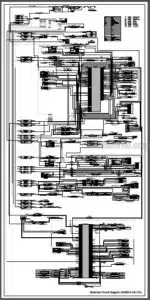

ELECTRICAL CIRCUIT DIAGRAM
CONNECTOR CHART
