Manitou 7000 Series Parts Manual 4-Stage Mast R418 SN2 manuals in PDF

Factory Parts Manual For Manitou 4-Stage Mast. Detailed Illustrations and Parts Lists.

Format PDF
Language English
Pages: 42
Number: R418 (april 2002)
Searchable
Parts List
Parts Exploded View

Model

Manitou 4 Stage Mast
7000 Series
3,500 Lb. Capacity
S/N: 702674 And Above

Contents

Mast Rail Assemblies
Primary Cylinder Assembly
Secondary Cylinder Assembly

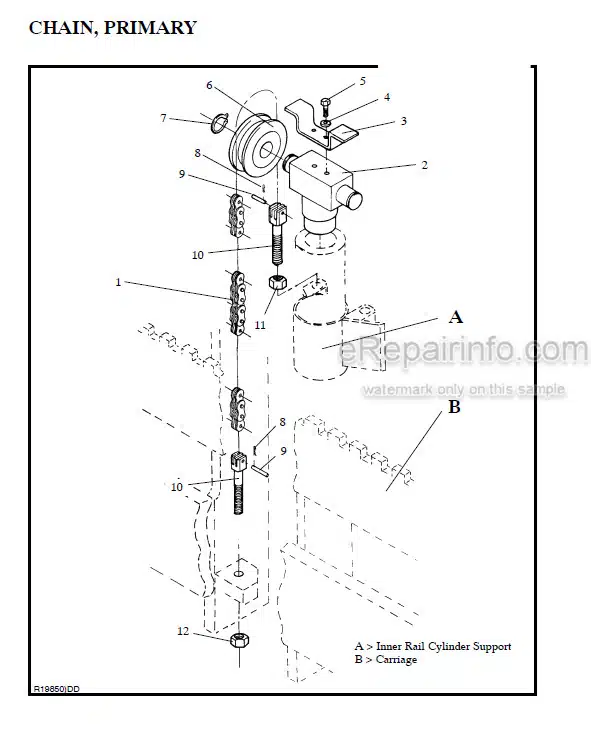

Chain Primary
Chain Secondary & Tertiary
Hydraulic System
Carriage
Hose Reel Kit (3 – Way)
Hose Reel (4-Way)
Early Internal Hose Kit
Internal Hose Kit
Mast Decals
Parts Index

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
