Manitou Gehl MT420H 57K STS S1 MT420H TSS 57K ST5 S1 RS4-14 Repair Manual Telehandler 647781EN manuals in PDF

$19.95

Factory Repair Manual For Manitou Gehl Telehandler. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 8 - Manitou Gehl MT420H 57K STS S1 MT420H TSS 57K ST5 S1 RS4-14 Repair Manual Telehandler 647781EN
Manitou Gehl MT420H 57K STS S1 MT420H TSS 57K ST5 S1 RS4-14 Repair Manual Telehandler 647781EN $19.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

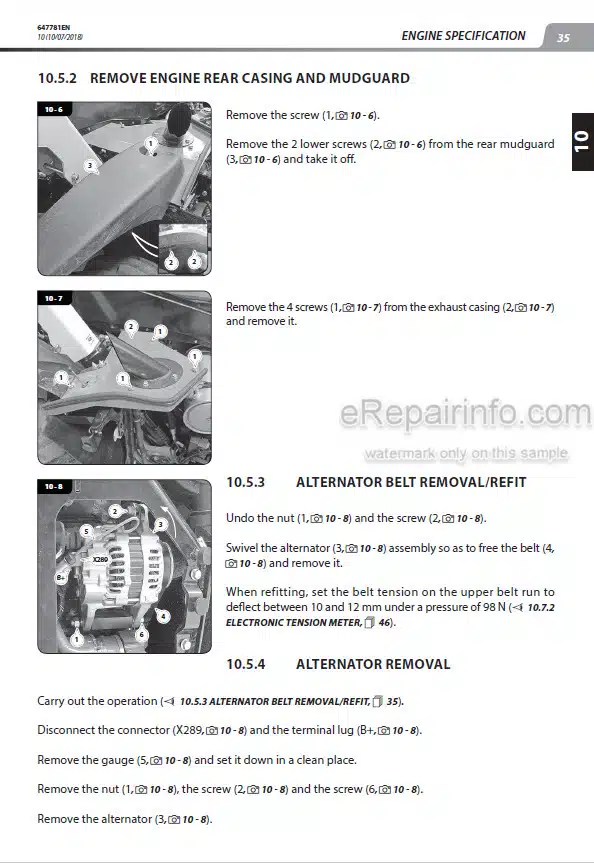

Factory Repair Manual For Manitou Gehl Telehandler. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 204
Number: 647781EN (january 2019)
Bookmarks
Searchable
Wiring Diagrams
Hydraulic Diagrams

Model

Manitou Telehandler
MT420H 57K ST5 S1
MT420H TSS 57K ST5 S1
RS4-14

Contents

-GENERAL, CHARACTERISTICS AND SAFETY
General Instructions And Safety Notice
General Characteristics And Specifications
General Location
General Control And Adjustment
-ENGINE
Engine Characteristics And Specification
Engine Circuits Flow Diagram
Engine Components Location
Engine Controls And Adjustments
Engine Removal – Refitting
Engine Troubleshooting
Specific Engine Tooling
-TRANSMISSION
Transmission Schematic Diagrams
Transmission Removal – Refit
Specific Transmission Tooling
-AXLE
Axle Control And Adjustment
-BRAKE
Brake Characteristics And Specifications
Brake Controls And Adjustment
Specific Brake Tooling
-BOOM
Boom Removal – Refit
-HYDRAULICS
Hydraulic Characteristics And Specifications
Hydraulic Schematic Diagrams
Hydraulic Component Locations
Hydraulics Removal – Refit
-ELECTRICITY
Electricity Characteristics And Specifications
Wiring Diagrams
Electricity Locations
Electrical Troubleshooting
Specific Electric Tooling
-DRIVER’S CAB
Driver’s Cab Control And Adjustment
Driver’s Cab Removal – Refit
-OPTIONS-ATTACHMENTS
Air Conditioning Characteristics And Specifications
Air Conditioning Controls And Adjustments
Air-Conditioning Troubleshooting

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.
