Factory Parts Manual For Manitou Forklift. Detailed Illustrations and Parts Lists.
Format PDF
Language English
Pages: 143
Number: B365 (december 2007)
Searchable
Parts List

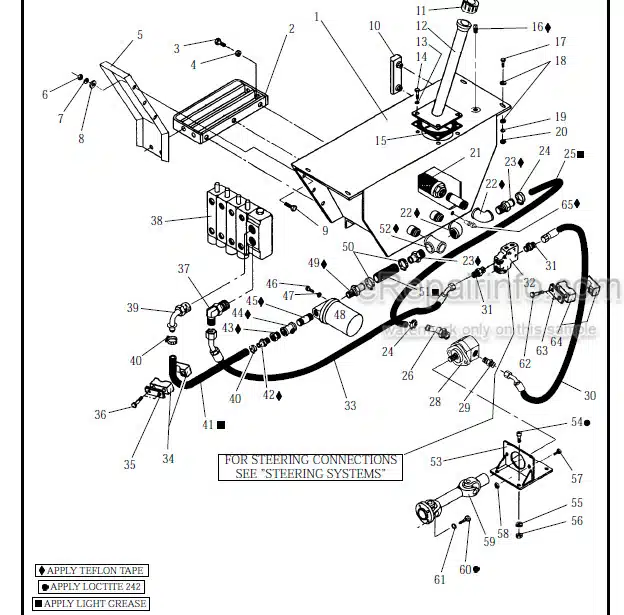

Parts Exploded View
Wiring Diagrams
Model
Manitou Forklift
M2-30 H P C PS
M2-30 H P C P
M2-30 H P C PL
M2-30 H P C PXL
Hydro-Hawk Hydrostatic Transmission
S/N: M230H0251 And Above
S/N: 165043 thru 181963 (except 170493 & 170514)
Contents
Accelerator Pedal
Air Filter & Pre-Cleaner Assembly
Air Intake & Filtering
Backup Alarm & Rotating Beacons
Battery & Cables
Brake Disc Assemblies
Brake Light & Turn Signal Kit
Brake Pedal Assembly
Cab & Mounting
Cab, Enclosed
Cab, Front Guard & Mirrors
Cab, Semi-Enclosed
Counter Weights
Cylinders, Tilt & Side Shift Assemblies
Dash Panel
Decals
Drive Train Component ID
Electrical, Wiring Harness
Electrical, Wiring Schematic
Engine & Mountings
Exhaust Systems
Filter Chart
Forward/Reverse Lever
Frame, Rear Fenders & Skid Plate
Front Axle & Mounting Assembly
Front Axle Casing Assembly
Front Axle Diff Lock Assembly
Front Axle Differential Assembly
Front Axle Drive Shaft Assembly
Front Axle Lateral Case Assembly
Fuel Injection Pump & Plumbing
Fuel Tank Pump & Filtering System
General Info
Heater & Fan
Hood & Firewall
Hydraulic Control Valve & Levers
Hydraulic Control Valve Assembly
Hydraulic Return Line, Mast
Hydraulic Tank, Pump & Valves
Hydraulics, Tilt & Side Shift
Hydrostatic Motor, Gearbox & Drive Shaft
Hydrostatic Pump, Engine Mounting
Hydrostatic Pump Valve Bank
Hydrostatic Schematic
Instrument Panel
Lighting Assemblies
Mast Capacity Chart
Mast Side Shift Mounting
Model Description Page
Park Brake Lever Assembly
Radiator, Engine/Trans Cooling
Seat & Seat Belt Assemblies
Starter Motor & Cooling Fan
Steering Axle & Support
Steering Axle Assembly
Steering Axle Cylinder
Steering Hydraulics
Tachometer (Optional)
Tires & Wheels
Transfer Case, Gearbox
Water Temp Sender, Misc Engine Components
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
Reviews
There are no reviews yet
