Factory Parts Catalog For Manitou Forklift. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 98
Issue: april 2016
Searchable: Yes

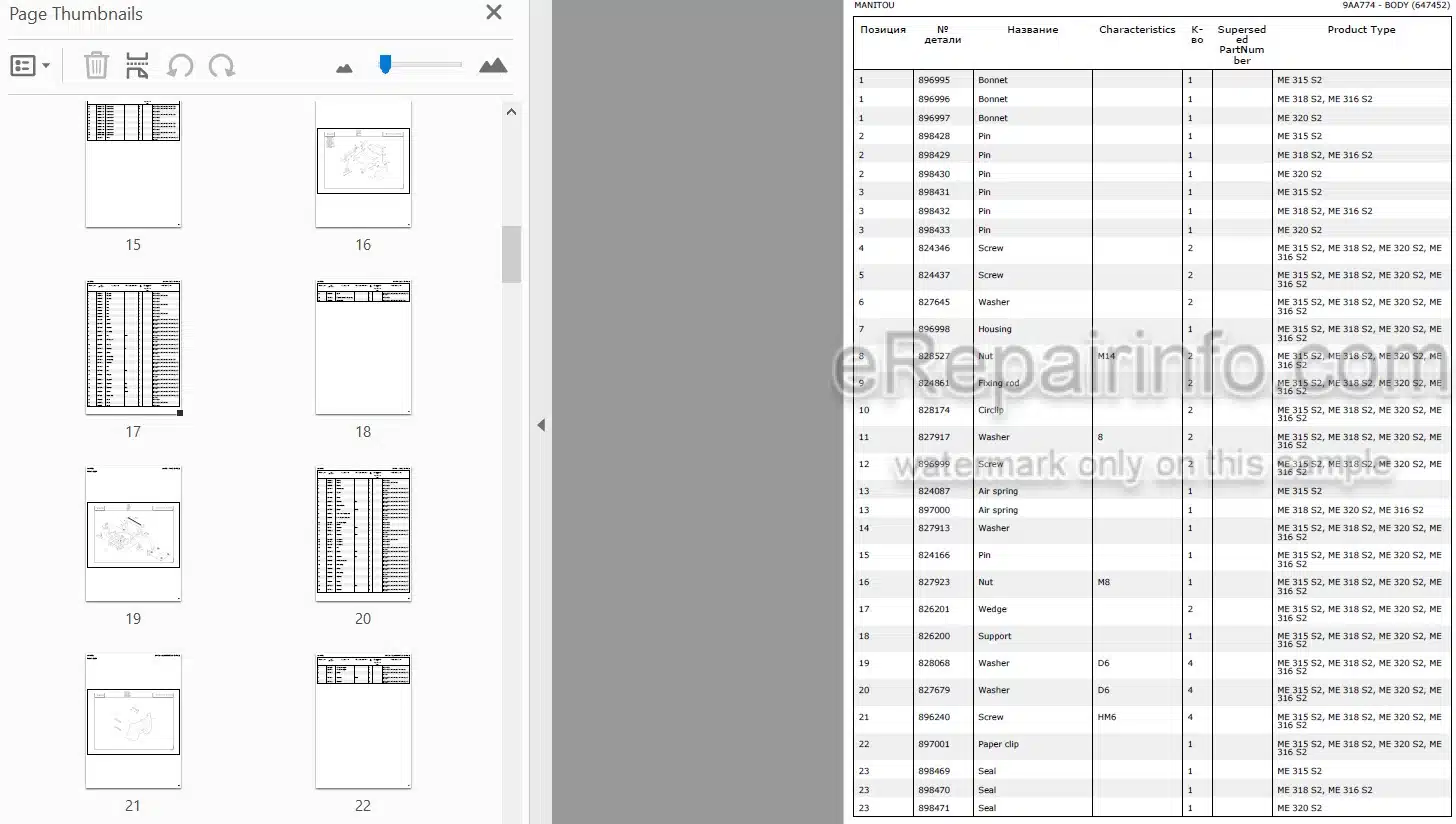

Parts List: Yes
Parts Exploded View: Yes
Model
Manitou Forklift
ME315 48V S2
ME316 48V S2
ME318 48V S2
ME320 48V S2
Contents
-GENERAL INSTRUCTIONS AND SAFETY NOTICE

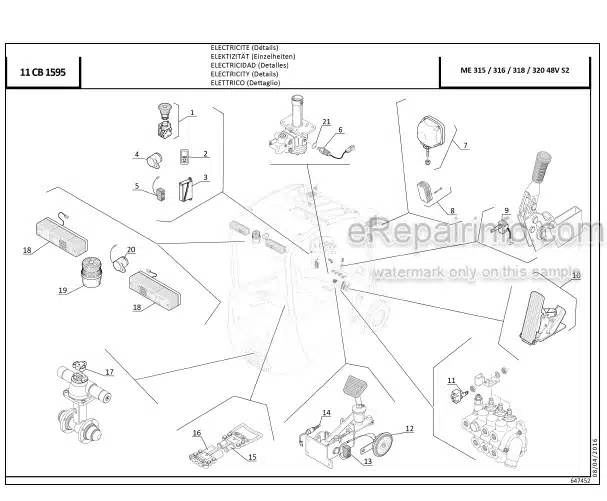

Adhesive Signs
-FRAME – BODY
Frame
Body
Counterweight
-ELECTRICITY
Electric Circuit
-AXLE ASSEMBLY – AXLE
Rear Axle
Front Transmission Adaptation
Wheels
-HYDRAULIC
Circuit
Valve Bank
Ram
-PEDALS
Brake Circuit
Pedals – Linkage
-DRIVER CAB
Cab Structure
Protector Adaptation
Driver’s Overhead Guard
Seat
-TRANSMISSION
Hydrostatic Motor
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
