Manitou MLT523 MLT526 Turbo Serie C 2 Parts Catalog Telescopic Handler manuals in PDF

Factory Parts Catalog For Manitou Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 274
Issue: november 2015

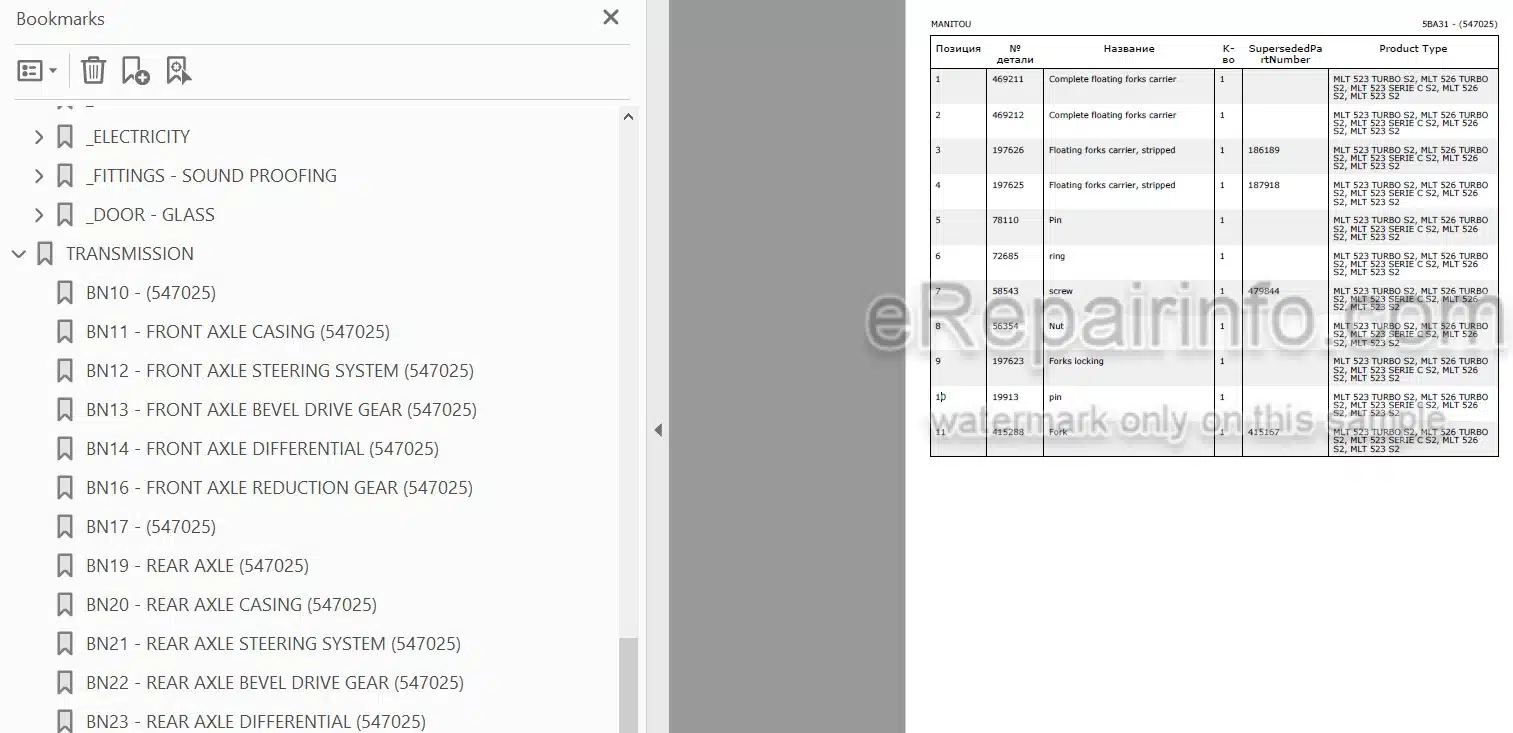

Bookmarks: Yes
Searchable: Yes

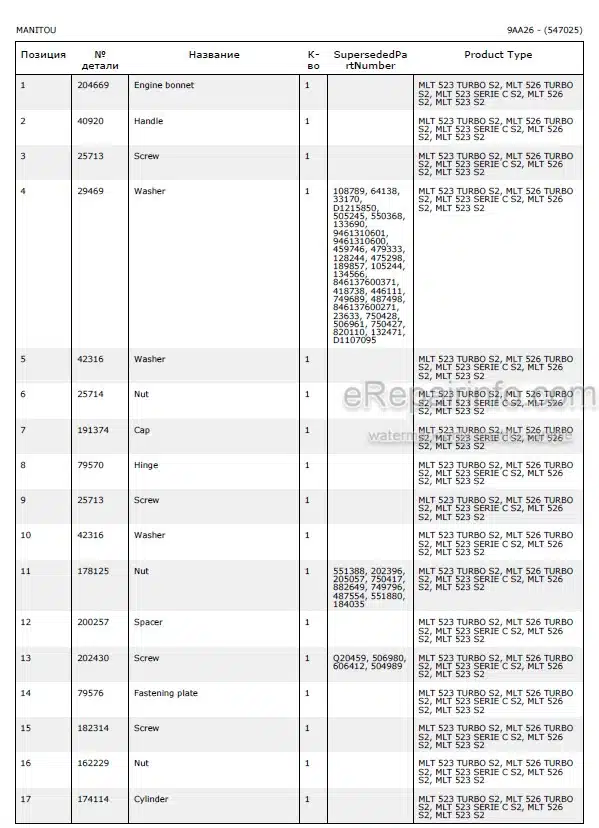

Parts List: Yes
Parts Exploded View: Yes

Model

Manitou Telescopic Handler
MLT523 Turbo S2
MLT526 Turbo S2
MLT523 Serie C S2
MLT526 S2
MLT523 S2

Contents

-GENERAL INSTRUCTIONS AND SAFETY NOTICE
Adhesive Signs
-OPTIONS – ACCESSORIES

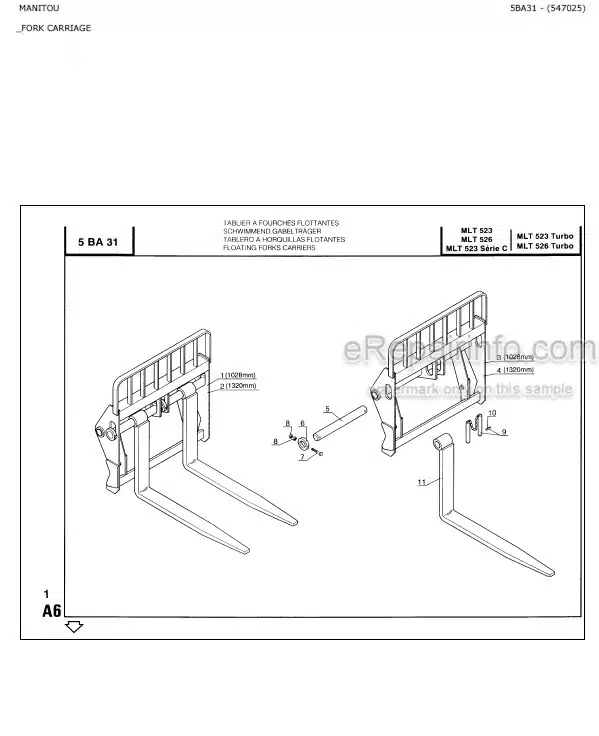

Fork Carriage
-FRAME – BODY
Counterweight
Tank
-ELECTRICITY
Electricity (Instrument Panel)
Circuit – Harness
Lighting – Signaling
Switch
-AXLE ASSEMBLY-AXLE
Rear
Front
Wheels
-HYDRAULIC
Circuit
Detail
Valve Bank
Pump
Tank
Ram
-TELESCOPIC BOOM
Attachment
Detail
Fork Carriage
-ENGINE
Turbocharger (Details)
Engine Unit
Complete
Timing Gear – Lubrication
Electricity
Filters-Belt
Intake System – Exhaust
Fuel Supply System
Electrical System
Cooling System
-PEDALS
Braking Circuit
Hand Brake
Linkage
-DRIVER CAB
Cab
Heater – Air Conditioning
Electricity
Fittings – Sound Proofing
Door – Glass
-TRANSMISSION
Front Axle Casing
Front Axle Steering System
Front Axle Bevel Drive Gear
Front Axle Differential
Front Axle Reduction Gear
Rear Axle
Rear Axle Casing
Rear Axle Steering System
Rear Axle Bevel Drive Gear
Rear Axle Differential
Propshaft
Transfer Box
Gear Box

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
