Manitou MLT523T MT620T Evolution SC E3 Parts Catalog Telescopic Handler manuals in PDF

Factory Parts Catalog For Manitou Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 216
Issue: december 2008

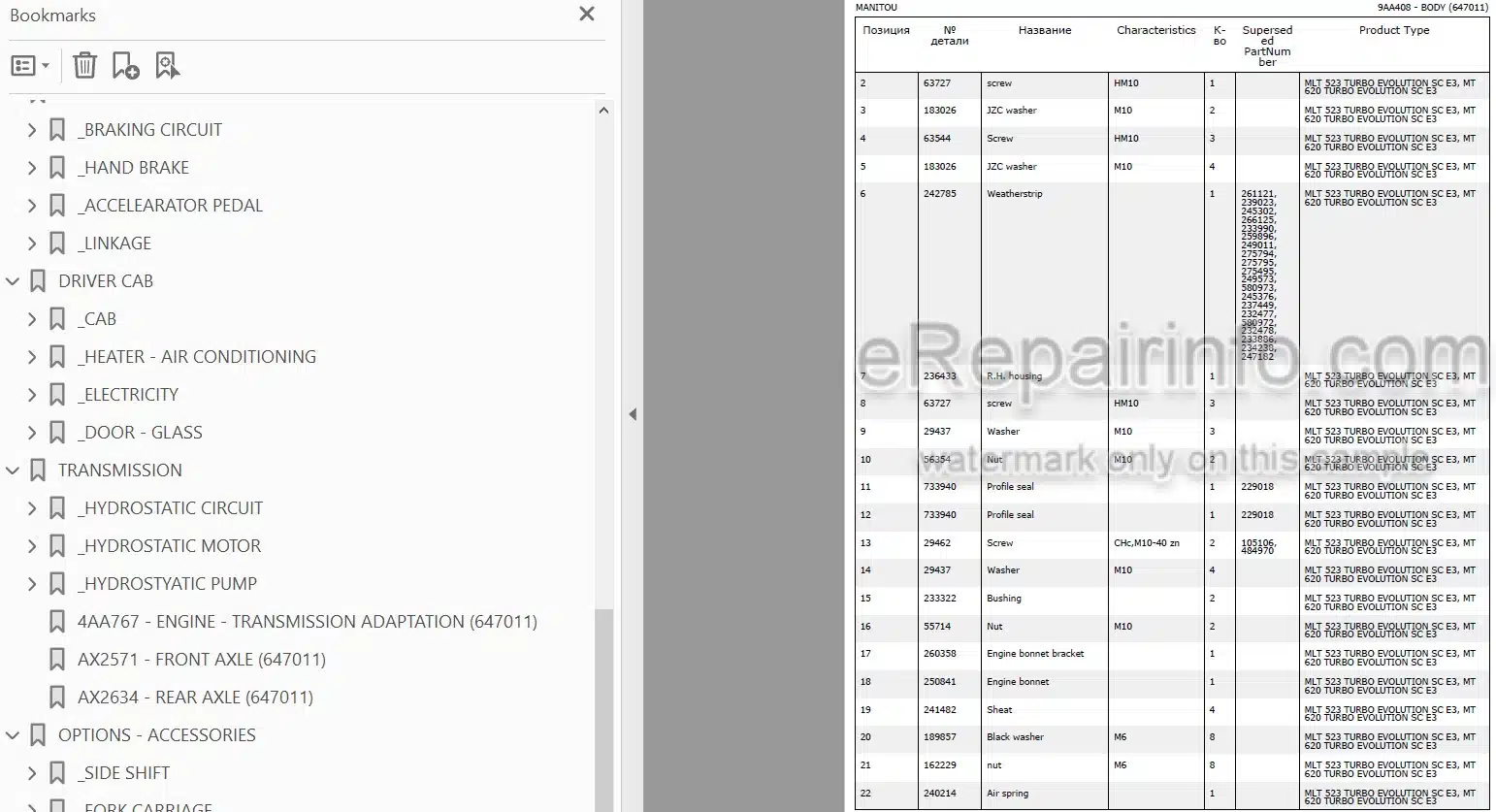

Bookmarks: Yes
Searchable: Yes

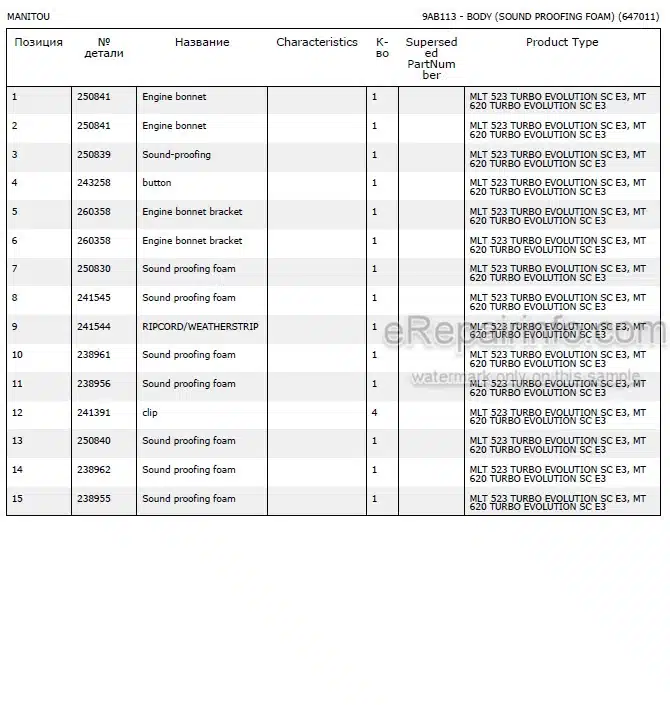

Parts List: Yes

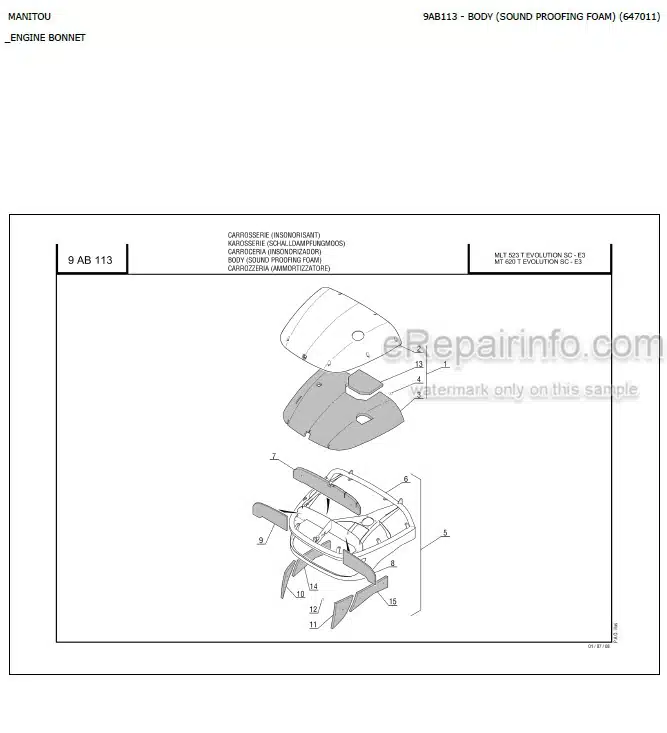

Parts Exploded View: Yes

Model

Manitou Telescopic Handler
MLT523T Evolution SC – E3
MT620T Evolution SC – E3

Contents

-GENERAL INSTRUCTIONS AND SAFETY NOTICE
Adhesive Signs
-FRAME – BODY
Engine Bonnet
Counterweight
Sound Proofing
Driver Cab
Tank
Exterior Rearview Mirror
Jib (Hose Compartment)
-ELECTRICITY
Circuit – Harness
Lighting – Signaling
Switch
Rear Plug
Safety System
Selector – Manipulator
Valve Bank
Electricity (Details)
Electricity (Engine – Transmission)
-AXLE ASSEMBLY-AXLE
Rear
Front
Wheels
-HYDRAULIC
Circuit
Detail
Valve Bank
Joystick
Pump
Tank
Ram
-TELESCOPIC BOOM
Attachment
Detail
Fork Carriage
-ENGINE
Engine Unit
Electricity
Filters-Belt
Intake System – Exhaust
Fuel Supply System
Electrical System
Cooling System
-PEDALS
Braking Circuit
Hand Brake
Accelerator Pedal
Linkage
-DRIVER CAB
Cab
Heater – Air Conditioning
Electricity
Door – Glass
-TRANSMISSION
Hydrostatic Circuit
Hydrostatic Motor
Hydrostatic Pump
Engine – Transmission Adaptation
Front Axle
Rear Axle
-OPTIONS – ACCESSORIES
Side Shift
Fork Carriage
