Manitou MLT630 MLT634 MLT731 MLT634-120LSU Turbo SC Parts Catalog Telescopic Handler manuals in PDF

Factory Parts Catalog For Manitou Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Quantity of Catalogs
Pages: 831; 869
Issue: march 2007; march 2007

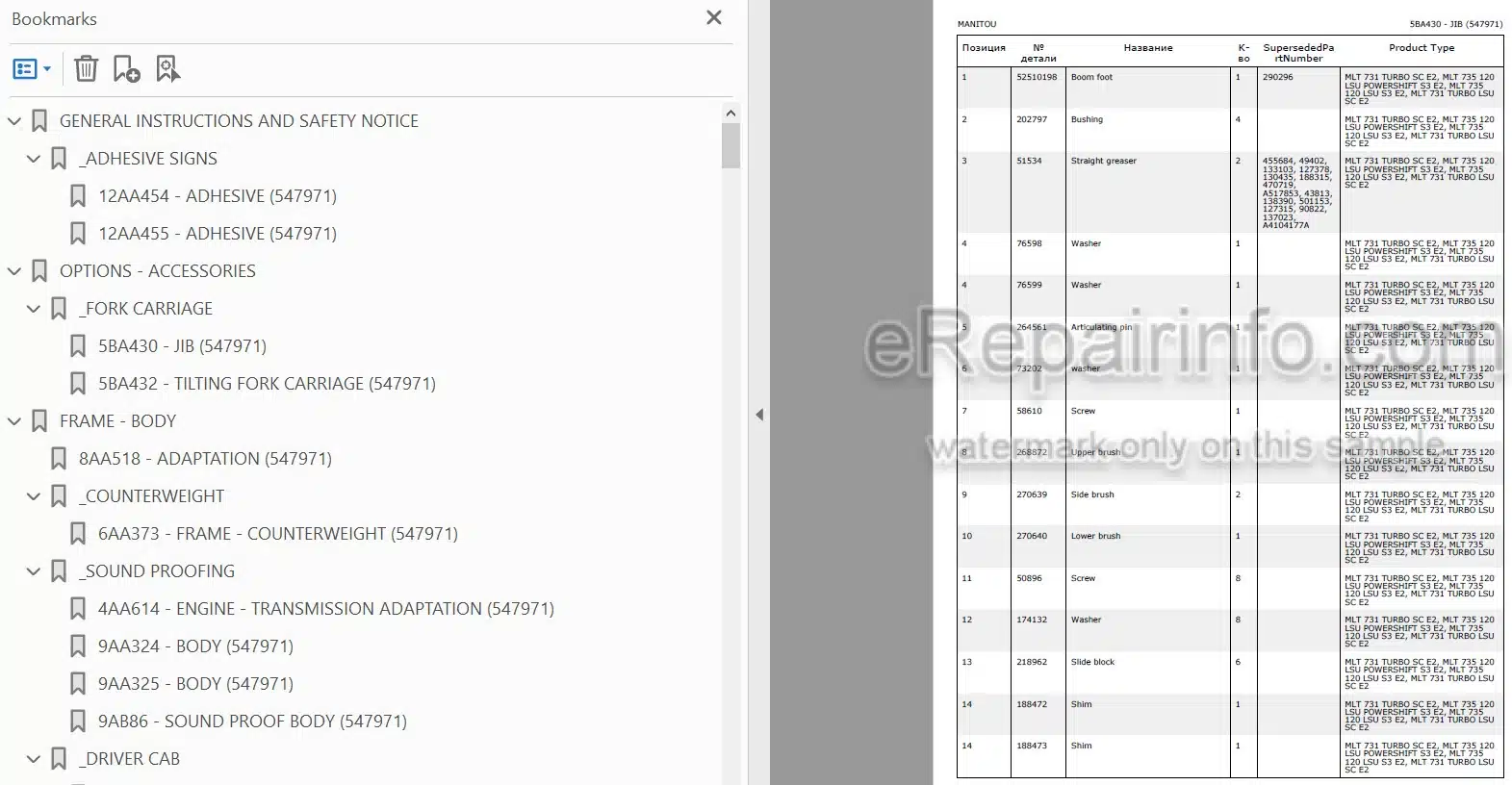

Bookmarks: Yes
Searchable: Yes

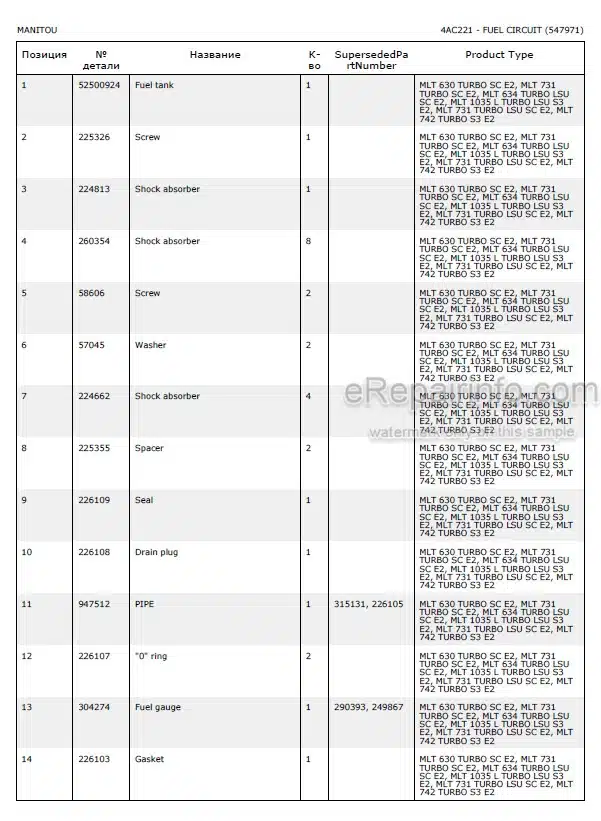

Parts List: Yes

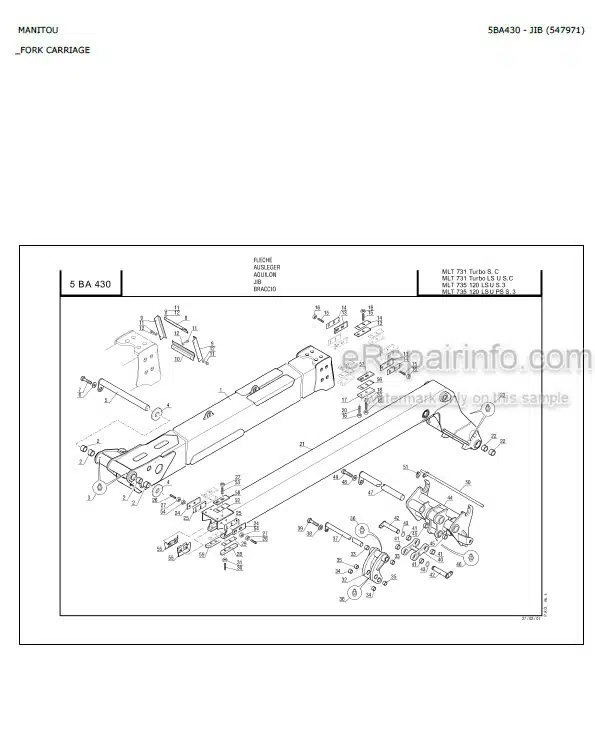

Parts Exploded View: Yes

Model

Manitou Telescopic Handler
MLT630 Turbo S.C
MLT731 Turbo S.C
MLT634 Turbo LS U S.C
MLT731 Turbo LS U S.C
MLT634-120LSU S.C
MLT634-120LSU PS S.C

Contents

-GENERAL INSTRUCTIONS AND SAFETY NOTICE
Adhesive Signs
-OPTIONS – ACCESSORIES
Fork Carriage
-FRAME – BODY
Engine – Transmission Adaptation
Adaptation
Counterweight
Sound Proofing
Driver Cab
Tank
-ELECTRICITY
Circuit – Harness
Lighting – Signaling
Switch
Rear Plug
Safety System
Selector – Manipulator
-AXLE ASSEMBLY-AXLE
Rear
Front
Wheels
-HYDRAULIC
Oil Bath Disc Brake – Rear Axle
Circuit
Detail
Valve Bank
Joystick
Pump
Tank
Ram
-TELESCOPIC BOOM
Attachment
Detail
Fork Carriage
-ENGINE
Turbocharger
Engine Unit
Timing Gear – Lubrication
Electricity
Filters-Belt
Intake System – Exhaust
Fuel Supply System
Electrical System
Cooling System
-PEDALS
Braking Circuit
Hand Brake
Linkage
-DRIVER CAB
Protection Grid Adaptation
Cab
Heater – Air Conditioning
Electricity
Fittings – Sound Proofing
Door – Glass
-TRANSMISSION
Rear Axle Casing
Rear Axle Differential
Oil Bath Disc Brake – Rear Axle
Rear Axle Steering System
Front Axle Casing
Front Axle Steering System
Lubrication
Front Axle
Rear Axle
Propshaft
Gear Box
Angle Return
