Manitou MLT740 MLT733H MLT740H MT1033H MT1030S MLT740-120 LSU PS Turbo Parts Catalog Telescopic Handler manuals in PDF

Factory Parts Catalog For Manitou Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 293
Issue: july 2002

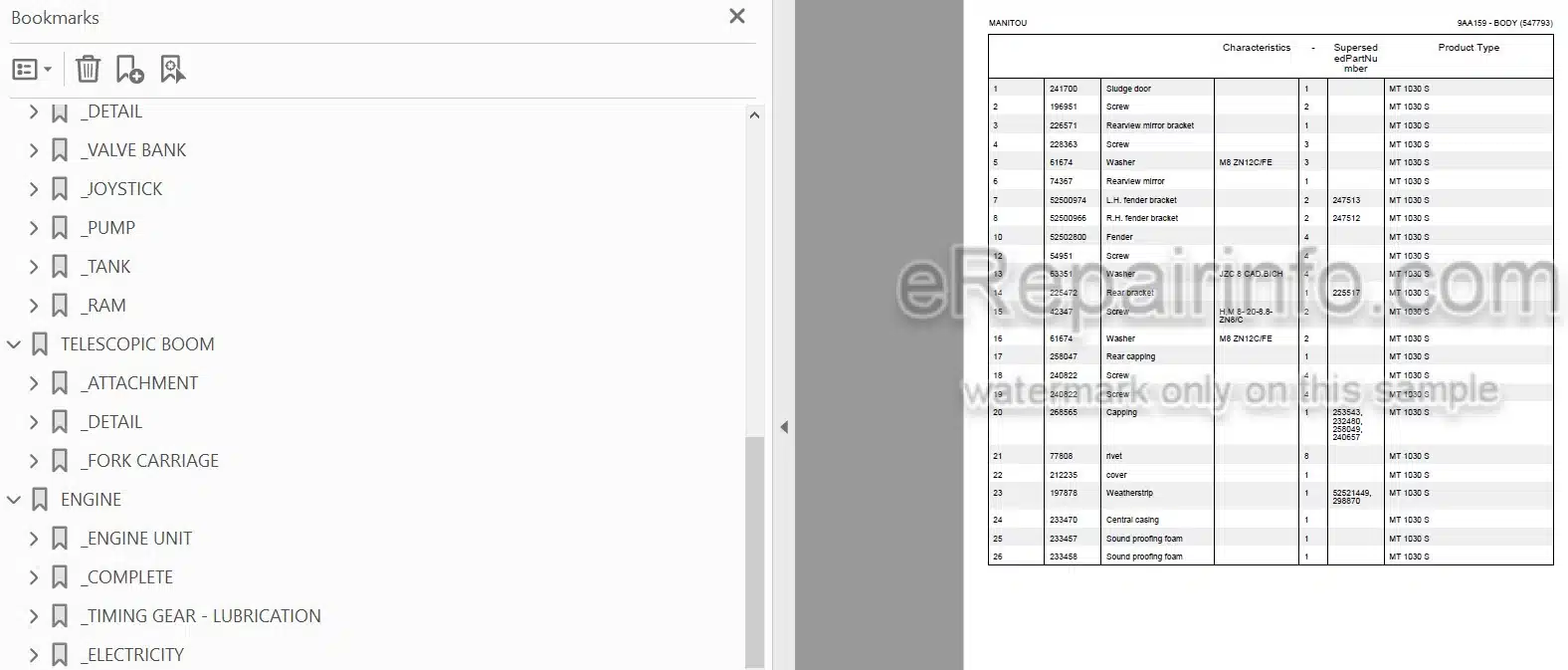

Bookmarks: Yes
Searchable: Yes

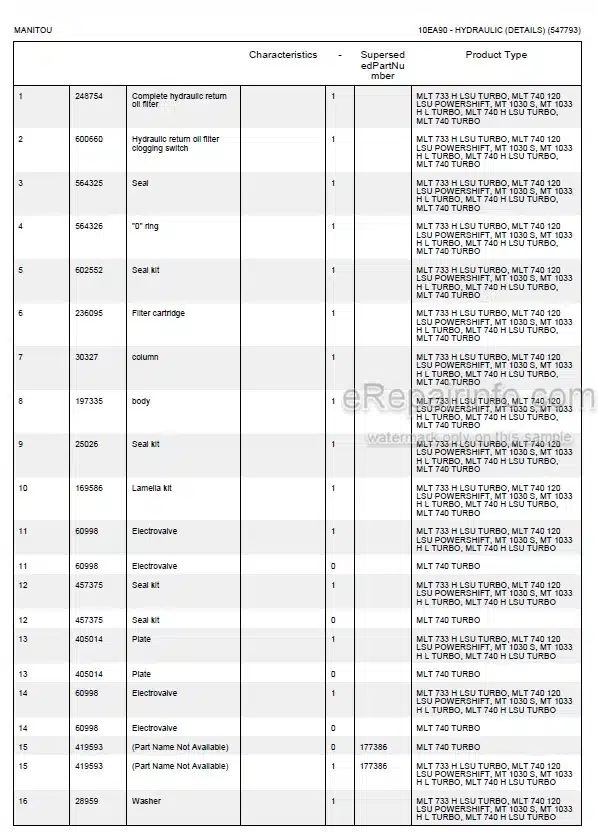

Parts List: Yes

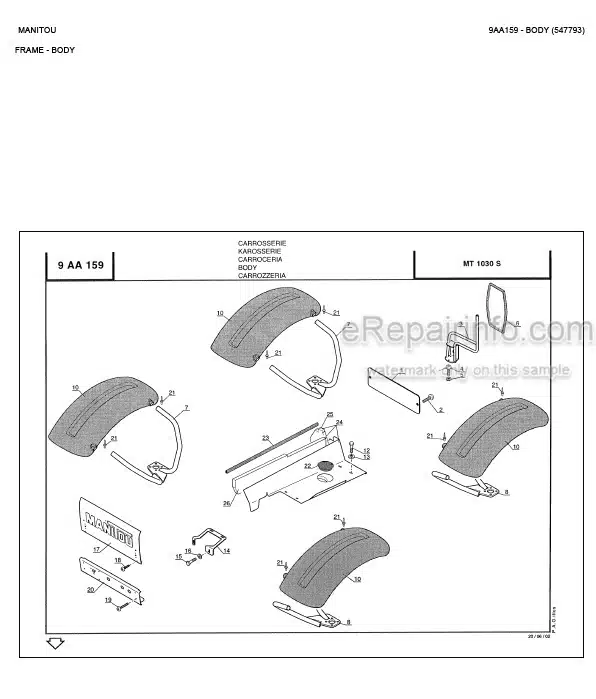

Parts Exploded View: Yes

Model

Manitou Telescopic Handler
MLT740 Turbo
MLT733H LSU Turbo
MLT740H LSU Turbo
MT1033H L Turbo
MT1030S
MLT740-120LSU PS

Contents

-GENERAL INSTRUCTIONS AND SAFETY NOTICE
Adhesive Signs
-OPTIONS – ACCESSORIES
Fork Carriage
-FRAME – BODY
Body
Counterweight
Sound Proofing
Tank
-ELECTRICITY
Hydraulic (Details)
Electricity (Engine – Transmission)
Cab (Details)
Timing Gear And Camshaft
Engine Adaptation
Circuit – Harness
Lighting – Signaling
Switch
Selector – Manipulator
-AXLE ASSEMBLY-AXLE
Rear
Front
Wheels
-HYDRAULIC
Oil Bath Disc Brake – Rear Axle
Circuit
Detail
Valve Bank
Joystick
Pump
Tank
Ram
-TELESCOPIC BOOM
Attachment
Detail
Fork Carriage
-ENGINE
Engine Unit
Complete
Timing Gear – Lubrication
Electricity
Filters-Belt
Intake System – Exhaust
Fuel Supply System
Electrical System
Cooling System
-PEDALS
Braking Circuit
Hand Brake
Linkage
-DRIVER CAB
Cab Adaptation
Cab
Heater – Air Conditioning
Electricity
Fittings – Sound Proofing
Door – Glass
-TRANSMISSION
Lubrification
Front Axle Casing
Front Axle Differential
Front Axle Reduction Gear
Oil Bath Disc Brake – Front Axle
Front Axle Steering System
Rear Axle Casing
Rear Axle Differential
Rear Axle Reduction Gear
Oil Bath Disc Brake – Rear Axle
Rear Axle Steering System
Rear Axle
Front Axle
Propshaft
Gear Box
Angle Return

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
