Manitou MLT741-100 MLT741-120 PS ST3B Parts Catalog Telescopic Handler manuals in PDF

Factory Parts Catalog For Manitou Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 450; 458
Issue: august 2015; august 2015

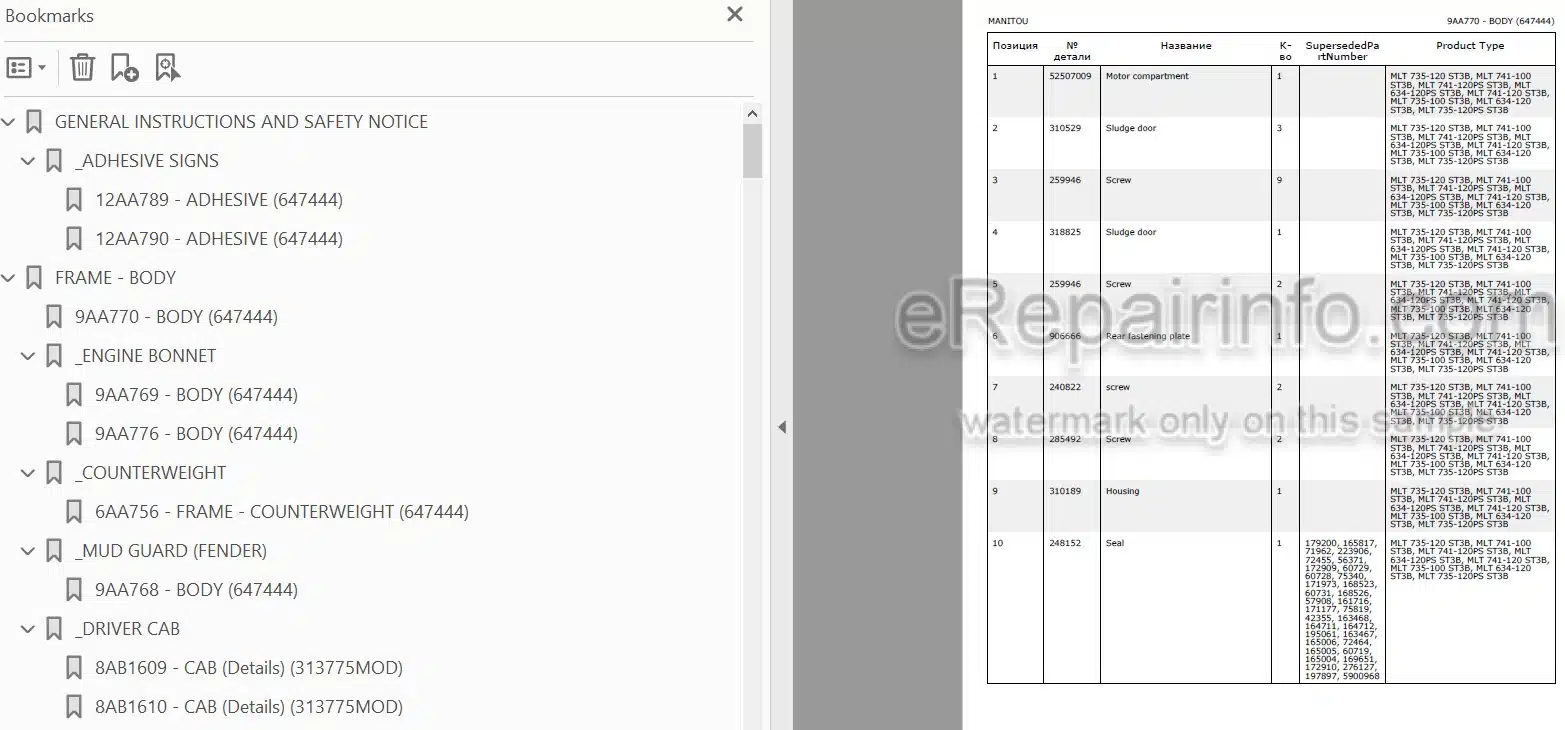

Bookmarks: Yes
Searchable: Yes
Parts List: Yes

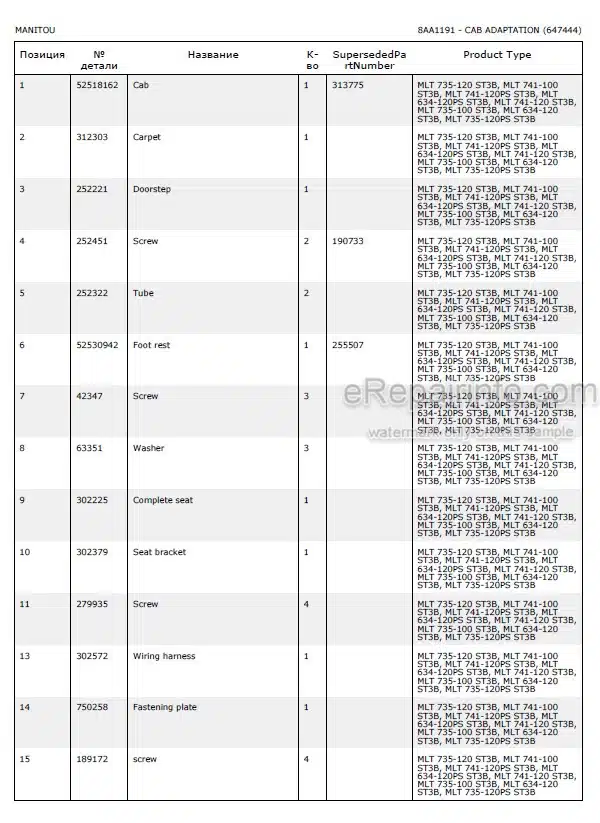

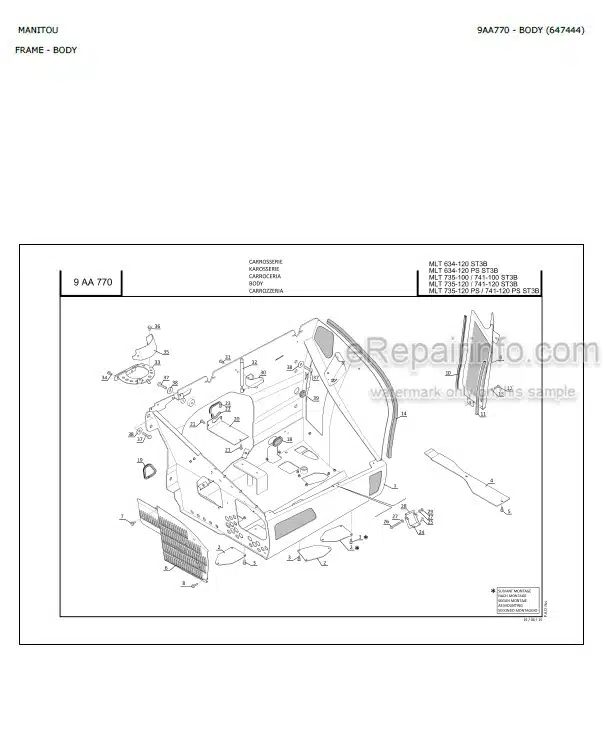

Parts Exploded View: Yes

Model

Manitou Telescopic Handler
MLT741-100 ST3B
MLT741-120 ST3B
MLT741-120PS ST3B

Contents

-GENERAL INSTRUCTIONS AND SAFETY NOTICE
Adhesive Signs
-FRAME – BODY
Body
Engine Bonnet
Counterweight
Mud Guard (Fender)
Driver Cab
Tank
Exterior Rearview Mirror
-ELECTRICITY
Engine Adaptation
Electronic Unit – ECU
Circuit – Harness
Lighting – Signaling
Switch
Rear Plug
Safety System
Selector – Manipulator
-AXLE ASSEMBLY-AXLE
Rear
Front
Wheels
-HYDRAULIC
Brake Circuit
Circuit
Detail
Valve Bank
Joystick
Pump
Tank
Ram
-TELESCOPIC BOOM
Detail
Fork Carriage
-ENGINE
Turbocharger
Engine Unit
Timing Gear – Lubrication
Electricity
Filters-Belt
Intake System – Exhaust
Fuel Supply System
Electrical System
Cooling System
-PEDALS
Braking Circuit
Hand Brake
Accelerator Pedal
Brake Pedal
Trailer
Linkage
-DRIVER CAB
Cab
Heater – Air Conditioning
Electricity
Fittings – Sound Proofing
Door – Glass
-TRANSMISSION
Propshaft
Gear Box
Angle Return
