Manitou MRT2540 E3 Privilege Parts Catalogue Telehandler 648401 manuals in PDF

$9.95

Factory Parts Manual For Manitou Telehandler. Detailed Illustrations and Parts Lists.

Photo 7 - Manitou MRT2540 E3 Privilege Parts Catalogue Telehandler 648401
Manitou MRT2540 E3 Privilege Parts Catalogue Telehandler 648401 $9.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Parts Manual For Manitou Telehandler. Detailed Illustrations and Parts Lists.

Format PDF
Language ENG; ITA; ESP; FRA; GER
Quantity of Catalogs: 2
Pages: 214; 198
Number: 648401 (july 2007)
Bookmarks
Searchable
Parts List

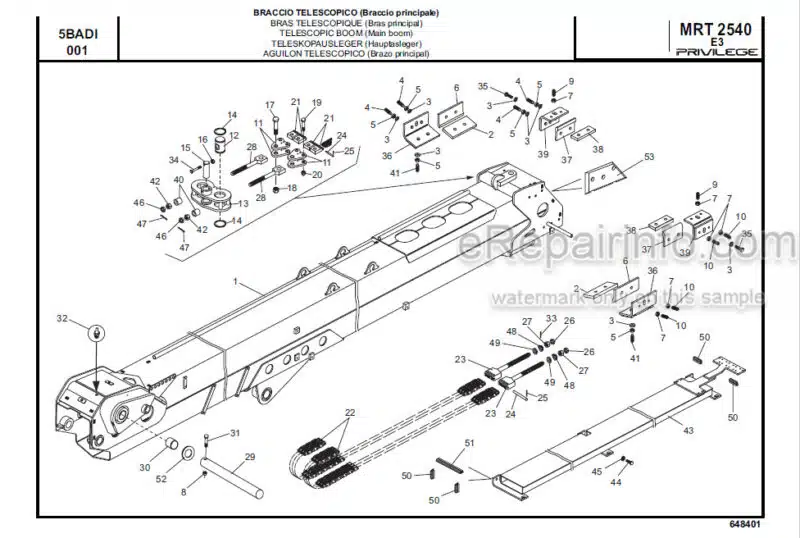

Parts Exploded View

Model

Manitou Telehandler
MRT 2540 E3 Privilege

Contents

-ACCESSORIES
Basket Pre-Installation
G.S.S.
Turbo II Filter
-REAR AXLE LOCK
Hydraulic Lamp, Axle Lock
Hammer for Axle Lock
-ARMS
External Arm
Arm
T.S.
Hydraulic Lamp
Lifting Hammer
Compensation Hammer
Telescoping Hammer
Swivel Hammer
-CABIN
Cabin Fixing
Seat
Cabin
-HEATING
Heating System
Diffuser Circuit
-BODYWORK
Right Rearview Mirror
Chassis – Casing
Hoods – Casing
Mudguards
FILTERS
-ELECTRICAL SYSTEM
Fuel Level
Lights – Various
Micro – Battery – Various
Dashboard (Instruments)
Mercedes Control Unit
Level-Switch
Dashboard (Switches)
Derivation Box for Carriage
Fuse and Relay Box
Logic Box
Rotary Collector
Main Dashboard Wiring
Front Carriage Wiring
Rear Turret Wiring
Rear Carriage Wiring
Driver’s Seat Wiring
Engine Wiring
Main Fuse
-MAIN HYDRAULIC SYSTEM
Hydraulic Pump
Hydraulic System
Hydraulic Suction
Controllers
Distributor
Tank
NUMERICAL INDEX
-ROTATION
Turntable Bearing
Rotation Lock
Hydraulic Rotation System
Rotation Reducer
Rotation Motor
-STABILIZERS
Front Hydraulic Stabilizers
Rear Hydraulic Stabilizers
Stabilizer Arms
Incline Stabilizer Hammer
Telescoping Stabilizer Hammer
-LABELS
Diagram Booklet
Labels
-TURRET
Turret – Counterweight
Turret Lateral Hood
-TRANSMISSION
Wheels
Alternative Wheels
Muffler
Engine Assembly
Hydraulic Transmission System
Hydraulic Fan System
Oil Radiator
Water Radiator
Air Radiator
Fuel Pipes
Air Circuit
Water Circuit
Accelerator and Brake
Brake Pump
Hydraulic Brake and Gear System
Air Filter
Hydraulic Gear System
Hydraulic Steering System
Steering Control
Cardan Shaft
Hydrostatic Pump
Hydrostatic Motor
Rear Axle Fixing
Engine
Axles
-LEVELING
Hydraulic Leveling System
Leveling Hammer
