Manitou MT1740SL MT1740SL Turbo S2 Parts Catalog Telescopic Handler manuals in PDF

Factory Parts Catalog For Manitou Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 254
Issue: july 2002
Bookmarks: Yes
Searchable: Yes
Parts List: Yes

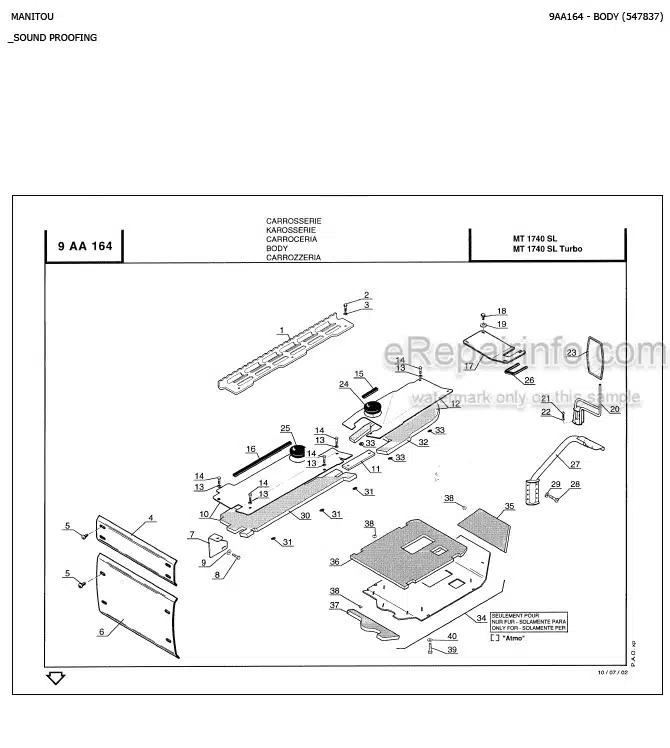

Parts Exploded View: Yes

Model

Manitou Telescopic Handler
MT1740SL
MT1740SL Turbo

Contents

-GENERAL INSTRUCTIONS AND SAFETY NOTICE
Adhesive Signs
-FRAME – BODY
Body
Counterweight
Sound Proofing
Tank
Stabilizer
-ELECTRICITY
Circuit – Harness
Lighting – Signaling
Safety System
Selector – Manipulator
-AXLE ASSEMBLY-AXLE
Rear
Front
Wheels
-HYDRAULIC
Oil Bath Disc Brake – Front Axle
Oil Bath Disc Brake – Rear Axle
Circuit
Detail
Valve Bank
Pump
Tank
Ram
-TELESCOPIC BOOM
Detail
Fork Carriage
-ENGINE
Turbocharger (Details)
Engine Unit
Complete
Timing Gear – Lubrication
Electricity
Filters-Belt
Intake System – Exhaust
Fuel Supply System
Electrical System
Cooling System
-PEDALS
Braking Circuit
Hand Brake
Linkage
-DRIVER CAB
Cab Adaptation
Cab
Heater – Air Conditioning
Electricity
Fittings – Sound Proofing
Door – Glass
-TRANSMISSION
Front Axle Casing
Front Axle Differential
Oil Bath Disc Brake – Front Axle
Front Axle Steering System
Rear Axle Casing
Rear Axle Differential
Oil Bath Disc Brake – Rear Axle
Rear Axle Steering System
Front Axle
Rear Axle
Propshaft
Gear Box
Angle Return

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
