McCormick ZTX230 ZTX260 ZTX280 Parts Catalog Tractor manuals in PDF

Factory Parts Catalog For McCormick Tractor. Detailed Illustrations and Parts Lists.

Format: PDF (ZIP File)
Language: English
Searchable: Yes
Parts List: Yes

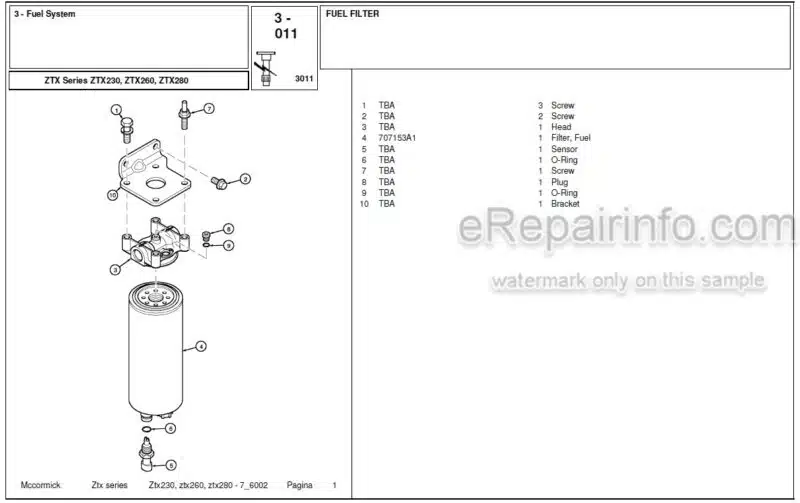

Parts Exploded View: Yes

Model

McCormick Tractor
ZTX230
ZTX260
ZTX280

Contents

-ATTACHMENTS
Automatic Hitch
Automatic Temperature Control
Cab
Cab Mountings
Control Console
Door
Drawbars
Front Fenders
Front Hitch
Front Weights
Headliner Trim
Heating Air Conditioning
Heating And Ventilation
Hood
Instrument Panel
Lift Links
Lower Lift
Mirrors
Rear Fenders
Rear Window
Roof Frame
Seat
Side Panels
Stabilizer
Trailer Hitch
Upper Link
Windshield
-BRAKES
Brake Pedals
Brake System
Hydraulic Trailer Brake
Parking Brake
Pneumatic Trailer Brake
-ELECTRICAL SYSTEM
Alternator
Control Console
Electrical Junction Blocks
Front Worklights
Ground Speed Sensor
Harness Control Console
Harness Engine
Harness Instrument Panel
Harness Rear Fender
Harness Roof
Harness Transmission
Instrument Panel
Lamp
Lamps
Rear Lights
Starter
Windscreen Washer
Windscreen Wiper
Work Lights
-ENGINE
Aftercooler
Air Cleaner
Air Conditioning
Camshaft
Compressor
Coolant Recovery System
Crankshaft
Cylinder Block
Engines
Fan Drive
Flywheel
Hoses
Manifolds Intake
Oil Filter
Oil Pump
Pistons
Radiator
Turbocharger
Valves
Vertical Exhaust
Water Pump
-FUEL SYSTEM
Electrical Control
Fuel Filter
Fuel Lines
Fuel Tank
Injection Pump
Lift Pump
Throttle Control
-HYDRAULICS LINKAGE
Brake Hydraulic Circuit
Dipstick Centre Housing
Front Hitch
Front Hitch Cylinder
Hydraulic Circuit
Hydraulic Couplings
Hydraulic Cover Right
Lift Distributor
Load Sensing
Pump
Remote Control Valve
Valve Assy
-POWERTRAIN
Brake System
Creep Speed Shifter
Electrical Control
Forward Neutral Reverse
Front Axle 4Wd
Front PTO
Gear Box Full Power
Inching Pedal
Independent PTO
Lift Arm
Lift Cylinder
Powershift
PTO Controls
PTO Drive
Rear Axle Centre Housing
Rear Axle Differential
Rear Axle Differential Lock
Rear Axle Intermediary Housing
Rear Wheels
Rear Wheels Weight
Short Rear Axle
-STEERING SYSTEM
Bevel Gear
Differential
Drive Shaft
Front Axle
Front Axle Housing
Front Axle Suspension
Front Wheels
Planetary Drive
Steering Cylinder
Steering Pipes
Steering Wheel
Suspension

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
