Factory Service Manual For Mitsubishi Engine For Forklift. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 218
Number: 99719-52120
Bookmarks: Yes
Wiring Diagrams: Yes
Model
Mitsubishi Engine For Forklift
4DQ5
Engine for FD15 Forklift
S4E
Engine for FD20, FD25, FD30 Forklift
S6E
Engine for FD35, FD40 Forklift
S6E2
Engine for FD50, FD60, FD70 Forklift
Contents
-GENERAL INFORMATION
Exterior Views
Nomenclature And Sectional Views

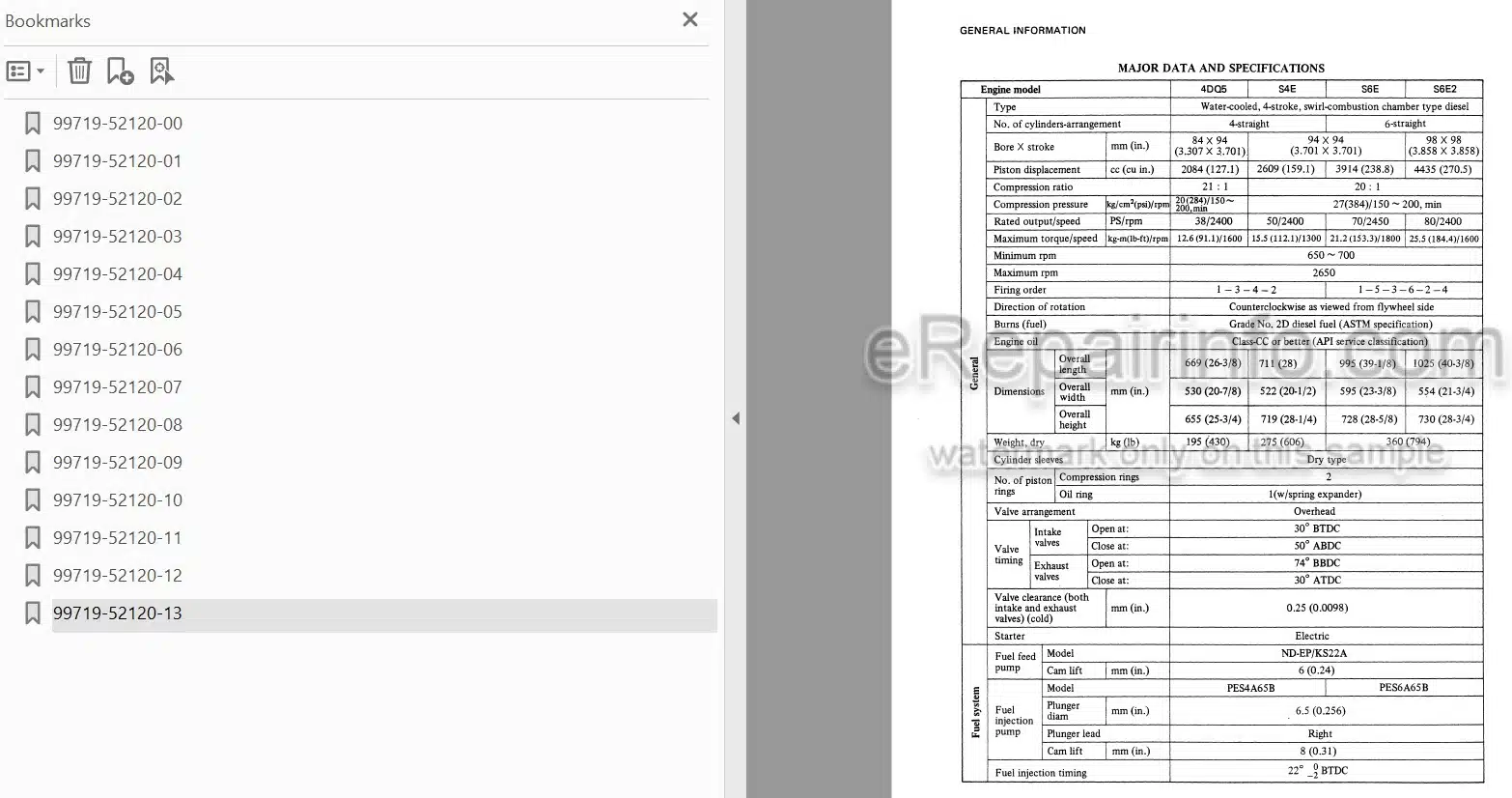

Major Data And Specifications
Performance Curves
Engine Serial Number Location
Tips On Disassembly And Reassembly
-CYLINDER HEAD AND VALVE MECHANISM
Description
Removal
Disassembly
Inspection And Repair
Reassembly
Installation
-CYLINDER SLEEVES, PISTONS AND CONNECTING RODS
Description
Removal
Disassembly
Inspection And Repair
Reassembly
Installation

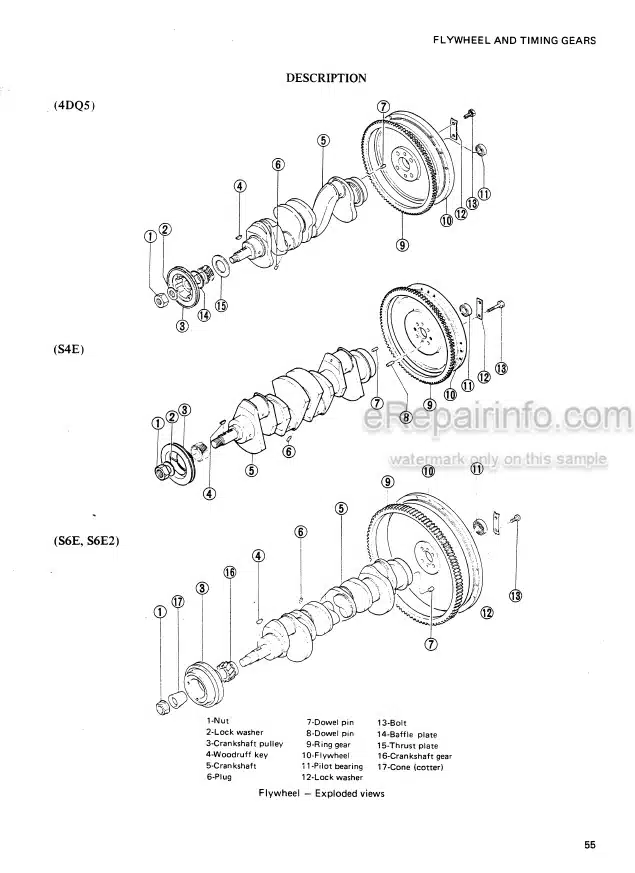

-FLYWHEEL AND TIMING GEARS
Description
Removal
Inspection And Repair
Installation
-CRANKCASE AND MAJOR RUNNING PARTS
Description
Disassembly
Inspection And Repair
Reassembly
-LUBRICATION SYSTEM
Description
Removal
Disassembly
Inspection And Repair
Reassembly
Installation
-FUEL SYSTEM
Description
Priming The Fuel System
Fuel Feed Pump
Fuel Filter
Fuel Injection Pump
Fuel Injection Nozzles
-OVERHAUL INSTRUCTIONS
When To Overhaul The Engine
Testing The Compression Pressure
Bench Test
Performance Tests
-SPECIAL SERVICE TOOLS
For Engine Proper Service
For Fuel Injection Pump Service
-SERVICE DATA
Service Data
Tightening Torque
Sealant Application Data
Troubleshooting Chart

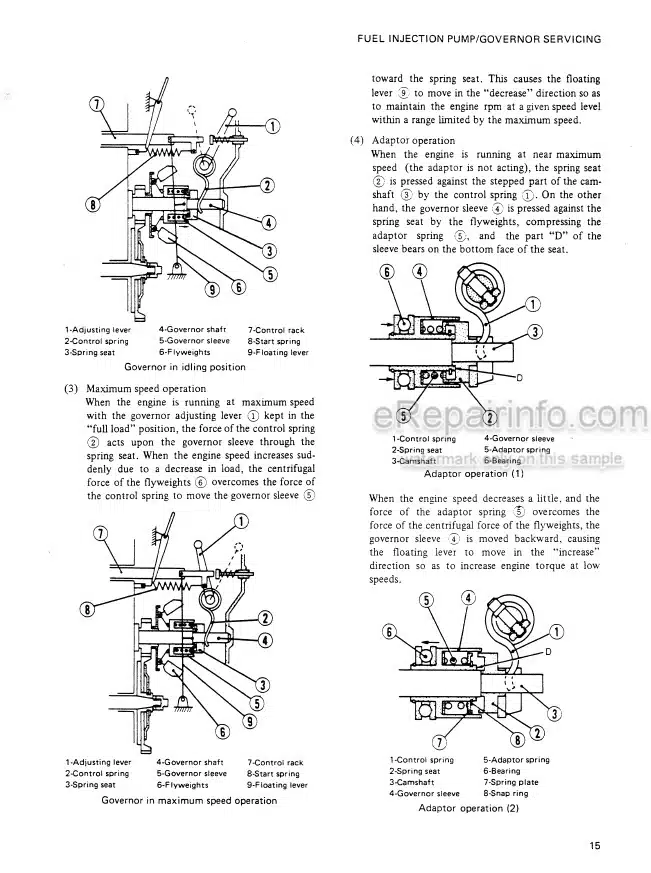

-FUEL INJECTION PUMP/GOVERNOR SERVICING
Fuel Injection Pump
RUV Governor For 4DQ5 Engine
RSV Governor For S4E, S6E And S6E2 Engines
Service Data
-ALTERNATOR/REGULATOR/STARTER/GLOW PLUG SERVICING
Description
Alternator
Regulator
Starter
Glow Plugs
Service Data
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
