New Holland 7030M 8030L Service Manual Grape Harvester 47922143 manuals in PDF

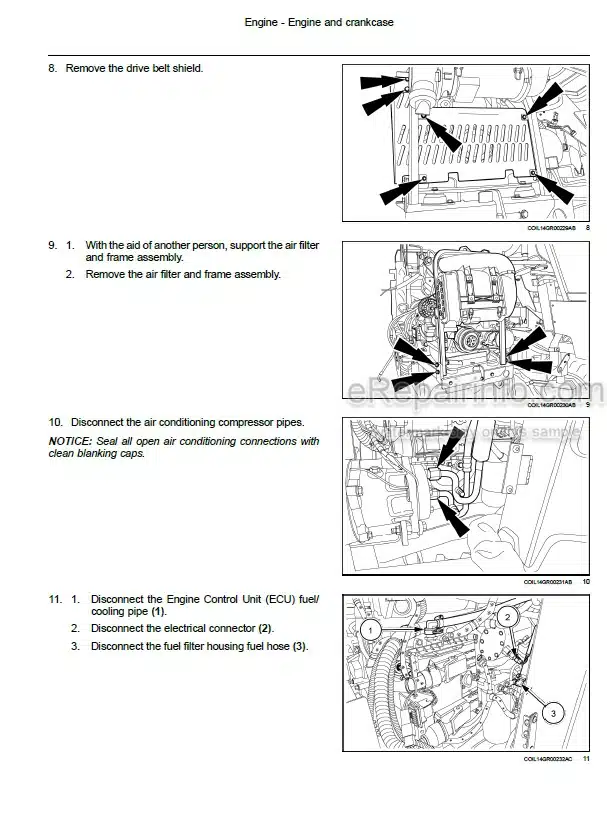

Factory Service Manual For New Holland 7030M, 8030L Grape Harvester. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 2755
Number: 47922143
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Grape Harvester

7030M
8030L

Contents

INTRODUCTION
-ENGINE
Engine And Crankcase
Fuel Tanks
Aftercooler
Engine Cooling System
Selective Catalytic Reduction (SCR) Exhaust Treatment
Intake And Exhaust Manifolds And Muffler
Fan And Drive
-REAR AXLE SYSTEM
Powered Rear Axle
-HYDROSTATIC DRIVE
Pump And Motor Components
Hydrostatic Transmission
Reservoir, Cooler, And Lines
-BRAKES AND CONTROLS
Hydraulic Service Brakes
-HYDRAULIC SYSTEMS
Hydraulic Systems
Fixed Displacement Pump
Reservoir, Cooler, And Filters
Frame Positioning Lifting
Sorting Table System
Fruit Repartition System
Harvesting Hopper Hydraulic System
Shaking Hydraulic System
Cleaning Hydraulic System
Destemmer System
Conveyor Receiver System
-FRAMES AND BALLASTING
Frame
-STEERING
Steering Control
Hydraulic Control Components
-WHEELS
Wheels
-CAB CLIMATE CONTROL
Heating
Air Conditioning
Cab Pressurizing System
-ELECTRICAL SYSTEMS
Electrical System
Heating, Ventilation, And Air-Conditioning (HVAC) Control System
Harnesses And Connectors
Electronic Modules
Cab Fruit Harvesting Controls
Shaking Control System
External Lighting
Warning Indicators, Alarms, And Instruments
Selective Catalytic Reduction (SCR) Electrical System
Battery
Chassis Harness
Engine Starting System
Fault Codes
-FRUIT HARVESTER SHAKING
Shaking Control
Connecting Rods, Front Plates, And Shakers
Adjustable Width System
-ATTACHMENTS/HEADERS
Attachment/Header Frame
-PRODUCT FEEDING
Fruit Harvester Conveyor Belts
Fruit Harvester Conveyor Frame
Noria
Noria Frame And Guides
-CLEANING
Upper Extractors
-SECONDARY CLEANING/DESTEMMER
Sorting Table (Opti-Grape™)
Destemmer
-CROP STORAGE / UNLOADING
Fruit Conveying System
-ACCESSORIES
Fruit Harvester Telescopic Arm
-PLATFORM, CAB, BODYWORK, AND DECALS
Machine Shields And Guards

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
